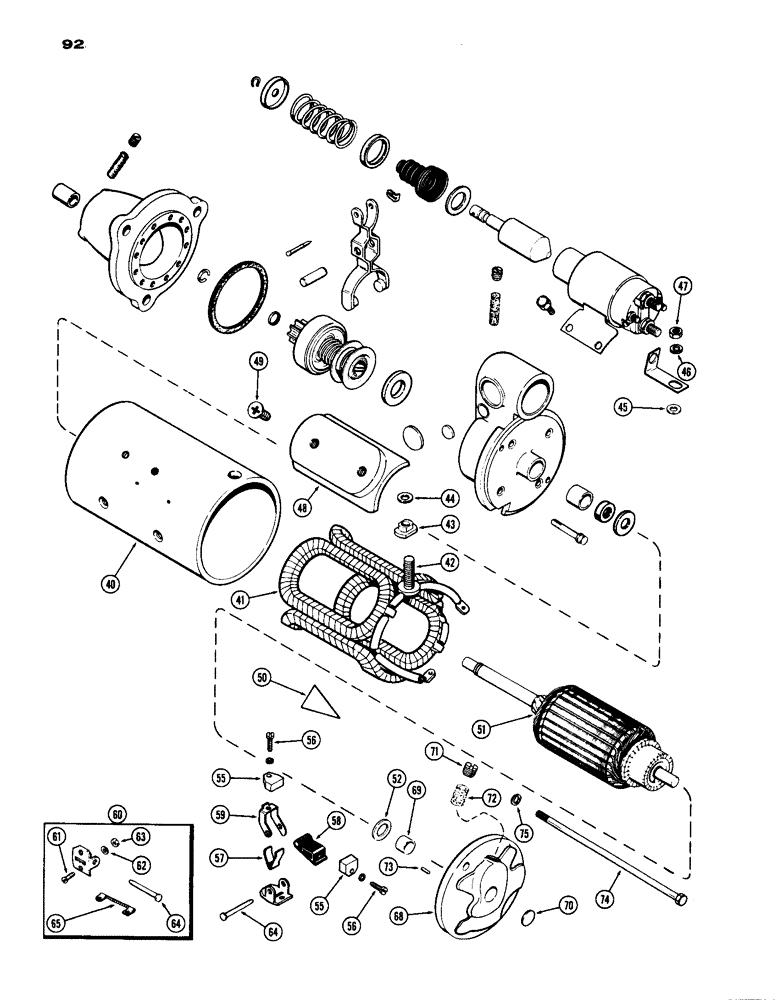

Запчасти Case IH 770 (092) - A59670 STARTER, (267B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS

A59670

MOTOR

STARTER ASSY. - continued from figure 90 (includes ref. 40 - 75) and 1 - 38 on Fig. 90

1шт.

40

NSS

NOT SOLD SEPARAT

BODY - starter (Order A59670)

1шт.

41

R21557

COIL ASSY.

COIL - ASSY. - field

1шт.

42

R15119

STUD - terminal

1шт.

43

R15010

BUSHING

- terminal stud

1шт.

44

A42010

WASHER

- insulated, stud

1шт.

45

R15013

WASHER

- plain, stud

1шт.

46

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Stud 3/8"

1шт.

47

R15014

NUT

- stud

1шт.

48

R15115

SHOE

- pole

4шт.

49

A42127

SCREW,3/8" - 24 x 0.20"

- pole shoe

4шт.

50

A41977

RUBBER INSULATOR

INSULATION - field

2шт.

51

A40800

ARMATURE

ASSY.

1шт.

52

A41917

WASHER,14.25mm ID x 24.89mm OD x 1.57mm Thk

- spacer, armature

1шт.

55

A20897

BRUSH, COMMUTATOR

BRUSH - starter

4шт.

56

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

SCREW - brush attaching

4шт.

57

R15025

SPRING

- brush

2шт.

58

R21590

HOLDER

- brush, insulated

2шт.

59

A40217

HOLDER

- brush, ground

2шт.

60

R15029

BRUSH

KIT - brush holder replacement (includes ref. 61 - 65)

1шт.

61

175-449

SCREW,Phil Truss Hd, #10 - 32 x 3/4"

- support attaching

2шт.

62

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

63

R15032

X

NUT - support

2шт.

64

R15035

PIN

- brush holder

1шт.

65

R15030

ELECTRICAL WIRE

LEAD - brush ground

2шт.

68

R15019

FUNNEL

FRAME ASSY. - commutator end (includes ref. 69 - 72)

1шт.

69

R15020

BUSHING

- frame, 9/16 x 11/16 x 25/32"

1шт.

70

R15021

PLUG

- expansion, frame

1шт.

71

221-1041

PLUG

- pipe, oil wick hole

1шт.

72

R15023

WICK

- oil

1шт.

73

R15041

PIN - dowel

1шт.

74

A25373

BOLT

- thru

2шт.

75

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.
