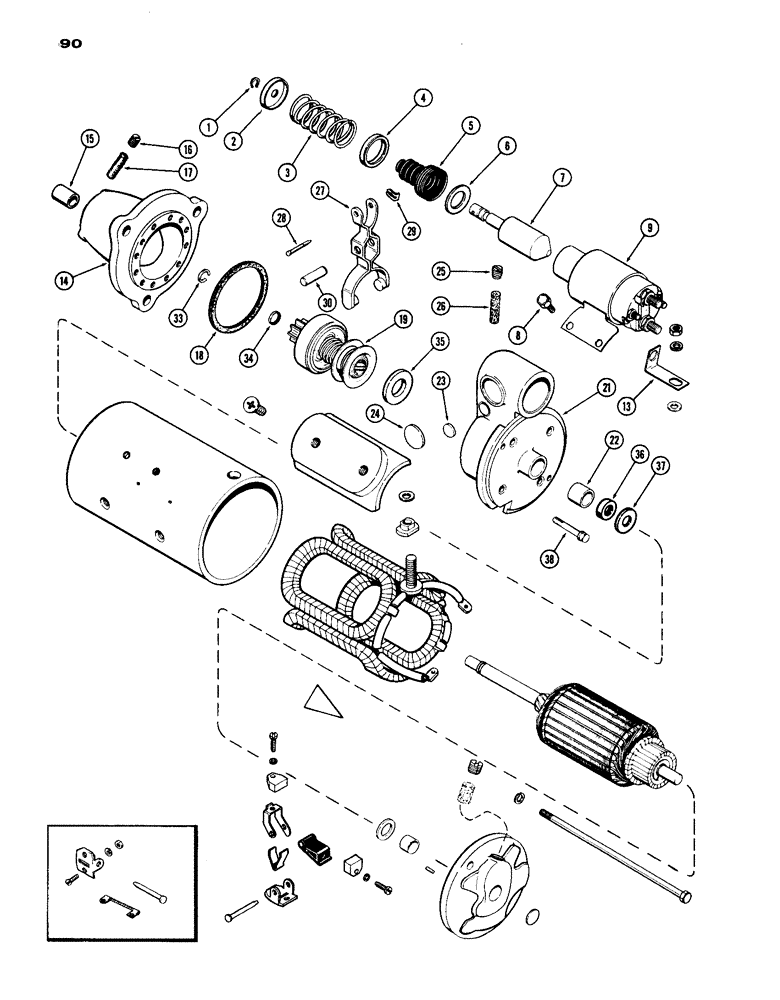

Запчасти Case IH 770 (090) - A59670 STARTER, (267B) DIESEL ENGINE (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A59670
MOTOR
STARTER ASSY. (Delco-Remy #1113688) (includes ref. 1 - 38) and 40 - 75 on Fig. 92
1шт.
1
G46146
SNAP RING,#37, Ext
RING, snap, , spring retaining #37, Ext
1шт.
2
R21572
RETAINER
RETAINER - spring
1шт.
3
A41242
SPRING
SPRING - plunger return
1шт.
4
R21571
RETAINER
RETAINER - spring
1шт.
5
A42308
BOOT
BOOT - dust, solenoid
1шт.
6
A42008
WASHER
WASHER - spring retainer
1шт.
7
A25394
PLUNGER
PLUNGER - solenoid
1шт.
8
R15067
SPARE PART SCREW - switch attaching
4шт.
9
A40461
IGNITION SWITCH
SWITCH ASSY. - solenoid (See Figure 96)
1шт.
13
A25370
CONNECTOR, ELEC
CONNECTOR CONNECTOR - switch
1шт.
14
A25347
SPARE PART HOUSING - drive (includes ref. 15, 16 & 17)
1шт.
15
A40868
BUSHING
BUSHING - drive housing, 9/16 x 3/4 x 3/4"
1шт.
16
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
17
R15023
WICK
WICK - oil
1шт.
18
A41508
GASKET
GASKET - drive housing to lever housing
1шт.
19
A25338
DRIVE
DRIVE ASSY. - starter
1шт.
19
87421542
REMAN-STARTER DRIVE
Drive Assy, Starter
1шт.
19
87421543
CORE-STARTER
Return Part Number
1шт.
21
A41243
SPARE PART HOUSING - lever (includes ref. 22 - 26)
1шт.
22
A40944
BUSHING
BUSHING - lever housing, 47/64 x 57/64 x 3/4"
1шт.
23
A42064
PLUG
PLUG - expansion, 1/2" dia.
1шт.
24
A42013
PLUG
PLUG - expansion, 1-3/16" dia.
1шт.
25
221-1041
PLUG
PLUG - pipe, oil wick hole
1шт.
26
A41417
WICK
WICK - oil
1шт.
27
A25398
LEVER
LEVER - shift
1шт.
28
A25400
PIN
PIN - lever, starter shifter
1шт.
29
A25406
OIL SEAL
RING - lever pin
1шт.
30
A25402
STUD
STUD - lever
1шт.
33
R15048
RING
RING - pinion stop retainer
1шт.
34
R15049
COLLAR
COLLAR - pinion stop
1шт.
35
R15043
WASHER
WASHER - brake, lever housing & drive
1шт.
36
A25407
OIL SEAL
SEAL - oil, lever housing, 21/32 x 1-3/8 x 25/64"
1шт.
37
A42202
WASHER
WASHER - spacer, lever housing & armature
1шт.
38
A42012
BOLT (SPREADER),5/16" x 2 13/32"
BOLT - lever housing to drive housing
4шт.
Выбрано товаров: 35
