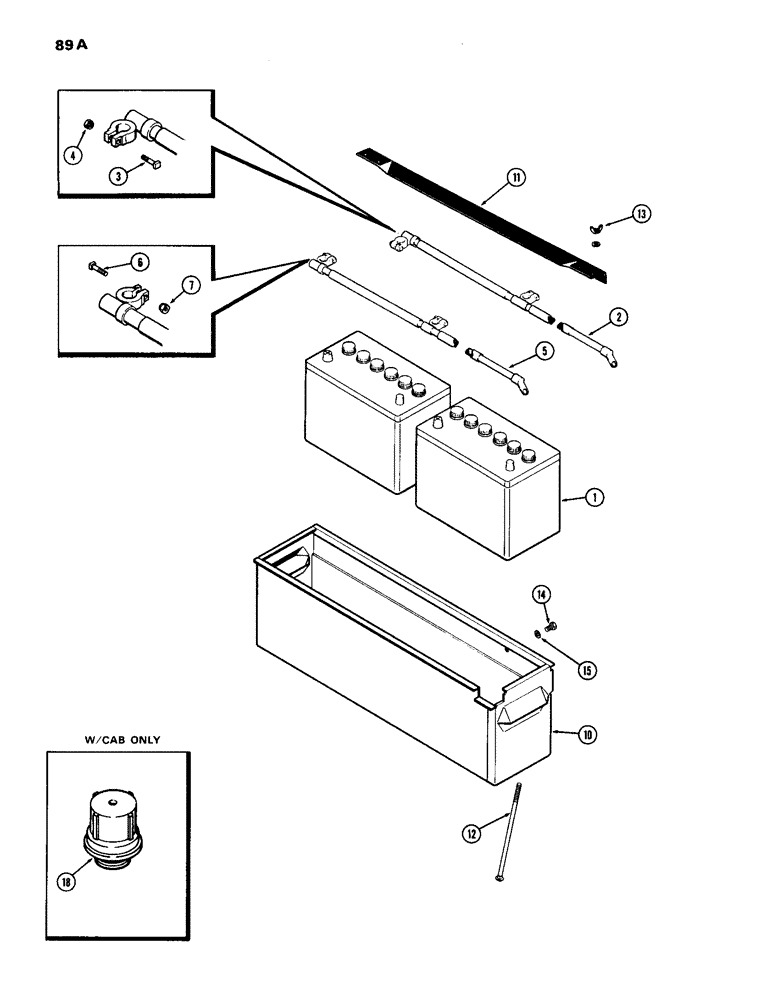

Запчасти Case IH 770 (089A) - BATTERY-CABLES-BATTERY BOX, (251B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A58559

BATTERY

- 12 volt

1шт.

2

A59677

CABLE - battery negative (ground) (includes ref. 3 & 4)

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd.

2шт.

4

129-516

NUT

- 5/16" N.C. hex

2шт.

5

A62140

CABLE

- battery positive (Replaces A59676) (includes ref. 6 & 7)

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd.

2шт.

7

129-516

NUT

- 5/16" N.C. hex

2шт.

10

A62137

BOX

ASSY. - battery (Replaces A59556)

1шт.

11

A59173

CLAMP

- battery hold down

1шт.

12

11-5160

BOLT

- battery hold down

2шт.

13

G49020

NUT

- 5/16" N.C. wing

2шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

18

A60553

CAP

- battery, non-spill vent

6шт.
