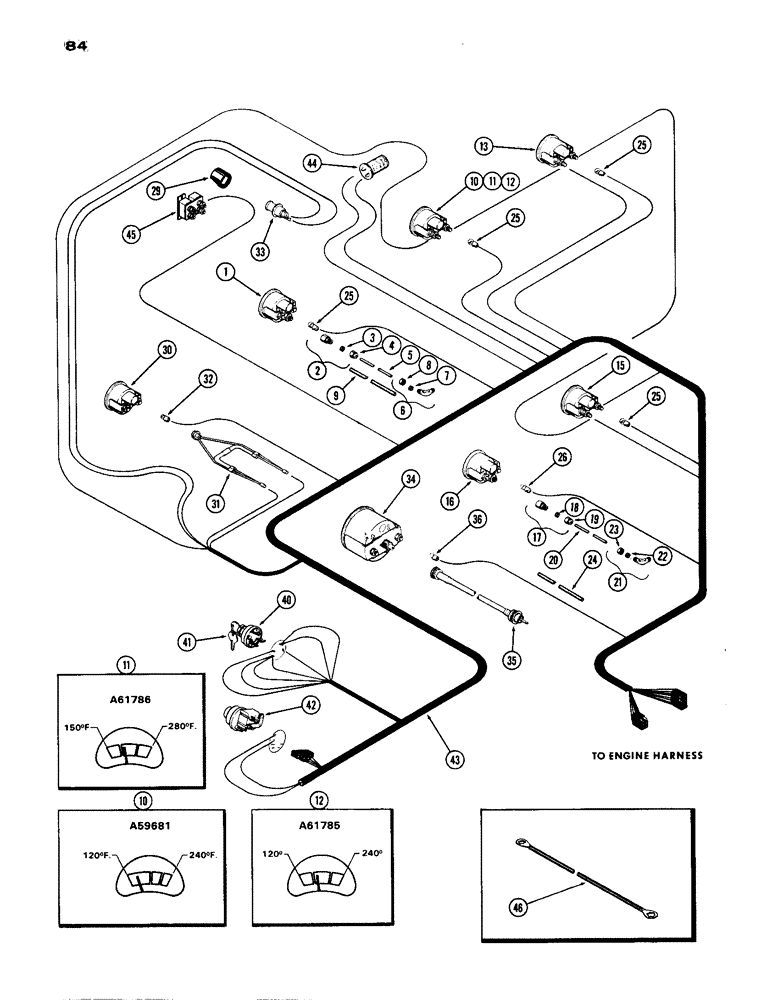

Запчасти Case IH 770 (084) - INSTRUMENTS AND WIRING, (251B) SPARK IGNITION ENGINE (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure (Replaces A59678)

1шт.

2

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8" P.T. (includes ref. 3 & 4)

1шт.

3

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

4

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

5

A59679

TUBE

- engine oil pressure

1шт.

6

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg. 1/8" tube, 1/8" P.T. (includes ref. 7 & 8)

1шт.

7

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

8

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

9

A59680

LOOM

- engine oil pressure tube

1шт.

10

A59681

GAUGE

- engine temperature (w/air conditioner) (used w/F13156 sending unit)

1шт.

Combinations are not interchangeable

1шт.

11

A61786

ELECTRICAL GAUGE

GAUGE - engine temperature (w/air conditioner) (used w/A61787 sending unit)

1шт.

Combinations are not interchangeable

1шт.

12

A61785

SPARE PART

GAUGE - engine temperature (w/o air conditioner) (used w/A61787 sending unit)

1шт.

Combinations are not interchangeable

1шт.

13

A59682

ELECTRICAL GAUGE

GAUGE - fuel

1шт.

15

A59683

GAUGE

- transmission temperature

1шт.

16

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure

1шт.

17

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR - 1/8" tube, 1/8 P.T. (includes ref. 18 & 19)

1шт.

18

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

19

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

20

A59685

TUBE

- trans. pressure gauge

1шт.

21

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 90 deg., 1/8" tube x 1/8" P.T. (includes ref. 22 & 23)

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - for 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - for 1/8" tube

1шт.

24

A59686

LOOM

- trans. pressure gauge tube

1шт.

25

A14553

BULB

- gauges (Replace T29381)

4шт.

26

A14553

BULB

- trans. pressure gauge (Replaces T29381)

1шт.

205-68

HOLE PLUG BUTTON,2 3/32"

PLUG - button (used w/mechanical shift, w/o PTO), 2-9/16"

1шт.

29

A62677

GUARD

SHROUD - hand brake warning lamp

1шт.

30

A59687

DIAL

CASE - alternator warning lamp

1шт.

31

A59688

SPRING

RECEPTACLE & WIRE - alt. warning lamp

1шт.

32

A14553

BULB

- alternator warning lamp (Replaces T29381)

1шт.

33

A59689

LAMP

- hand brake warning

1шт.

A42296

BULB

- 12V flasher (red)

1шт.

34

A62648

ELECTRICAL GAUGE

TACHOMETER ASSY. - (600 to 2200 RPM, green zone), Start Serial: 8675001

1шт.

34

A59690

TACHOMETER

ASSY. - (1400 to 2050 RPM, green zone), Serial Range: -8675001

1шт.

35

A59692

CABLE

- tachometer drive

1шт.

A24523

KIT

- tachometer cable repair

1шт.

36

A14553

BULB

- tachometer light (Replaces T29381)

1шт.

40

A59693

SWITCH

ASSY. - ignition & starting

1шт.

41

A60319

KEY

ASSY. - starting (Set of 2) (Replace A42212)

1шт.

42

A59694

SWITCH

ASSY. - lights (See Page 105B)

1шт.

43

A59705

HARNESS

- inst. panel wire

1шт.

44

NSS

NOT SOLD SEPARAT

FLASHER UNIT - 12 volt (See Figure 102)

1шт.

45

A59704

BREAKER

- circuit, 80 amp (See Figure 82)

1шт.

46

A60882

STRAP

- instrument panel grounding

1шт.
