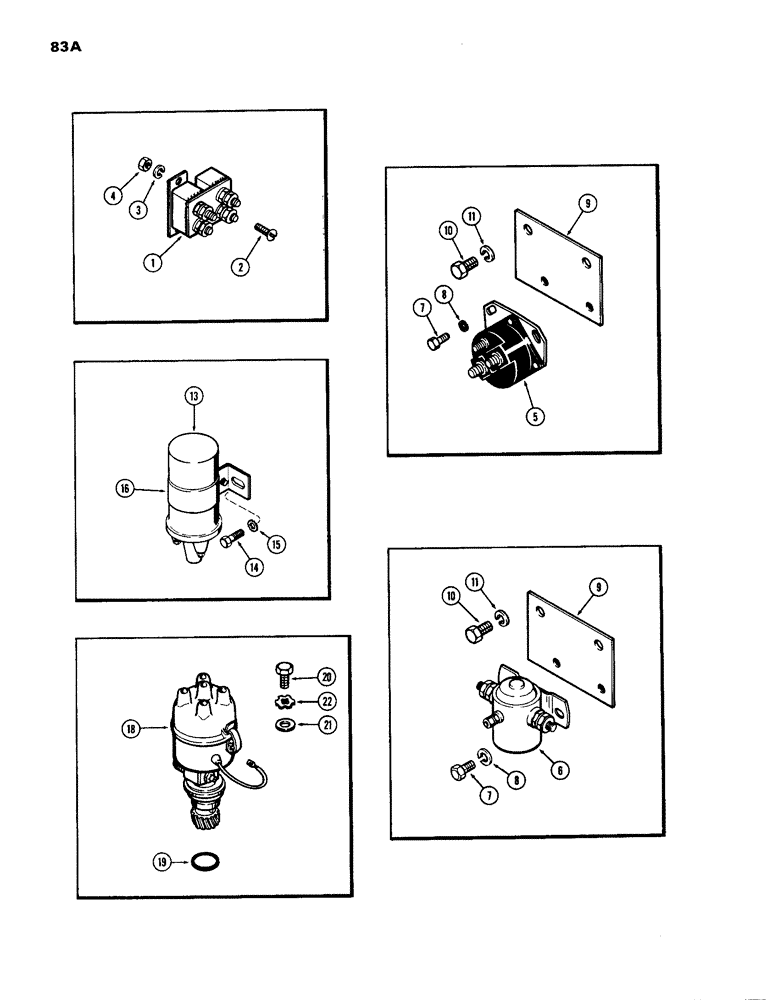

Запчасти Case IH 770 (083A) - ELECTRICAL EQUIPMENT MOUNTING, (267B) DIESEL & (251B) SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A59704

BREAKER

- circuit

1шт.

2

173-226

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

- #8 x 3/8" N.C. rd. hd.

2шт.

3

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

WASHER - lock, #8

2шт.

4

129-16

NUT,#8-32

2шт.

5

A39079

SOLENOID

- manifold heater, Start Serial: 8670718

1шт.

6

A57069

SOLENOID

- manifold heater, Serial Range: -8670718

1шт.

7

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

8

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

A60880

PLATE - heater solenoid to engine block

1шт.

10

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

11

92-5

LOCK WASHER,5/16"

2шт.

13

A40778

COIL

- 12 volt (Spark Ignition)

1шт.

14

173-252

SCREW,Sl Rnd Hd, 5/16" - 18 x 5/8"

- mach., 5/16 x 5/8" rd. hd.

2шт.

15

193-71

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

2шт.

16

G46106

BRACKET

CLAMP - coil

1шт.

18

A58810

DISTRIBUTOR - (See Figure 100)

1шт.

19

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor, 1-1/8 x 1-3/8 x 1/8"

1шт.

20

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

21

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

22

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

2шт.
