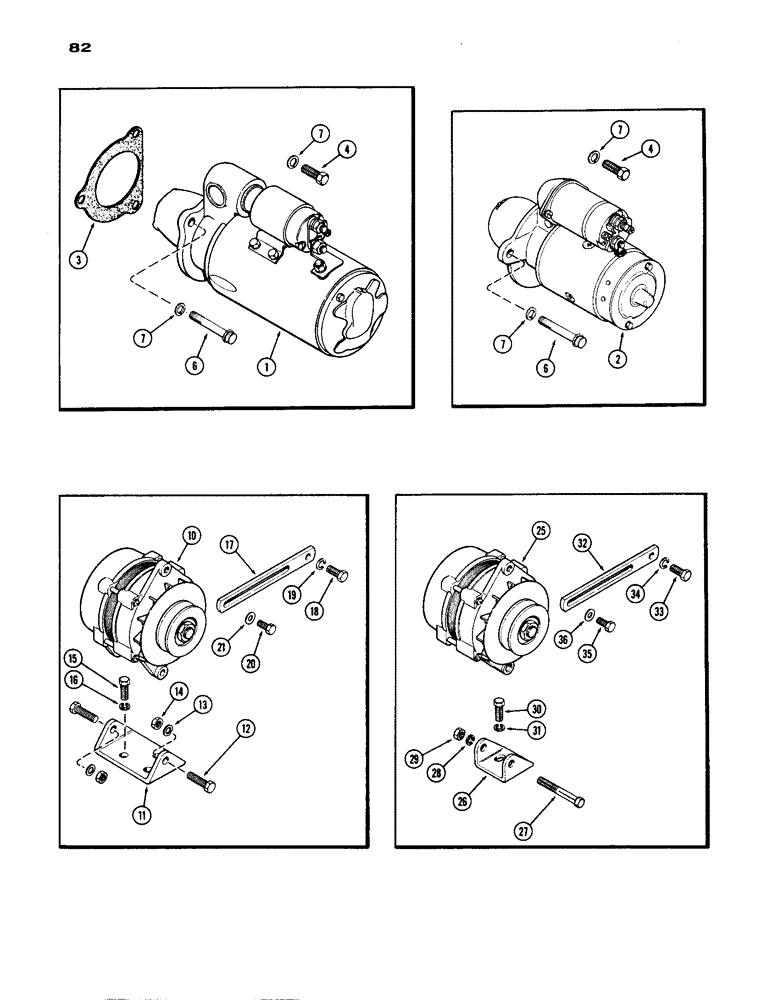

Запчасти Case IH 770 (082) - ELECTRICAL EQUIPMENT MOUNTING, (267B) DIESEL & (251B) SPARK IGNITION ENGINES (04) - ELECTRICAL SYSTEMS

1

A59670

MOTOR

STARTER MOTOR - (diesel) (See Figures 90 & 92)

1шт.

2

A59671

MOTOR

STARTING MOTOR - (spark) (See Figure 94)

1шт.

3

A27933

GASKET

- starting motor (Power Shift)

1шт.

4

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/2" N.C. hex, Nylock (Replaces A10009)

2шт.

6

166-93

12 PT SCREW,Flg, 1/2" - 13 x 3", Gr 8

SCREW, , ferry hd 12 Pt Flg, 1/2"-13 x 3", G8

1шт.

7

92-8

LOCK WASHER,1/2"

3шт.

10

A61062

ALTERNATOR ASSY. - (Order A42444 Figure 98)

1шт.

11

A61063

BRACKET

- alternator mounting

1шт.

12

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

13

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

14

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

15

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

16

92-6

LOCK WASHER,3/8"

3шт.

17

A59167

STRAP

- alternator adjusting

1шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

19

92-6

LOCK WASHER,3/8"

1шт.

20

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

21

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

1шт.

25

A59761

ALTERNATOR

ALTENATOR ASSY. - (Order A42444 Figure 98)

1шт.

26

A38492

BRACKET

- alternator mounting

1шт.

27

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

2шт.

32

A59167

STRAP

- alternator adjusting

1шт.

33

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

36

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

1шт.
