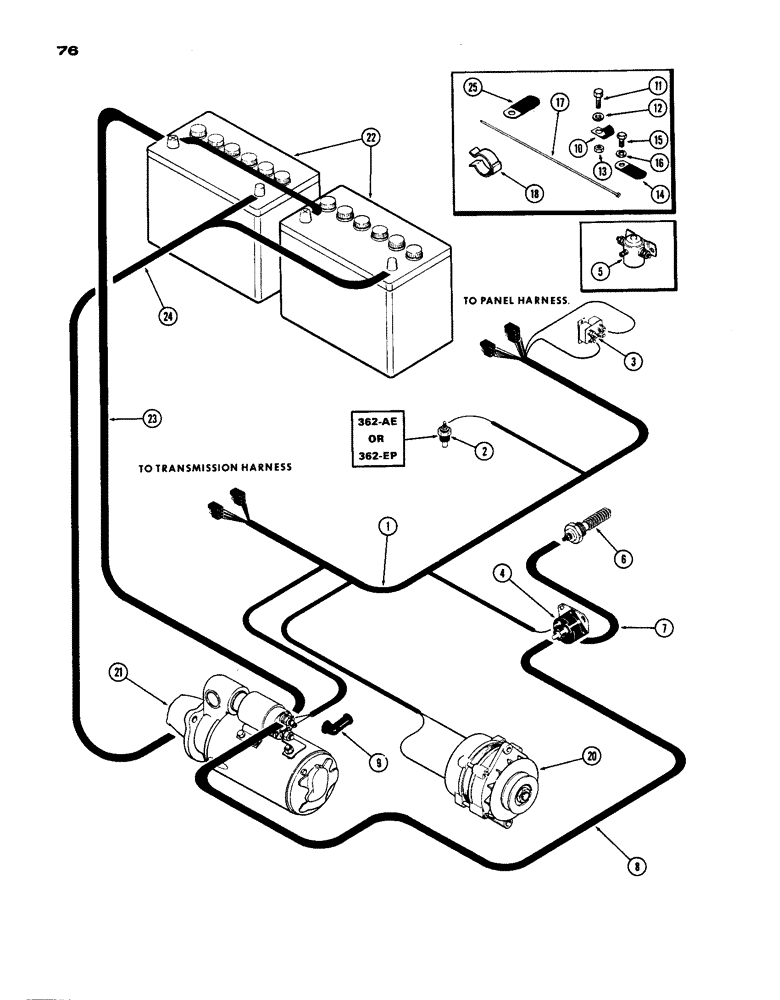

Запчасти Case IH 770 (076) - ELECTRICAL EQUIPMENT AND WIRING, (267B) DIESEL ENGINE, ENGINE HARNESS, ENGINE HARNESS (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
A59706
HARNESS
- engine wire
1шт.
2
F13156
SENDER UNIT
UNIT - engine temperature sending (w/air conditioner) (Used w/A59681 gauge) (See Figure 74)
1шт.
This gauge-sender combination is not interchangeable
1шт.
2
A61787
TRANSMITTER
UNIT - engine temperature sending (w/air cond.) (Used w/A61786 gauge) (See Figure 74)
1шт.
This gauge-sender combination is not interchangeable
1шт.
2
A61787
TRANSMITTER
UNIT - engine temperature sending (w/o air cond.) (Used w/A61785 gauge) (See Figure 74)
1шт.
This gauge-sender combination is not interchangeable
1шт.
3
A59704
BREAKER
- circuit (See Figure 83A)
1шт.
4
A39079
SOLENOID
- manifold heater, Start Serial: 8670718
1шт.
5
A57069
SOLENOID
- manifold heater, Serial Range: -8670718
1шт.
6
A37775
HEATER
- manifold
1шт.
7
A59712
WIRE - manifold, Serial Range: heater-solenoid
1шт.
9
A21753
CAP
- starter positive terminal & heater solenoid battery terminal, rubber
2шт.
10
A59718
CLAMP
CLIP - engine wire harness
1шт.
11
113-207
BOLT,Hex, 3/8" - 16 x 1", Gr 5
Clip Hex, 3/8"-16 x 1", G5, Full Thd
1шт.
12
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
13
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
1шт.
14
A37179
CLIP
- fender & alternator wires
1шт.
15
13-610
BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd
Clip Hex, 3/8"-16 x 5/8", G5, Full Thd
1шт.
16
92-6
LOCK WASHER,3/8"
1шт.
17
L11541
CABLE TIE,203.2mm L, Nylon
STRAP - engine wire harness
1шт.
18
A60894
CLIP
- alternator wire harness to breather tube
1шт.
20
NSS
NOT SOLD SEPARAT
ALTERNATOR ASSY. - (See Figure 82)
1шт.
21
NSS
NOT SOLD SEPARAT
STARTER MOTOR - (See Figure 82)
1шт.
22
A58559
BATTERY
- 12 volt
2шт.
23
A59674
NEG BATTERY CABLE
CABLE - battery, positive
1шт.
24
A59675
NEG BATTERY CABLE
CABLE - battery, negative (ground)
1шт.
25
A22883
CLIP
- battery cable
1шт.
Выбрано товаров: 29
