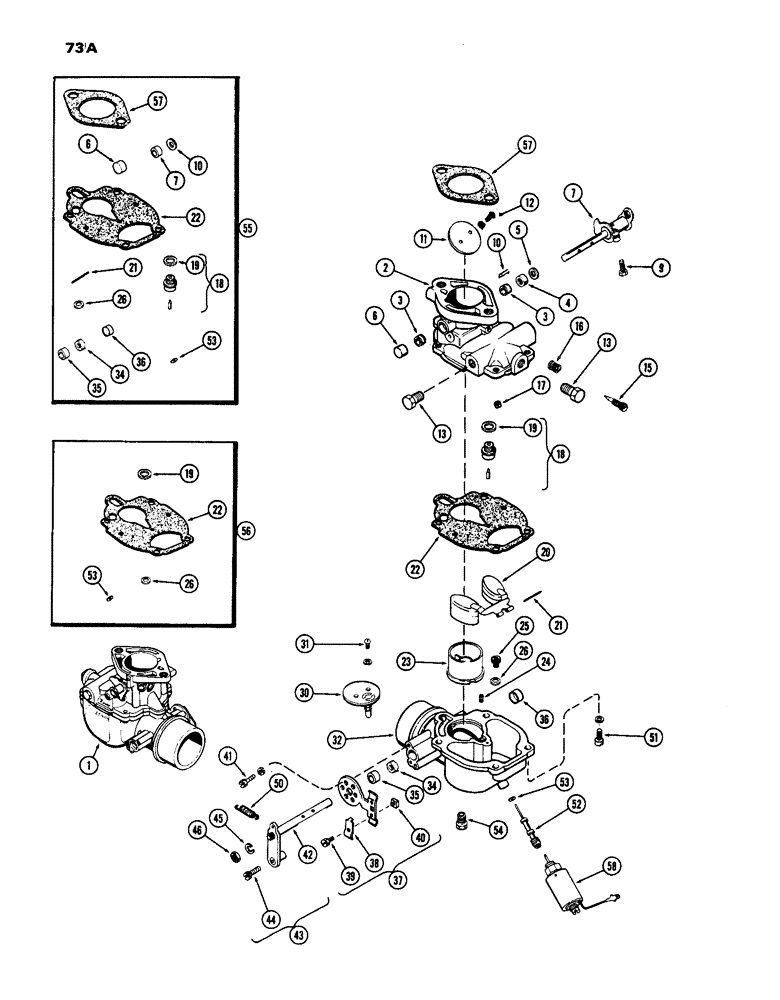

Запчасти Case IH 770 (073A) - A59042 CARBURETOR, (251B) SPARK IGNITION ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2323176 (03) - FUEL SYSTEM

1

A59042

CARBURETOR

- (Zenith #013374) (includes ref. 2 - 56)

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - throttle (Order ref. 1) (includes ref. 3 - 6)

1шт.

3

A40609

BUSHING

- throttle shaft

1шт.

4

B51528

SEAL

- throttle shaft

1шт.

5

B59360

RETAINER

WASHER - throttle shaft seal retaining

1шт.

6

A40612

PLUG

- throttle shaft hole

1шт.

Part of Repair Kit, P/N A40940

1шт.

7

A42403

THROTTLE

LEVER & SHAFT ASSY. - throttle (includes ref. 9)

1шт.

Part of Repair Kit, P/N A40940

1шт.

9

B51581

SCREW - stop

1шт.

10

138-36

LOCK PIN,3/32" x 7/16", Slotted

PIN, 3/32" x 7/16", Slotted

1шт.

Part of Repair Kit, P/N A40940

1шт.

11

A40614

PLATE - throttle

1шт.

12

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- throttle plate

2шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

13

B51541

PLUG

- fuel inlet

2шт.

15

A41389

SCREW

NEEDLE - idle adjusting

1шт.

16

B51404

SPRING

- idle needle

1шт.

17

A40621

JET - idle

1шт.

18

A40938

VALVE

& SEAT - fuel (matched) (includes ref. 19)

1шт.

Part of Repair Kit, P/N A40940

1шт.

19

B51618

WASHER

- fuel valve seat

1шт.

Part of Repair Kit, P/N A40940

1шт.

Part of Gasket Kit, P/N A40623

1шт.

20

B51359

FLOAT

1шт.

21

B51433

AXLE

- float

1шт.

Part of Repair Kit, P/N A40940

1шт.

22

B51471

GASKET

- bowl

1шт.

Part of Repair Kit, P/N A40940

1шт.

Part of Gasket Kit, P/N A40623

1шт.

23

A42360

VENTURI

1шт.

24

B59369

JET - well vent

1шт.

25

A42361

JET

- main

1шт.

26

B51619

WASHER

- main jet

1шт.

Part of Repair Kit, P/N A40940

1шт.

Part of Gasket Kit, P/N A40623

1шт.

30

A42351

PLATE ASSY. - choke

1шт.

31

173-223

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

- choke plate

2шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

Washer, Lock, #6

2шт.

32

NSS

NOT SOLD SEPARAT

BOWL ASSY. - fuel (includes ref. 34 - 36)

1шт.

34

B51533

WASHER

- packing, choke shaft

1шт.

Part of Repair Kit, P/N A40940

1шт.

35

B51439

RETAINER

- packing

1шт.

Part of Repair Kit, P/N A40940

1шт.

36

B51509

PLUG

- choke shaft hole

1шт.

Part of Repair Kit, P/N A40940

1шт.

37

A42350

BRACKET - choke (includes ref. 38 - 40)

1шт.

38

B51403

CLIP

- choke rod

1шт.

39

B51580

SCREW

- clip

1шт.

40

129-76

SQUARE NUT,#8 - 36

- #8 N.F., sq.

2шт.

41

B51458

SCREW,#8 - 32 x 0.37"

- bracket

2шт.

42

A42029

SHAFT - choke

1шт.

43

B51378

LEVER

- choke shaft (includes ref. 44)

1шт.

44

B51579

SCREW - swivel, choke rod

1шт.

45

87812

LOCK WASHER,#8

Washer, Lock, #8

1шт.

46

129-36

NUT,#8-36

- #8 N.F. hex

1шт.

50

B51412

SPRING

- choke lever return

1шт.

51

B51635

SCREW,5/8" x 0.335"

-, Serial Range: bowl-body

4шт.

52

A40622

JET

- discharge

1шт.

53

B51610

WASHER

- discharge jet

1шт.

Part of Repair Kit, P/N A40940

1шт.

Part of Gasket Kit, P/N A40623

1шт.

54

B51541

PLUG

- bowl drain

1шт.

55

CASA40940

KIT

- repair (includes ref. 6, 10, 18, 19, 21, 22, 26, 34 - 36, 53 & 57)

1шт.

56

A40623

GASKET KIT

KIT - gasket (includes ref. 19, 22, 26 & 53)

1шт.

57

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

Part of Repair Kit, P/N A40940

1шт.

58

A58808

SOLENOID

ASSY. - fuel cut-off

1шт.
