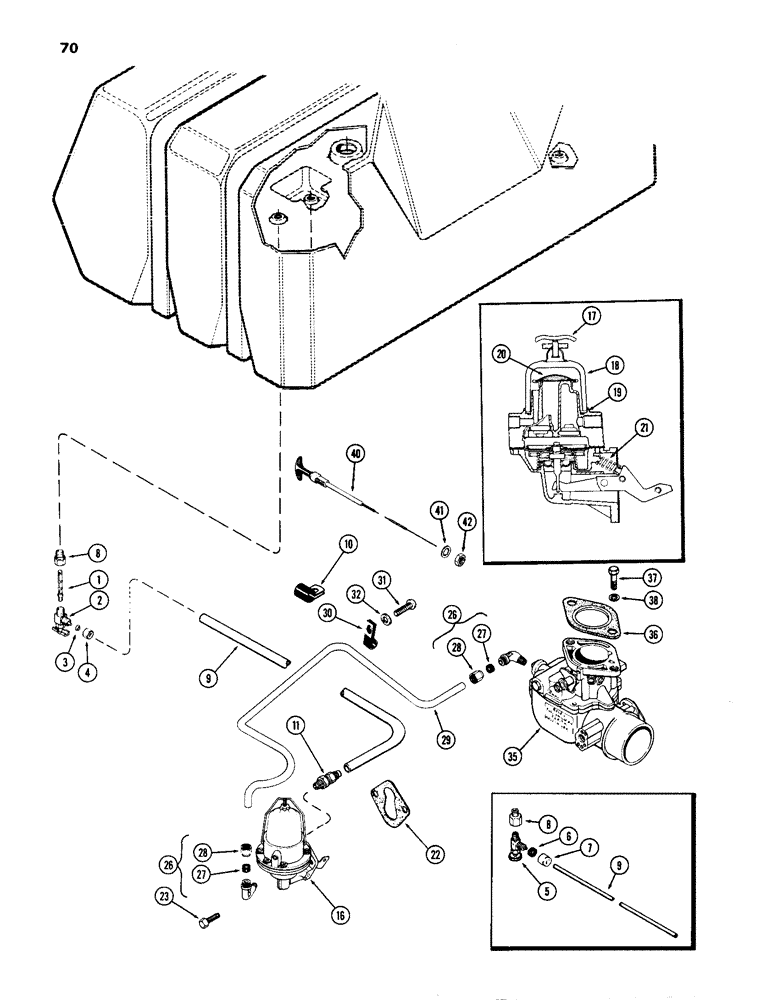

Запчасти Case IH 770 (070) - FUEL PUMP & LINES, (251B) SPARK IGNITION ENGINE (03) - FUEL SYSTEM

1

A64596

STRAINER ELEMENT

FILTER - fuel tank (Replaces A62353)

1шт.

2

A62354

VALVE

- fuel tank (includes ref. 3 & 4)

1шт.

3

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

4

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

5

217-278

FITTING

VALVE - outlet & shut off (Order A62354) (includes ref. 6 & 7)

1шт.

6

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

7

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

8

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- outlet, 1/4 x 1/4"

1шт.

9

A62027

TUBE

- tank outlet to engine (Nylon)

1шт.

10

A57061

CLIP

- tube

1шт.

11

222-5112

FITTING,9/16"-24 x 1/4" NPTF

CONNECTOR - for 1/8" tube

1шт.

A42434

PUMP

ASSY. (includes ref. 16 - 22)

1шт.

16

NSS

NOT SOLD SEPARAT

PUMP - fuel, gas (includes ref. 17 - 21)

1шт.

17

A42435

BAIL - fuel pump

1шт.

18

A42436

BOWL

- fuel pump (Glass)

1шт.

18

A42437

BOWL

- fuel pump (metal)

1шт.

19

A42438

GASKET

-, Serial Range: bowl-body

1шт.

20

G10279

SCREEN - sedimentation

1шт.

21

A42439

SPRING - rocker arm

1шт.

22

A65561

GASKET

- fuel pump to block (Replaces G46902)

1шт.

23

113-123

BOLT,Locking, 5/16" - 18 x 1", Gr 5

- 5/16 x 1" N.C. hex, Nylock

2шт.

26

222-44

ELBOW,90 Degree, 9/16"-24 Fem x 1/8"-27 NPTF

ASSY. - 5/16" tube, pump to carburetor (includes ref. 27 & 28)

2шт.

27

222-103

SLEEVE,5/16" Tube

1шт.

28

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

29

A59099

TUBE - fuel, Serial Range: pump-carburetor

1шт.

30

A7922

CLIP

- tube

1шт.

31

75-68

SCREW

- clip, mach., 3/8 x 1/2" rd. hd.

1шт.

32

92-6

LOCK WASHER,3/8"

1шт.

35

A62716

CARBURETOR - gas (See Figure 72), Start Serial: 2323176

1шт.

35

A59042

CARBURETOR

- gas (See Figure 72A), Serial Range: -2323176

1шт.

36

A26434

GASKET

-, Serial Range: carburetor-manifold

1шт.

37

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

38

92-6

LOCK WASHER,3/8"

2шт.

40

A61218

CONTROL

- flexible choke

1шт.

41

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

1шт.

42

86585245

SPECIAL NUT,JAM, 5/8" - 18

- 3/8" N.C. hex

1шт.
