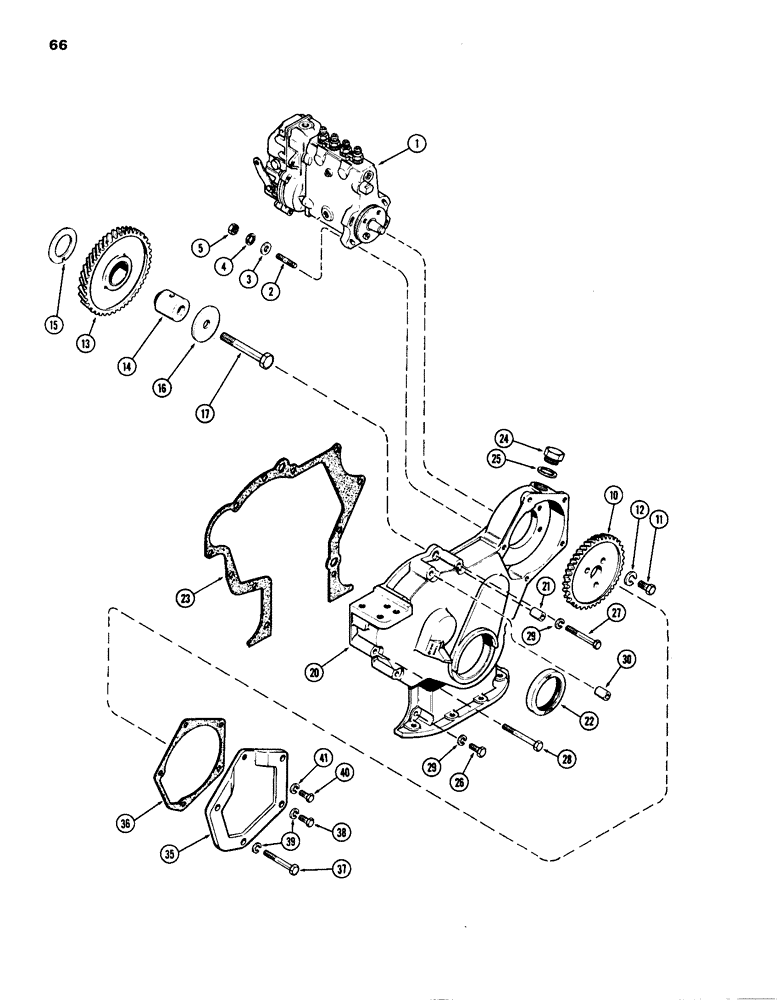

Запчасти Case IH 770 (066) - FUEL INJECTION PUMP AND DRIVE, (267B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A62568

PUMP ASSY. - fuel injection (See Page 67A) (w/filter & hand primer), Start Serial: 2323001

1шт.

1

A58533

PUMP ASSY. - fuel injection (See Page 67A) (w/o filter or hand primer), Serial Range: -2323001

1шт.

2

A58689

STUD

- pump mounting, 3/8" N.C. x 1-7/8"

4шт.

3

A57470

WASHER

- 13/32 x 11/16" x 16 ga.

4шт.

4

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

5

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

4шт.

10

A58693

GEAR

- injection pump (w/o hub) (48 teeth)

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

12

92-6

LOCK WASHER,3/8"

3шт.

13

A62542

GEAR

ASSY. - idler (53 teeth) (Replaces A58686)

1шт.

14

A58690

SHAFT

- idler gear

1шт.

15

A58691

WASHER

- thrust, idler shaft

1шт.

16

A58692

PLATE

- thrust, idler shaft

1шт.

17

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

1шт.

20

A58609

COVER

ASSY. - timing gear (includes ref. 21)

1шт.

21

A58611

PIN

- dowel, cover

2шт.

22

A62049

OIL SEAL

- crankshaft front

1шт.

23

A58612

GASKET

- cover, timing gear

1шт.

24

A21140

PLUG

- timing window

1шт.

25

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

27

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8 x 2-1/2" N.C. hex

2шт.

28

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex

1шт.

28

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- 3/8 x 3-1/4" N.C. hex

2шт.

29

92-6

LOCK WASHER,3/8"

9шт.

30

A19774

BUSHING

SPACER - alternator pry point

1шт.

35

A61053

COVER

- fuel pump

1шт.

36

A58615

GASKET

- fuel pump cover

1шт.

37

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8 x 3" N.C. hex

2шт.

38

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

39

92-6

LOCK WASHER,3/8"

4шт.

40

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

41

92-5

LOCK WASHER,5/16"

1шт.
