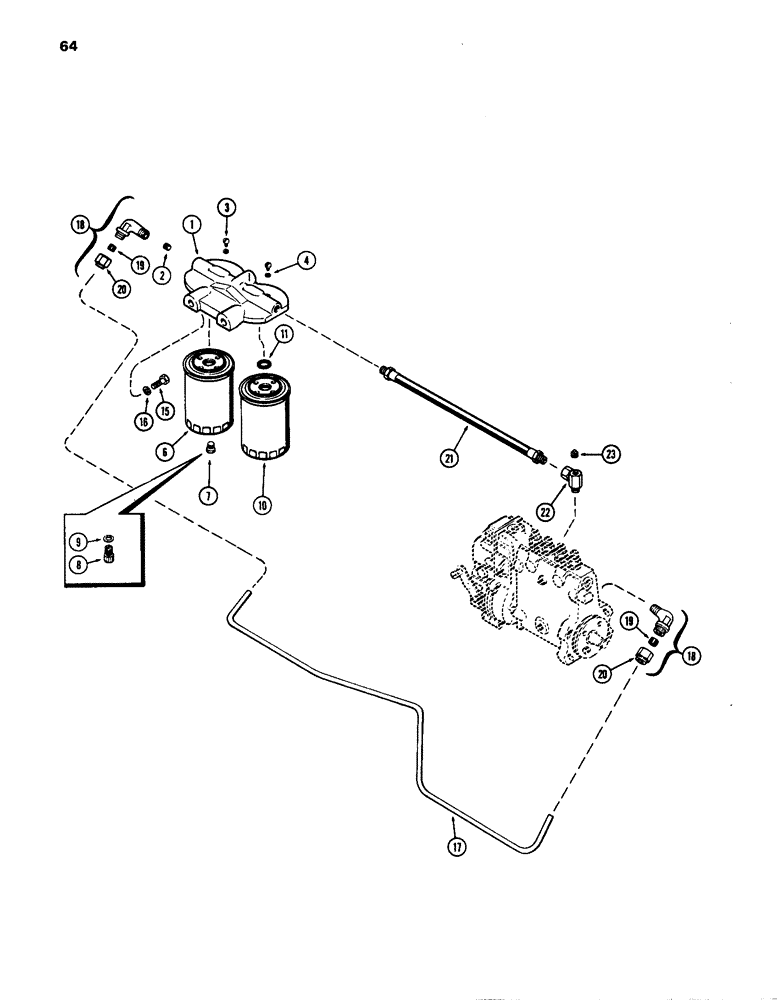

Запчасти Case IH 770 (064) - FUEL INJECTION FILTER SYSTEM, (267B) DIESEL ENGINE, 1ST USED ENG. SER. NO. 2323001 (03) - FUEL SYSTEM

1

A62339

HEAD

ASSY. - filter mounting (includes ref. 2)

1шт.

2

221-41

PLUG

- 1/8" P.T.

1шт.

3

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleeder

2шт.

4

A66619

WASHER

- bleeder screw (Replaces A20662) (includes ref. 6 - 11)

2шт.

CASA41745

FUEL FILTER

FILTER KIT - fuel

1шт.

6

NSS

NOT SOLD SEPARAT

FILTER - 1st stage (includes ref. 7 - 9)

1шт.

7

221-1661

PLUG

- metal, 1/8" P.T. hex hd.

1шт.

8

G49080

PLUG

- plastic, 3/8" N.F.

1шт.

9

A27891

O-RING,0.103" Thk x 0.362" ID, -110, Cl 5, 75 Duro

"O" RING - w/plastic plug (3/8 x 9/16 x 3/32")

1шт.

10

NSS

NOT SOLD SEPARAT

FILTER - 2nd stage (includes ref. 11)

1шт.

11

A42315

GASKET

-, Serial Range: filter-head

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

16

92-6

LOCK WASHER,3/8"

2шт.

17

A62341

TUBE

- transfer pump to 1st filter

1шт.

18

222-45

ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF

ASSY. - 1/4" P.T., 5/16" tube (includes ref. 19 & 20)

2шт.

19

222-103

SLEEVE,5/16" Tube

1шт.

20

222-113

TUBE NUT,9/16"-24

NUT - for 5/16" tube

1шт.

21

A58774

HOSE,19.05mm ID x 254mm L, SAE 100R6

- filter, Serial Range: head-pump

1шт.

22

A20539

FITTING

UNION -, Serial Range: hose-pump

1шт.

23

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - 1/8" P.T. sq. hd.

1шт.
