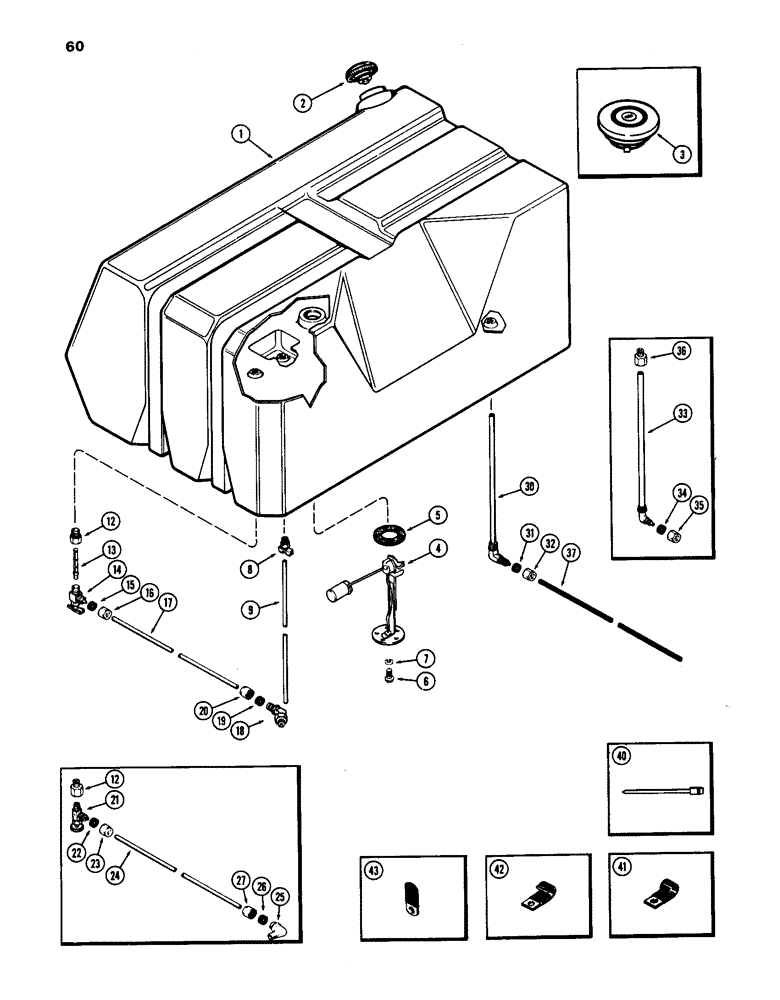

Запчасти Case IH 770 (060) - FUEL TANK & LINES, (267B) DIESEL ENGINE (03) - FUEL SYSTEM

1

A59490

FUEL TANK

TANK - fuel

1шт.

Decal is available

1шт.

2

A32119

CAP

- fuel tank filler (w/o lock)

1шт.

3

A32120

CAP

- fuel tank filler (w/lock)

1шт.

4

A62092

UNIT

- fuel gauge sending (Replaces A59491)

1шт.

5

A11822

GASKET

- sending unit

1шт.

6

173-221

SCREW,Sl Rnd Hd, #10 - 32 x 7/16"

- #10 x 7/16" N.F. rd. hd. mach.

5шт.

7

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

5шт.

8

217-107

VALVE

- drain cock

1шт.

9

A22988

HOSE,0.25" ID x 15.00", SAE SC716 CS

- Water trap drain 0.25" ID x 15.00", SAE SC716 CS

1шт.

12

217-2

ADAPTER,1/4"-18 Fem NPTF x 1/4"-18 NPTF Male

- outlet, 1/4 x 1/4"

1шт.

13

A64596

STRAINER ELEMENT

FILTER - fuel (Replaces A62353)

1шт.

14

A62354

VALVE

ASSY. - fuel outlet & shut-off (includes ref. 15 & 16)

1шт.

15

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

16

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

17

A62320

TUBE

- tank outlet

1шт.

18

222-5140

FITTING,45 Degree, 17/32"-24 x 1/4" NPT

ELBOW ASSY. - 45 deg. (to hand primer pump) (includes ref. 19 & 20)

1шт.

19

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

20

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

21

127-278

VALVE - outlet & shut-off (Order A62354) (includes ref. 22 & 23)

1шт.

22

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

23

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

24

A60723

BASE PLATE

TUBE - tank outlet to engine (Order A62320)

1шт.

25

222-5111

ELBOW,9/16"-24 x 1/8" NPTF

ASSY. - 90 deg., (to hand primer pump) (includes ref. 26 & 27)

1шт.

26

222-5186

SLEEVE,3/8" Tube

- for 3/8" Tube

1шт.

27

222-5181

NUT,9/16"-24

NUT - for 3/8" tube

1шт.

30

A62274

FITTING

PIPE ASSY. - fuel tank return port (Replaces A60724) (includes ref. 31 & 32)

1шт.

31

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

32

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

33

A60724

ELBOW

PIPE ASSY. - fuel tank return port (required adapter) (Order A62274) (includes ref. 34 & 35)

1шт.

34

222-5185

SLEEVE,1/4" Tube

- for 1/4" Tube

1шт.

35

222-5180

TUBE NUT,7/16"-24

for 1/4" tube 7/16"-24

1шт.

36

217-4

ADAPTER,3/8"-18 Fem NPTF x 3/8"-18 NPTF Male

- 3/8 x 3/8" (used w/A60724 fuel tank pipe)

1шт.

37

A60722

TUBE

- injector to return port

1шт.

40

L11541

CABLE TIE,203.2mm L, Nylon

STRAP - tube

2шт.

41

A57061

CLIP

- tube

1шт.

42

A59718

CLAMP

CLIP - tube

1шт.

43

A37179

CLIP

- tube

1шт.

A143035

NUT,31.75mm OD x 26.97mm L

GROMMET

1шт.

Use to attach fuel lines or drain cock, if needed

1шт.

A65890

STUD,3/8" - 16 x 1/4" NPT

1шт.

Use to attach fuel lines or drain cock, if needed

1шт.

A65892

WASHER

1шт.

Use to attach fuel lines or drain cock, if needed

1шт.
