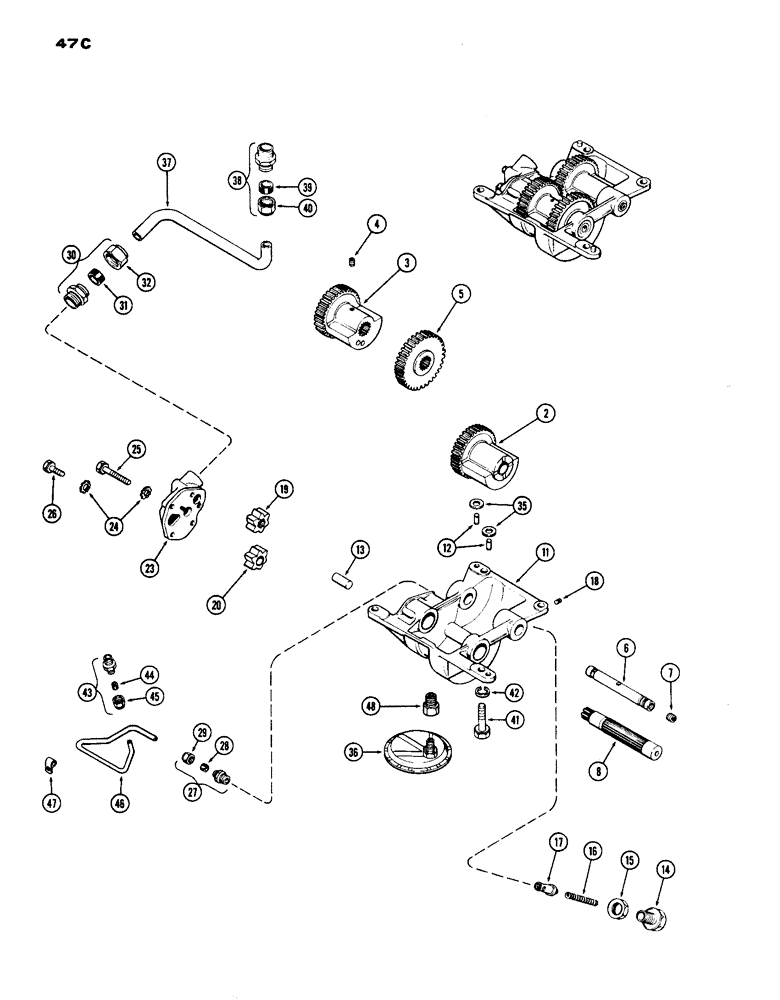

Запчасти Case IH 770 (047C) - 3 GEAR BALANCER AND OIL PUMP, (251B) SPARK IGNITION ENGINE (02) - ENGINE

NSS

NOT SOLD SEPARAT

BALANCER & OIL PUMP ASSY. - engine

1шт.

If the balancer becomes inoperative, anew 2 gear balancer A62595, crankshaft gear A62450 and adapter kit A43000 must be installed, see Fig. 47E

1шт.

Includes Ref. 2 - 32

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT ASSY. - driven

1шт.

3

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT - drive (splined)

1шт.

4

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR - drive, counterweight

1шт.

6

NSS

NOT SOLD SEPARAT

SHAFT - stationary

1шт.

7

221-841

PLUG

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT ASSY. - drive, counterweight

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - balancer

1шт.

Includes Ref. 12 & 13

1шт.

12

A8134

PIN

dowel, housing, 3/8 x 3/4"

2шт.

13

NSS

NOT SOLD SEPARAT

SHAFT - stub, oil pump gear

1шт.

14

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

oil pump relief

1шт.

15

A27858

NUT

adjusting, screw

1шт.

16

A23598

VALVE SPRING

relief, oil pump

1шт.

17

A22566

PLUNGER

relief, oil pump

1шт.

18

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

1шт.

19

A22564

GEAR

drive, oil pump (splined)

1шт.

20

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

23

NSS

NOT SOLD SEPARAT

COVER - outlet, oil pump

1шт.

24

193-29

LOCK WASHER,Int Tooth, 5/16"

5шт.

25

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

27

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

1шт.

Includes Ref. 28 & 29

1шт.

28

222-102

SLEEVE,1/4" Tube

1шт.

29

87017024

TUBE NUT,1/2"-24

1шт.

30

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

1шт.

Includes Ref. 31 & 32

1шт.

31

222-106

SLEEVE,5/8" Tube

1шт.

32

222-116

TUBE NUT,1"-18

1шт.

35

G49401

SHIM,.005" Thk

1шт.

Housing to cylinder block

1шт.

35

G49402

SHIM,.010" Thk

1шт.

Housing to cylinder block

1шт.

36

A22590

FILTER SCREEN

ASSY. - oil inlet

1шт.

37

A62745

TUBE

oil, Serial Range: pump-filter

1шт.

38

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

1шт.

Includes Ref. 39 & 40

1шт.

39

222-106

SLEEVE,5/8" Tube

1шт.

40

222-116

TUBE NUT,1"-18

1шт.

41

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

1шт.

Includes Ref. 44 & 45

1шт.

44

222-102

SLEEVE,1/4" Tube

1шт.

45

87017024

TUBE NUT,1/2"-24

1шт.

46

A22596

TUBE

oil gallery to balancer shaft

1шт.

47

A20541

CLIP

oil tube

1шт.

48

A21235

FITTING

oil screen

1шт.
