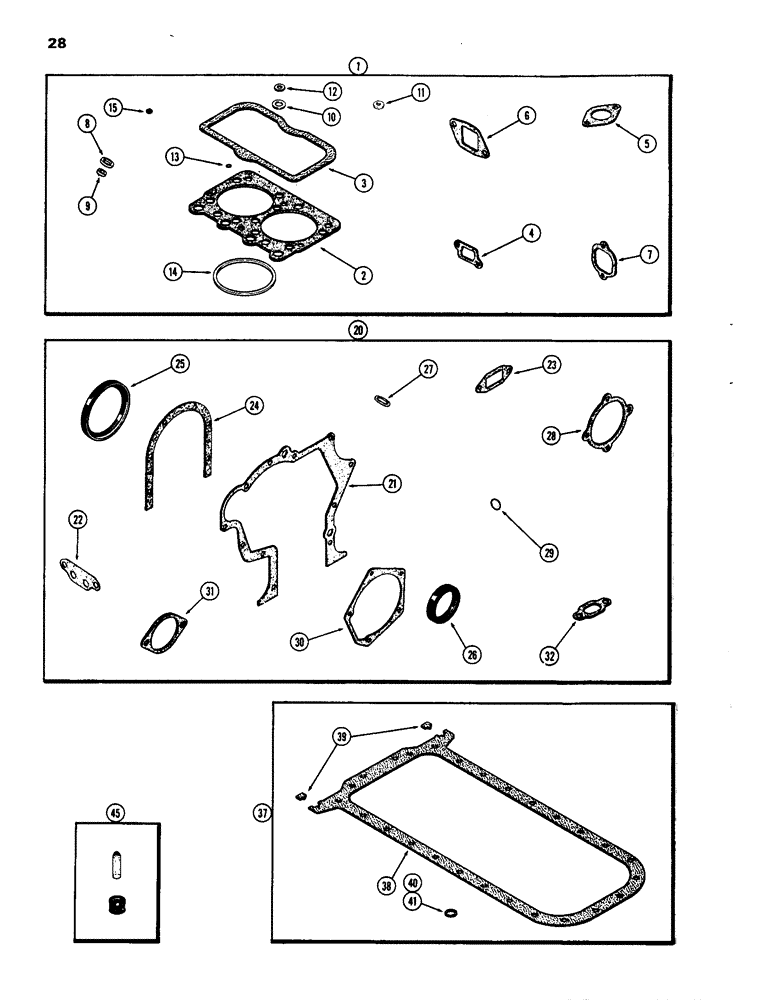

Запчасти Case IH 770 (028) - ENGINE GASKET KITS, (267B) DIESEL ENGINE, 1ST USED ENGINE SERIAL NUMBER 2323001 (02) - ENGINE

1

A42889

GASKET

VALVE GRIND GASKET KIT (includes ref. 2 - 15)

1шт.

For complete engine overhaul Order 1-A42889, 1-A42096, 1-A43005 & 1-M20614

1шт.

2

A62215

GASKET

- cylinder head

2шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

2шт.

4

A58637

MANIFOLD GASKET

- water manifold

2шт.

5

G46907

GASKET

- thermostat housing

1шт.

6

A58662

MANIFOLD GASKET

- intake manifold

4шт.

7

A58895

GASKET

- exhaust manifold

4шт.

8

A41403

WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk

- injector nozzle

4шт.

9

A41402

SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk

- carbon, injector nozzle

4шт.

10

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

- breather tube

2шт.

11

A23684

GASKET

GASKET - cover studs

4шт.

12

A34133

GASKET

- breather screw

2шт.

13

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

"O" RING - rocker shaft oil tube

2шт.

14

A34686

RING

- fire

4шт.

15

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- intake & exhaust stem

8шт.

20

A42096

GASKET

CYLINDER BLOCK GASKET KIT (includes ref. 21 - 32)

1шт.

For complete engine overhaul Order 1-A42889, 1-A42096, 1-A43005 & 1-M20614

1шт.

21

A58612

GASKET

- timing gear cover

1шт.

22

A58756

OIL PAN GASKET SET

- oil filter base

1шт.

23

A58646

GASKET

- water pump body

1шт.

24

A32830

GASKET

- rear seal retainer

1шт.

25

A62050

OIL SEAL

- oil, crankshaft rear

1шт.

26

A62049

OIL SEAL

- oil, crankshaft front

1шт.

27

A58613

SEALING WASHER

GASKET - timing window plug

1шт.

28

A58649

GASKET

- water, Serial Range: pump-body

1шт.

29

A58602

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

"O" RING - lube oil filter base (Not applicable)

3шт.

30

A58615

GASKET

- fuel pump cover

1шт.

31

A58617

GASKET

- auxiliary drive cover

1шт.

32

A58670

GASKET

- oil cooler water opening

1шт.

37

A43005

GASKET KIT

OIL PAN GASKET KIT (includes ref. 38 - 41)

1шт.

38

NSS

NOT SOLD SEPARAT

GASKET - oil pan (Order ref. 37)

1шт.

39

A62402

GASKET

- oil pan corners

2шт.

40

A58608

GASKET

- oil pan drain plug

1шт.

41

A58933

OIL PAN GASKET SET

- oil pan drain plug (Not applicable)

1шт.

45

M20614

SEAL KIT

SEAL KIT - valve (Set of 4)

2шт.

For complete engine overhaul Order 1-A42889, 1-A42096, 1-A43005 & 1-M20614

1шт.
