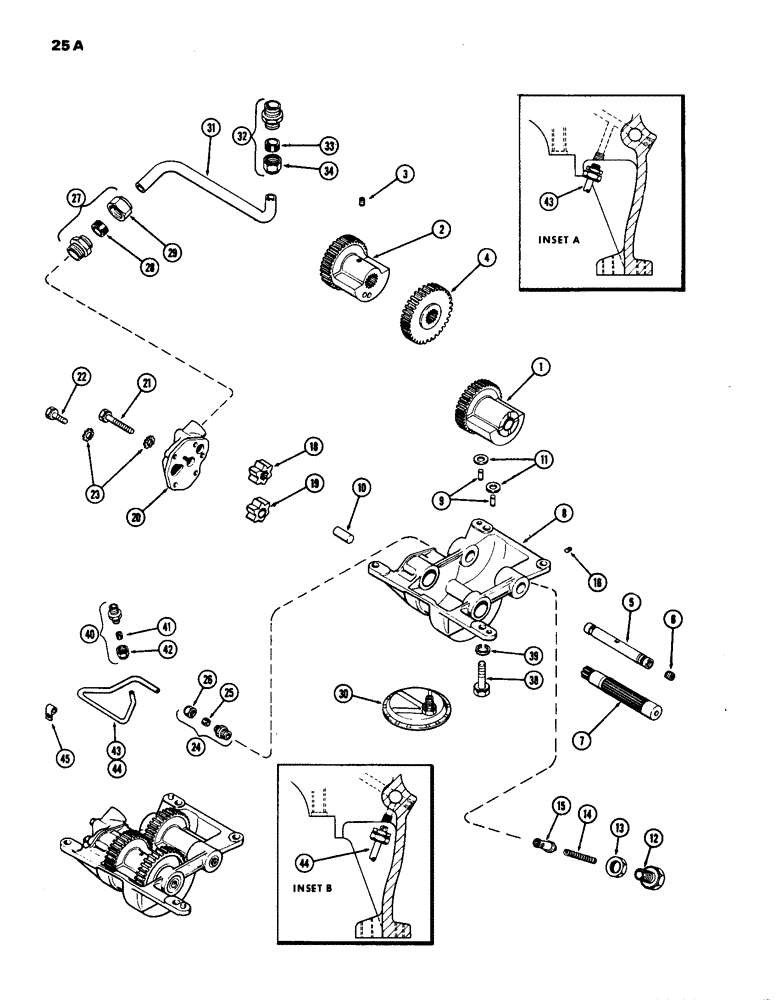

Запчасти Case IH 770 (025A) - 3 GEAR BALANCER AND OIL PUMP, (267B) DIESEL ENGINE (02) - ENGINE

NSS

NOT SOLD SEPARAT

BALANCER & PUMP ASSY. - engine

1шт.

Includes Ref. 1 - 29

1шт.

1

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT ASSY. - driven

1шт.

2

NSS

NOT SOLD SEPARAT

COUNTERWEIGHT - drive (splined)

1шт.

3

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - drive, counterweight

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - stationary

1шт.

6

221-841

PLUG

pipe, 1/4" hex. sckt. hd.

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT ASSY. - drive, counterweight

1шт.

8

NSS

NOT SOLD SEPARAT

HOUSING ASSY. - balancer

1шт.

Includes Ref. 9 & 10

1шт.

9

A8134

PIN

dowel

2шт.

10

NSS

NOT SOLD SEPARAT

SHAFT - stub, oil pump gear

1шт.

11

G49401

SHIM,.005" Thk

1шт.

Housing to cylinder block

1шт.

11

G49402

SHIM,.010" Thk

1шт.

Housing to cylinder block

1шт.

12

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

oil pump relief

1шт.

13

A27858

NUT

adjusting screw

1шт.

14

A61958

VALVE SPRING

relief, oil pump

1шт.

15

A22566

PLUNGER

relief, oil pump

1шт.

16

178-40

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

1шт.

18

A22564

GEAR

drive, oil pump (splined)

1шт.

19

A22555

GEAR

ASSY. - oil pump, w/bushing

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - outlet, oil pump

1шт.

21

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

3шт.

23

193-29

LOCK WASHER,Int Tooth, 5/16"

5шт.

24

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

1шт.

25

222-102

SLEEVE,1/4" Tube

1шт.

Includes Ref. 26

1шт.

26

87017024

TUBE NUT,1/2"-24

1шт.

27

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

1шт.

Includes Ref. 28 & 29

1шт.

28

222-106

SLEEVE,5/8" Tube

1шт.

29

222-116

TUBE NUT,1"-18

1шт.

30

A22590

FILTER SCREEN

ASSY. - oil inlet

1шт.

31

A62745

TUBE

oil, Serial Range: pump-filter

1шт.

32

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

1шт.

Includes Ref. 33 & 34

1шт.

33

222-106

SLEEVE,5/8" Tube

1шт.

34

222-116

TUBE NUT,1"-18

1шт.

38

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

4шт.

39

92-8

LOCK WASHER,1/2"

4шт.

40

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

1шт.

Includes Ref. 41 & 42

1шт.

41

222-102

SLEEVE,1/4" Tube

1шт.

42

87017024

TUBE NUT,1/2"-24

1шт.

43

A58857

TUBE

oil gallery to balancer shaft (See Inset A)

1шт.

44

A60668

TUBE - oil gallery to balancer shaft (See Inset B)

1шт.

45

A20541

CLIP

oil tube

1шт.
