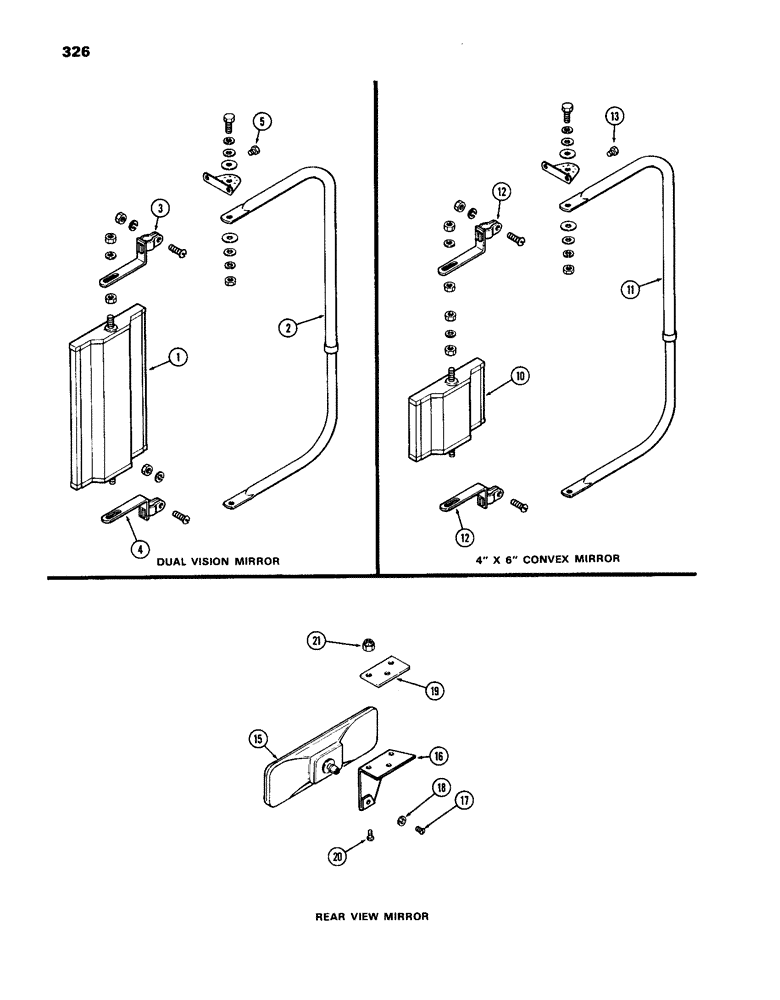

Запчасти Case IH 770 (326) - CAB, MIRRORS, DUAL VISION (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A61895
ATTACHMENT
- mirror (Mach Item), Includes: Ref. 1 - 5
1шт.
NSS
NOT SOLD SEPARAT
MIRROR ASSY. - dual vision (Order A61895), Includes: Ref. 1 - 4
1шт.
1
A42765
MIRROR
- dual vision
1шт.
2
A42764
BRACKET
- mirror swing away
1шт.
3
A42766
ADAPTER
- mirror bracket (Small)
1шт.
4
A42767
ADAPTER
- mirror bracket (Large)
1шт.
5
187-1021
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"
BOLT - 1/4" x 3/8" hex., Shakeproof
4шт.
A61897
KIT
ATTACHMENT - mirror (Mach. Item), 4 x 6 convex, Includes: Ref. 10 - 13
1шт.
NSS
NOT SOLD SEPARAT
MIRROR ASSY. - 4 x 6 convex (Order A61897), Includes: Ref. 10 - 12
1шт.
10
A42768
MIRROR
- 4 x 6 convex
1шт.
11
A42764
BRACKET
- mirror swing away, 4 x 6 convex
1шт.
12
A42767
ADAPTER
- mirror bracket, 4 x 6 convex
2шт.
13
187-1021
SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/8"
BOLT - 1/4 x 3/8" hex., Shakeproof, 4 x 6 convex
4шт.
F89785
MIRROR
ATTACHMENT - mirror, rear view, Includes: Ref. 15 - 21
1шт.
15
F89695
MIRROR
ASSY. - rear view
1шт.
16
F63369
BRACKET
- mirror mounting, rear view
1шт.
17
163-15
SCREW,Hex, #10 - 24 x 5/8"
- #10 x 5/8" flat hd., rear view
1шт.
18
195-511
WASHER,#10
- 13/64 x 15/32 x 1/16", rear view
1шт.
19
F63381
PLATE
- bracket mounting, rear view
1шт.
20
173-237
SCREW,Sl Rnd Hd, #10 - 32 x 1/2"
- #10 x 1/2" rd. hd., rear view
3шт.
21
86625057
NUT,#10-24, GB
NUT, LOCK, , Esna, Rear view #10-24, GB
3шт.
Выбрано товаров: 21
