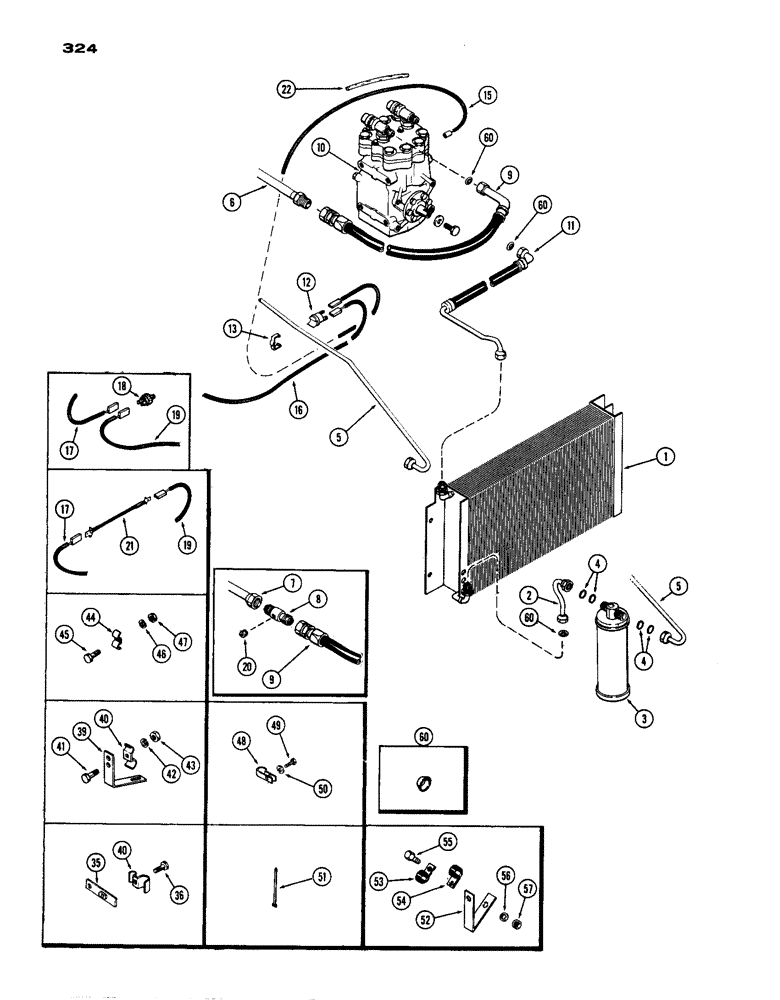

Запчасти Case IH 770 (324) - CAB, AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

A61687

COIL

COIL - condenser

1шт.

2

A61690

TUBE

TUBE -, Serial Range: condenser-receiver

1шт.

3

A61688

TANK

RECEIVER - drier

1шт.

4

A61198

O-RING,0.07" Thk x 0.301" ID, -11

"O" RING - receiver, 5/16 x 7/16 x 1/16"

2шт.

5

A61692

TUBE

TUBE -, Serial Range: receiver-cab

1шт.

6

A62226

TUBE

TUBE - cab to compressor, w/union, Start Serial: 8665014

1шт.

7

A61213

TUBE

TUBE - cab to compressor, w/o union, Serial Range: -8665014

1шт.

8

A61189

SPARE PART UNION - tube to hose (used w/A61213 tube), Serial Range: -8665014

1шт.

9

A61207

HOSE

HOSE -, Serial Range: cab-compressor

1шт.

10

A42953

SPARE PART COMPRESSOR ASSY. - (Tecumseh) (See Fig. 325A) (Order A64810)

1шт.

10

A42954

COMPRESSOR ASSY. - (York) (See Fig. 325C) (Order A64810)

1шт.

10

417888C93

AIRCOND. COMPRESSOR

Compressor Assy., A/C

1шт.

10

1924004C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor

1шт.

10

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

11

A61208

HOSE ASSY.

HOSE -, Serial Range: compressor-condenser

1шт.

12

A61291

THERMOSTAT

THERMOSTAT - high temperature

1шт.

13

A61789

CLAMP

CLAMP - thermostat (Replaces A61191)

1шт.

15

A61755

ELECTRICAL WIRE

WIRE WIRE - thermostat to compressor clutch

1шт.

16

A42931

ELECTRICAL WIRE

WIRE WIRE - thermostat to cab harness

1шт.

17

NSS

NOT SOLD SEPARAT

WIRE - cab to lo-pressure thermostat

1шт.

These componenets used on some early production tractors. Use A42931

1шт.

18

NSS

NOT SOLD SEPARAT

SWITCH - low pressure

1шт.

These componenets used on some early production tractors. Use A42931

1шт.

19

A61756

WIRE - thermostat to lo-pressure thermostat

1шт.

These componenets used on some early production tractors. Use A42931

1шт.

20

NSS

NOT SOLD SEPARAT

PLUG - union

1шт.

21

NSS

NOT SOLD SEPARAT

WIRE - jumper

1шт.

These componenets used on some early production tractors. Use A42931

1шт.

22

A62053

HARNESS

LOOM - wire

1шт.

35

A62254

BRACKET

BRACKET - air conditioner tube mtg.

1шт.

36

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

39

A61200

BRACKET - air conditioner tube mtg.

1шт.

40

A61704

SPARE PART CLAMP - air conditioner tubes

2шт.

41

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 7/8", G5, Full Thd

2шт.

42

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

43

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

2шт.

44

A61199

CLIP

CLIP - tube

1шт.

45

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

47

25-104

NUT,1/4"-20, G5

NUT, 1/4"-20, G5

1шт.

48

A7922

CLIP

CLIP - clutch lead wire

1шт.

49

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

50

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

51

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP STRAP -, Serial Range: wires-tubes

2шт.

52

A62206

SPARE PART BRACKET - air cond. tubes

1шт.

53

49886

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

CLIP - tube, 5/8"

1шт.

54

49845

CLAMP

CLIP - tube, 3/8"

1шт.

55

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

1шт.

56

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

1шт.

57

25-106

NUT,3/8"-16, G5

NUT - 3/8" N.C. hex.

1шт.

60

86637735

SEAL,9.53mm ID x 13.97mm OD

3/8 Tube, Fl

1шт.

60

222-994

GASKET,1/2 Tube, Fl, Copper

GASKET - 45 Deg., for 1/2" tube

1шт.

60

222-995

SEALING WASHER,15.88mm ID

GASKET - 45 Deg., for 5/8" tube

1шт.
