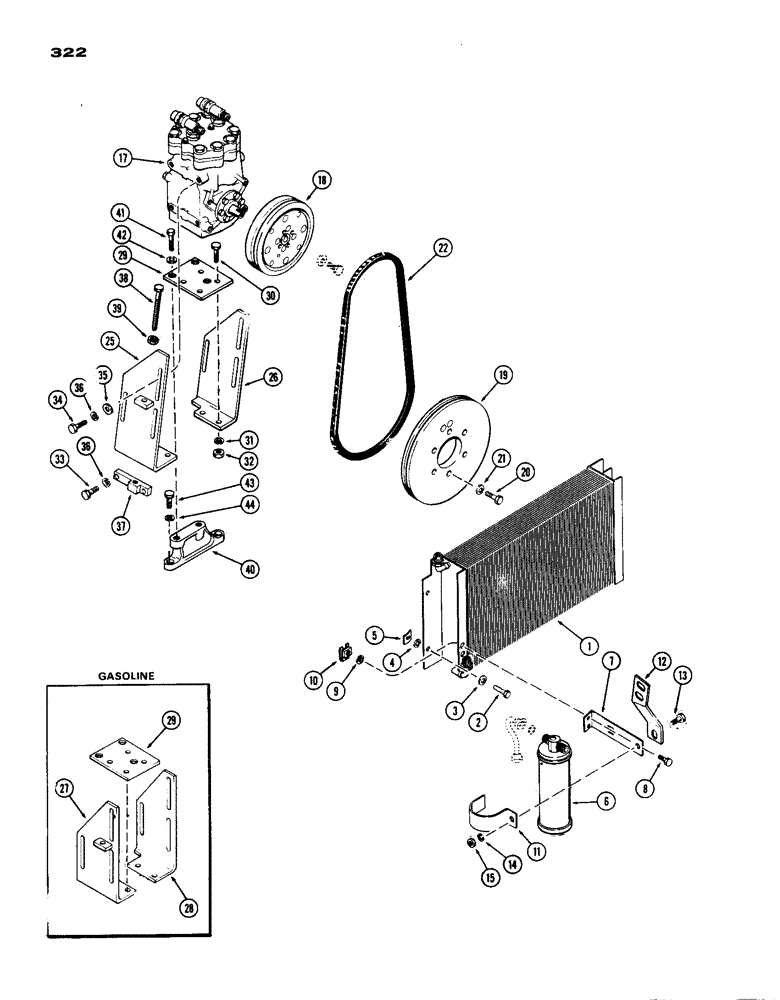

Запчасти Case IH 770 (322) - CAB, AIR CONDITIONER (09) - CHASSIS/ATTACHMENTS

1

A61687

COIL

- condenser

1шт.

2

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

3

95-4

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

4шт.

4

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

5

131-611

NUT,Ret, 1/4"-20

- 1/4" N.C. tinnerman

4шт.

6

A61688

TANK

RECEIVER - drier

1шт.

7

A61689

BRACKET - receiver

1шт.

8

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

9

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

- 1/4" "J" Type, Tinnerman

2шт.

11

A61193

CLAMP

- receiver

1шт.

12

A61877

BRACKET

-, Serial Range: receiver-grille

1шт.

13

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

17

A64810

AIRCOND. COMPRESSOR

COMPRESSOR - air conditioner (Replaces A61148)

1шт.

17

417888C93

AIRCOND. COMPRESSOR

Assy., A/C

1шт.

17

1924004C2

REMAN-A/C COMPRESSOR

Reman For New P/N 417888C93

1шт.

17

1924005C1

CORE-A/C COMPRESSOR

Return Number

1шт.

18

A61149

CLUTCH

- compressor electromagnetic

1шт.

19

A61156

PULLEY - compressor drive

1шт.

20

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- 3/8 x 1-1/2" N.C. hex.

6шт.

21

92-6

LOCK WASHER,3/8"

6шт.

22

A65692

BELT,72.83" L

Compressor Drive, Replaces A61158 72.83" L

1шт.

25

A61749

BRACKET - compressor mtg., R.H. (Diesel)

1шт.

26

A61751

BRACKET - compressor mtg., L.H. (Diesel)

1шт.

27

A61744

BRACKET - compressor mtg., R.H. (Gas)

1шт.

28

A61745

BRACKET - compressor mtg., L.H. (Gas)

1шт.

29

A61743

PLATE - compressor mtg. bracket adjusting (Diesel & Gas)

1шт.

30

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

31

92-6

LOCK WASHER,3/8"

4шт.

32

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

33

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

34

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

2шт.

35

95-6

WASHER,3/8"

- 7/16 x 1 x 5/64"

2шт.

36

92-6

LOCK WASHER,3/8"

6шт.

37

A61153

BLOCK - adjusting, compressor

2шт.

38

A61154

BOLT - adjusting, compressor, 3/8 x 4-1/4" N.C. hex.

2шт.

39

25-146

JAM NUT,Jam, 3/8"-16, G5

- 3/8" N.C. hex., jam

2шт.

40

A61155

BRACKET

SUPPORT - compressor mounting bracket

1шт.

41

13-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

3шт.

42

92-7

LOCK WASHER,7/16"

3шт.

43

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

2шт.

44

92-8

LOCK WASHER,1/2"

2шт.
