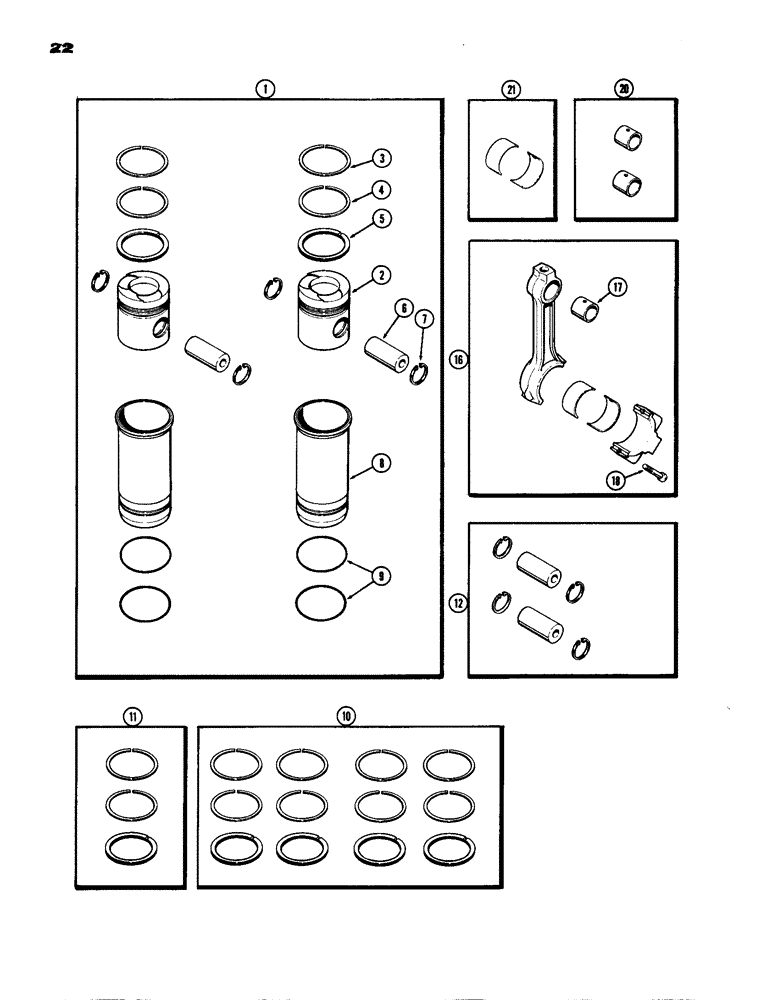

Запчасти Case IH 770 (022) - PISTON ASSEMBLY AND CONNECTING RODS, (267B) DIESEL ENGINE (02) - ENGINE

1

A41964

KIT

PISTON & SLEEVE KIT (Set of 2) (includes ref. 2 - 9)

2шт.

2

A58882

PISTON

- cylinder, 4-1/8" bore

2шт.

3

NSS

NOT SOLD SEPARAT

RING - compression (1st groove) (order ref. 11)

2шт.

4

NSS

NOT SOLD SEPARAT

RING - compression (2nd groove) (order ref. 11)

2шт.

5

NSS

NOT SOLD SEPARAT

RING - oil control (bottom groove) (order ref. 11)

2шт.

6

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. 12)

2шт.

7

T28550

SNAP RING,1.50", Int, #150

RING, snap, , piston pin 1.50", Int, #150

4шт.

8

A58883

SLEEVE

- piston (cylinder liner)

2шт.

9

A23315

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

"O" RING - sleeve packing

4шт.

10

A41968

RING

KIT - re-ring (Set of 4) (includes ref. 11)

1шт.

11

A41967

RING, PISTON

RING KIT - re-ring (Set of 1)

4шт.

12

A24517

PIN

KIT - w/retaining rings (Set of 2)

2шт.

16

A58862

ROD

ASSY. - connecting (includes ref. 17 & 18)

4шт.

17

NSS

NOT SOLD SEPARAT

BUSHING - piston pin (Order ref. 20)

1шт.

18

A27848

SPECIAL BOLT,1/2" - 20 x 2 3/16"

- connecting rod cap, 1/2 x 2-3/16" N.F. spec.

2шт.

20

A21722

BUSHING

KIT - piston pin (Set of 2)

2шт.

21

A20393

LINING

INSERT ASSY. - connecting rod bearing (Std.)

4шт.

21

A20569

JOURNAL

INSERT ASSY. - connecting rod bearing (-.002")

4шт.

21

A20571

BEARING LINER

INSERT ASSY. - connecting rod bearing (-.010")

4шт.

21

A20573

KIT

INSERT ASSY. - connecting rod bearing (-.020")

4шт.

21

A20576

LINING

INSERT ASSY. - connecting rod bearing (-.030")

4шт.
