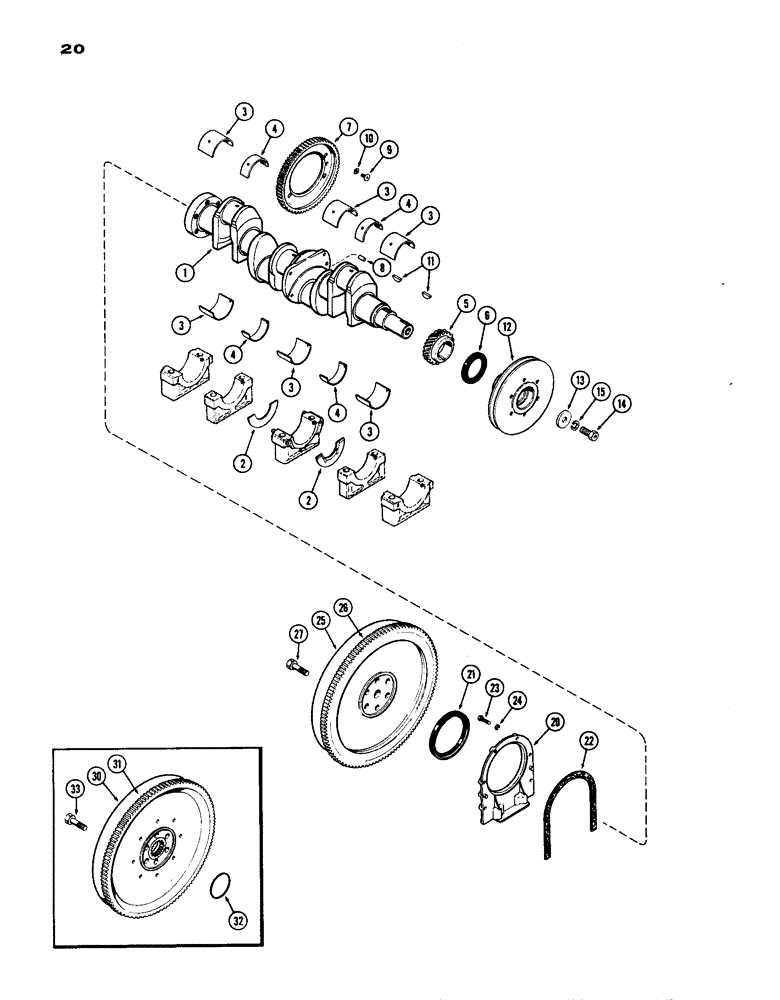

Запчасти Case IH 770 (020) - CRANKSHAFT AND FLYWHEEL, (267B) DIESEL ENGINE (02) - ENGINE

1

A58889

CRANKSHAFT

- engine

1шт.

2

A62573

THRUST WASHER,88.06mm ID x 114.3mm OD x 4.7mm Thk

WASHER - thrust, crankshaft (Std.) (.185" thick)

2шт.

2

A42932

BEARING WASHER,87.81mm ID x 114.55mm OD x 4.88mm Thk

WASHER - thrust, crankshaft (.191" thick) (aluminum)

2шт.

3

A42490

BEARING LINER

LINER - main bearing, wide (Std.) (Replaces A1987)

3шт.

3

A42486

LINING

LINER - main bearing, wide (-.002") (Replaces A42191)

3шт.

3

A42487

LINER

- main bearing, wide (-.010") (Replaces A42192)

3шт.

3

A42488

LINER

- main bearing, wide (-.020") (Replaces A42193)

3шт.

3

A42489

BEARING

LINER - main bearing, wide (-.030") (Replaces A42194)

3шт.

4

A42492

KIT

LINER - main bearing, narrow (Std.) (Replaces A20394)

2шт.

4

A42482

LINING

LINER - main bearing, narrow (-.002") (Replaces A20579)

2шт.

4

A42483

LINING

LINER - main bearing, narrow (-.010") (Replaces A20582)

2шт.

4

A42484

KIT

LINER - main bearing, narrow (-.020") (Replaces A20585)

2шт.

4

A42485

LINING

LINER - main bearing, narrow (-.030") (Replaces A20588)

2шт.

5

A58573

GEAR

- crankshaft

1шт.

6

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 29/64"

1шт.

7

A62450

GEAR

- balancer drive (86 teeth) (used w/2 gear balancer) (See Page 23B) (Ref. #8 not included)

1шт.

7

A22576

GEAR

- balancer drive (106 teeth) (used w/3 gear balancer) (See Page 25) (includes ref. 8)

1шт.

8

A8134

PIN

- balancer drive gear dowel

1шт.

9

A23583

HEX SOC SCREW,Flat Hd, 3/8" - 24 x 3/4"

SCREW - balancer drive gear

4шт.

10

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

WASHER, LOCK, Ext Csk Tooth, 3/8"

4шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

2шт.

12

A58746

PULLEY - fan drive

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A23085

OIL SEAL

- oil, crankshaft rear, 4-11/16 x 5-3/4 x 1/2"

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A59034

FLYWHEEL ASSY. - w/o spline (Power Shift) (includes ref. 26)

1шт.

26

A58778

GEAR

- ring (139 teeth)

1шт.

27

114-621

BOLT

- 5/8 x 1-3/4" N.C. hex

6шт.

30

A58777

FLYWHEEL ASSY. - w/spline (mechanical shift) (includes ref. 31)

1шт.

See figure 218 for flat plate with 6 bolt holes and oil seal that goes in the back of the flywheel

1шт.

31

A58778

GEAR

- ring (139 teeth)

1шт.

SEE FIGURE 218 FOR BEARING A28237

1шт.

32

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

"O" RING - flywheel to crankshaft, 2-3/4 x 3 x 1/8"

1шт.

33

114-622

X

BOLT - 5/8 x 2" N.F. hex

6шт.
