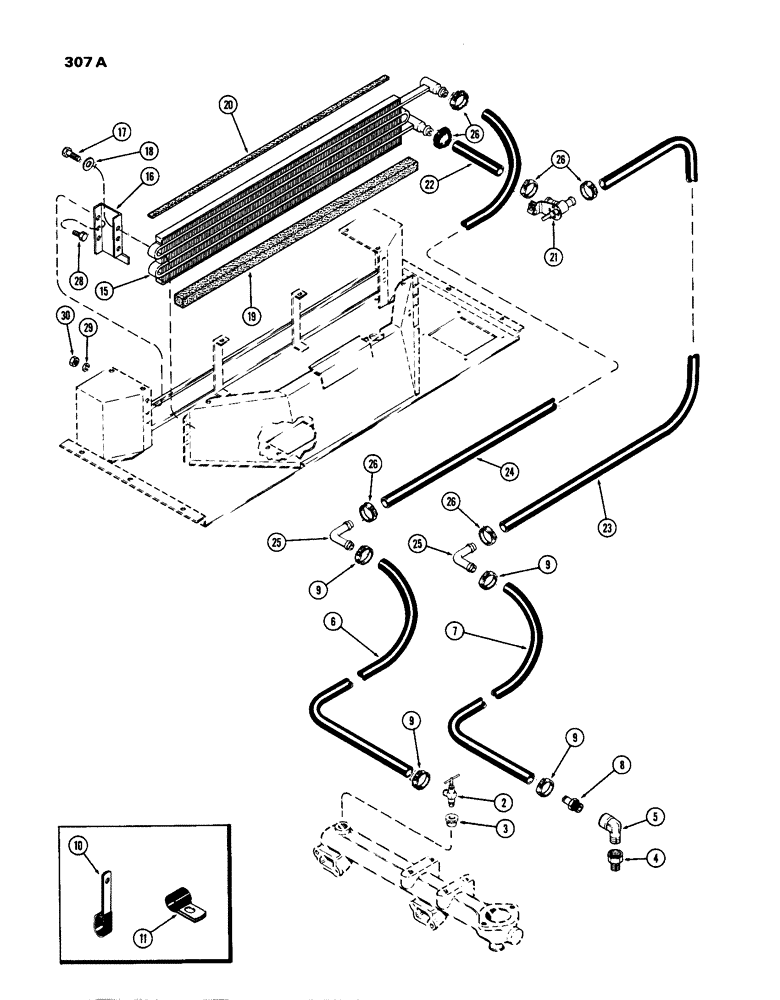

Запчасти Case IH 770 (307A) - CAB, PLENUM, WITH HEATER, HINSON (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A60153
ATTACHMENT - heater (Mach. Item), Includes: Ref. 2 - 26
1шт.
A60125
HEATER - attaching parts (Mach. Item), Includes: Ref. 2 - 11
1шт.
2
A16764
VALVE
- water manifold (Diesel & Gas)
1шт.
3
221-1056
BUSHING
- water manifold (Diesel)
1шт.
5
221-414
FITTING,90 Degree, 1/2"-14, NPT
ELBOW - 90deg. street (at water pump)
1шт.
6
NSS
NOT SOLD SEPARAT
HOSE - heater to water manifold (Order A42610) (43" long)
1шт.
7
NSS
NOT SOLD SEPARAT
HOSE - heater to water pump (Order A42610) (46" long)
1шт.
8
217-153
FITTING,5/8" Hose Barb x 1/2" Male NPTF
1шт.
9
214-253
HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm
CLAMP - heater hose, 9/16 to 1-1/16"
4шт.
10
A60824
CLIP
- hose (Diesel & Gas)
1шт.
11
R14668
CLAMP
CLIP - hose (2 used w/gas & 1 used w/diesel)
2шт.
15
A42611
CORE
- cab heater
1шт.
16
A42612
FILLER
- plenum, R.H., w/heater
1шт.
16
A42613
FILLER
- plenum, L.H., w/heater
1шт.
17
113-122
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
3шт.
18
195-103
WASHER,5/16"
- 3/8 x 7/8 x 1/32"
3шт.
19
A42912
FOAM -, Serial Range: core-plenum
1шт.
20
A42905
FOAM
- core top, 1/8 x 1/2 x 50' roll
1шт.
21
A42609
VALVE
- heater
1шт.
22
NSS
NOT SOLD SEPARAT
HOSE - heater, 7-1/2" (Order A42610)
1шт.
23
NSS
NOT SOLD SEPARAT
HOSE - heater, 72" (Order A42610)
1шт.
24
NSS
NOT SOLD SEPARAT
HOSE - heater, 78" (Order A42610)
1шт.
25
A60823
ELBOW
- hose
2шт.
26
214-256
HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm
CLAMP - hose, 1-3/16 to 1-3/4"
6шт.
A42614
CABLE
- heater control (See Figs. 311-313B)
1шт.
NSS
NOT SOLD SEPARAT
DECAL - plenum instrument panel
1шт.
A42610
LARGE HOSE
HOSE - heater, 5/8 x 1 x 50 foot roll
1шт.
28
113-101
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5
1шт.
29
192-20
LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND
WASHER, LOCK, 5/16"
1шт.
30
9635082
NUT,5/16" - 18, Gr 5
1шт.
Выбрано товаров: 31
