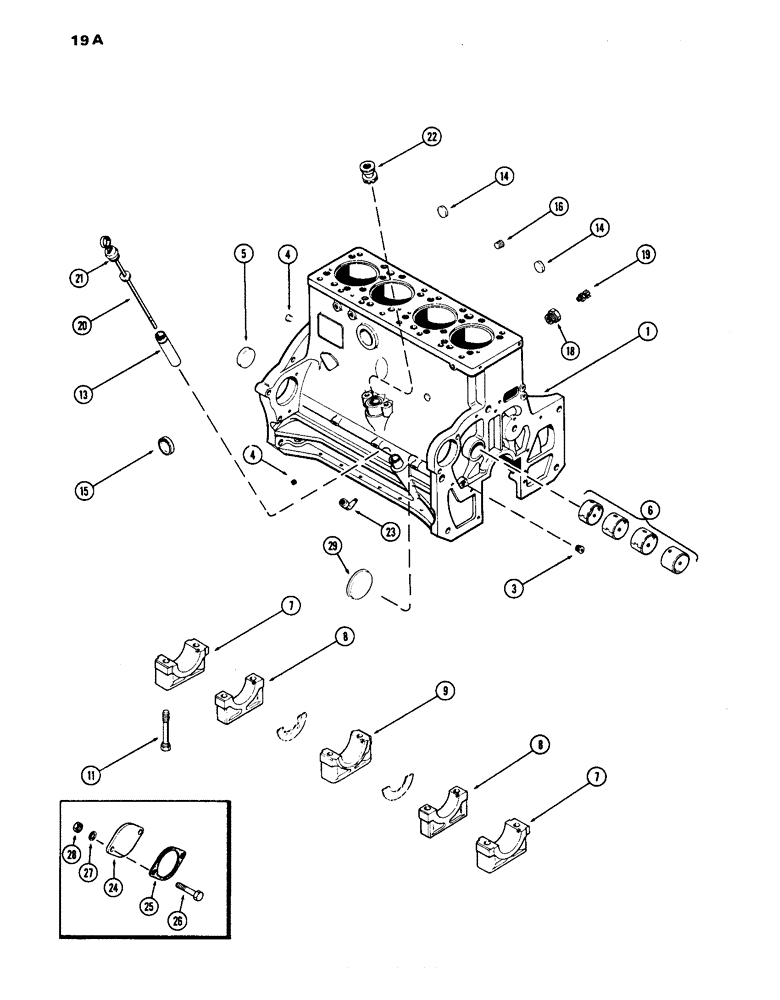

Запчасти Case IH 770 (019A) - CYLINDER BLOCK, (267B) DIESEL ENGINE, W/3 GEAR BALANCER (02) - ENGINE

A41960

BLOCK ASSY. - short (incl. stripped block, pistons, conn. rods & brgs., crankshaft & brgs., camshaft & bushings, timing gears & push rod lifters) (Casting #A58501) (Order A43051) (includes ref. 1 - 15)

1шт.

1

A41961

BLOCK

ASSY. - stripped (Casting #A58501) (includes ref. 3 - 15)

1шт.

3

221-1843

PLUG

- 3/8" P.T. hex, sckt. hd.

4шт.

4

221-41

PLUG

- 1/8" P.T., sltd. hdless

2шт.

5

A24361

PLUG

- camshaft hole, 2-3/8" cup type

1шт.

6

A23577

KIT

BUSHING KIT - camshaft

1шт.

7

A58783

BEARING CAP

CAP - main bearing, wide

2шт.

8

A58784

BEARING CAP

CAP - main bearing, narrow

2шт.

9

A58785

BEARING CAP

CAP - main bearing, thrust

1шт.

11

A58566

STEP BOLT

BOLT - 5/8 x 4-1/2" N.C. spec.

10шт.

13

A34540

TUBE

SOCKET - oil filler

1шт.

14

A58568

PLUG,Cup, 1 3/8", Stainless

- water gallery, 1-3/8" cup type

2шт.

15

A58569

PLUG,Cup, 2", Stainless

- 2" cup type

1шт.

16

221-845

PLUG,Hex Soc, 3/4"-14

- pipe, 3/4" hex, sckt. hd. (turbo drain hole)

1шт.

18

221-58

BUSHING,Hex, 3/4" x 1/4" NPT

- reducing, 3/4 x 1/4"

1шт.

19

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

20

A34541

DIPSTICK

- oil level (includes ref. 21)

1шт.

21

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - 3/4 x 1 x 1/8"

2шт.

22

A34266

DRIVE

ASSY. - tachometer

1шт.

23

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

- 1/8 x 1/8 x 90 deg.

1шт.

24

A58732

COVER

- pump mounting (Order A58750)

1шт.

25

A58617

GASKET

- pump mounting cover

1шт.

26

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- 3/8 x 3-1/2" N.C. hex

2шт.

27

92-6

LOCK WASHER,3/8"

2шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex

2шт.

29

A58750

PLUG,Cup, 3 1/4", Stainless

- pump opening cover, 3-17/64" dia. (Replaces ref. 24 - 28)

1шт.
