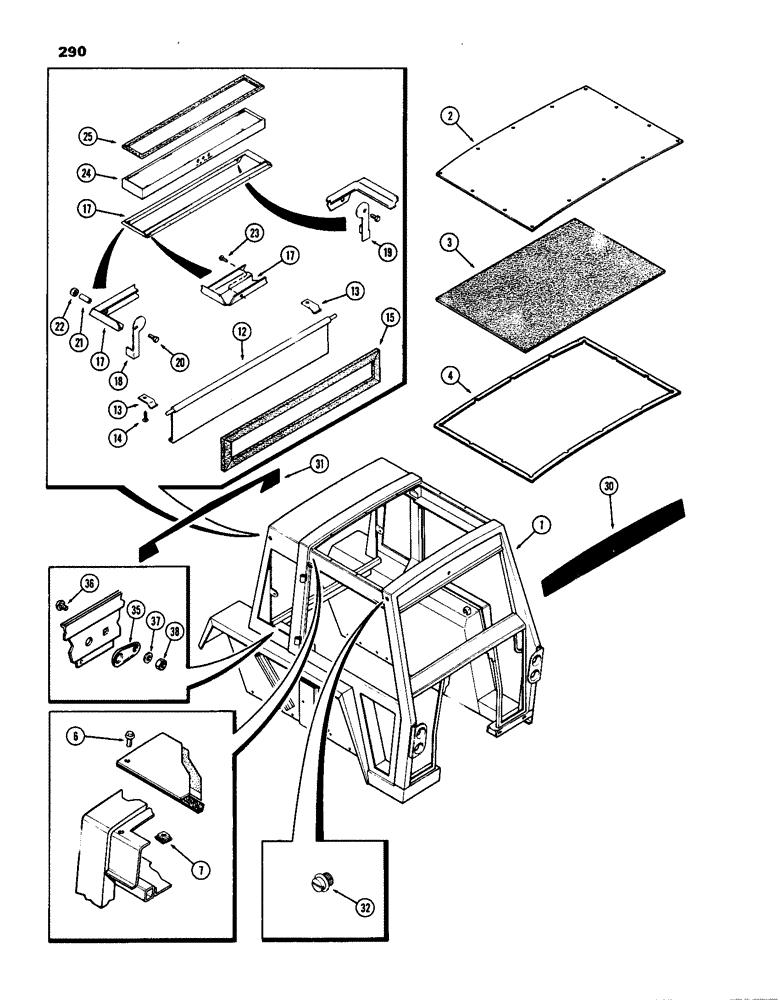

Запчасти Case IH 770 (290) - CAB, UPPER SHEET METAL, BETTENDORF (09) - CHASSIS/ATTACHMENTS

A62790

CAB - (w/o heater or air conditioner) (Mach. Item), Start Serial: 8676652

1шт.

A62791

CAB - (w/air conditioner) (Mach. Item), Start Serial: 8676737

1шт.

A62792

CAB - (w/heater) (Mach. Item), Start Serial: 8676655

1шт.

A62793

CAB - (w/air conditioner & heater) (Mach. Item), Start Serial: 8676605

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ASSY. - cab

1шт.

2

F63196

ROOF

ASSY. - cab

1шт.

3

F63221

FOAM - roof temperature barrier

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - roof, 1/4 x 3/8" (order A42676)

1шт.

A42676

SEAL

- roof (25' roll)

1шт.

6

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. hex. washer hd. mach.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" "J" type Tinnerman

18шт.

12

F89643

VALVE

ASSY. - pressure adjusting

1шт.

13

F63260

CLIP

- valve hinge

2шт.

14

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips hd., self-tapping

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL - valve, 1/8 x 1/2 x 16-1/2" (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

17

F89645

PLATE

ASSY. - filter inlet

1шт.

18

F63267

CAM - latch, R.H.

1шт.

19

F63266

LATCH

CAM - latch, L.H.

1шт.

20

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

21

T32262

SPACER - cam bolt

2шт.

22

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex., lock

2шт.

23

187-1032

SCREW,Cross Truss Hd, #10 x 1/2"

- #10 x 1/2" Phillips hd., self-tapping

7шт.

24

A42573

FILTER

- air intake

1шт.

25

F63197

SEAL - filter, 1/4 x 3/4 x 90-13/64" (Order 2-F63331 & 2-F63332)

1шт.

30

A42582

DECAL

- front panel

1шт.

31

321-1915

DECAL - rear crown

1шт.

35

F12598

PLATE

COVER - utility

1шт.

36

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT - 1/4 x 1/2" N.C. carr.

1шт.

37

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

38

131-171

NUT - 1/4" N.C. Esna

1шт.
