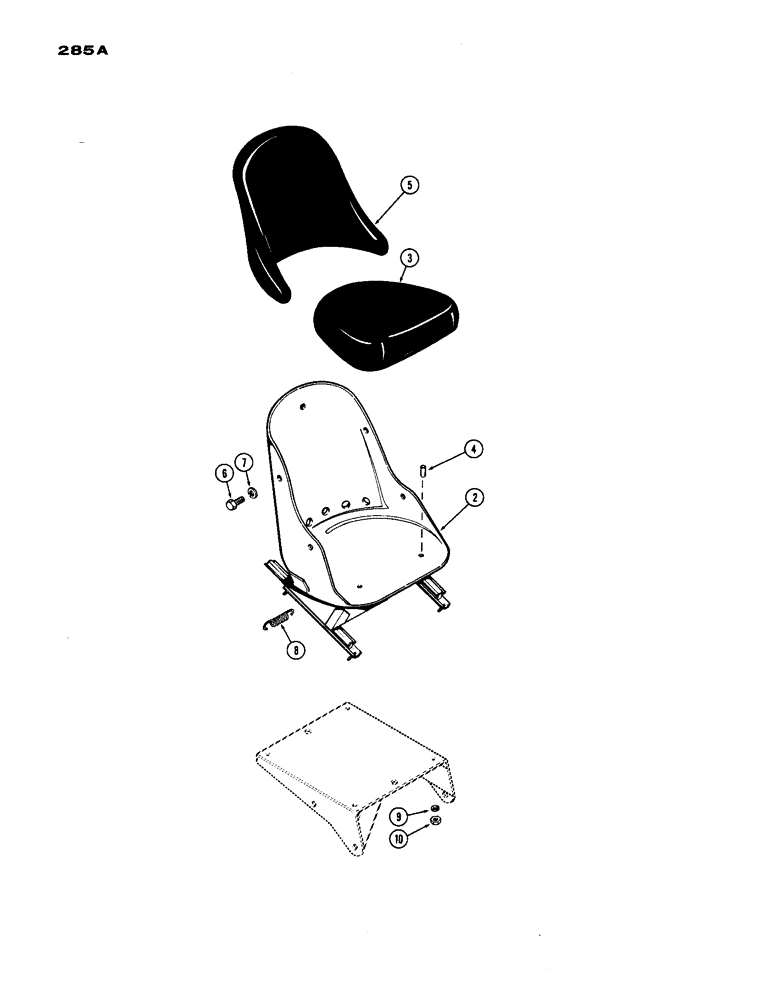

Запчасти Case IH 770 (285A) - BUCKET SEAT (09) - CHASSIS/ATTACHMENTS

A61223

SEAT

ASSY. - bucket, Includes: Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

SHELL - seat

1шт.

3

A42745

SEAT

CUSHION ASSY. - seat bottom

1шт.

4

L30534

X

PIN - cushion locating

2шт.

5

A42747

BACKREST

CUSHION ASSY. - seat backrest

1шт.

6

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

5шт.

7

195-104

WASHER,3/8"

- 7/16 x 1 x 5/32"

5шт.

8

A42299

SPRING

- adjuster

2шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

10

9635082

NUT,5/16" - 18, Gr 5

4шт.
