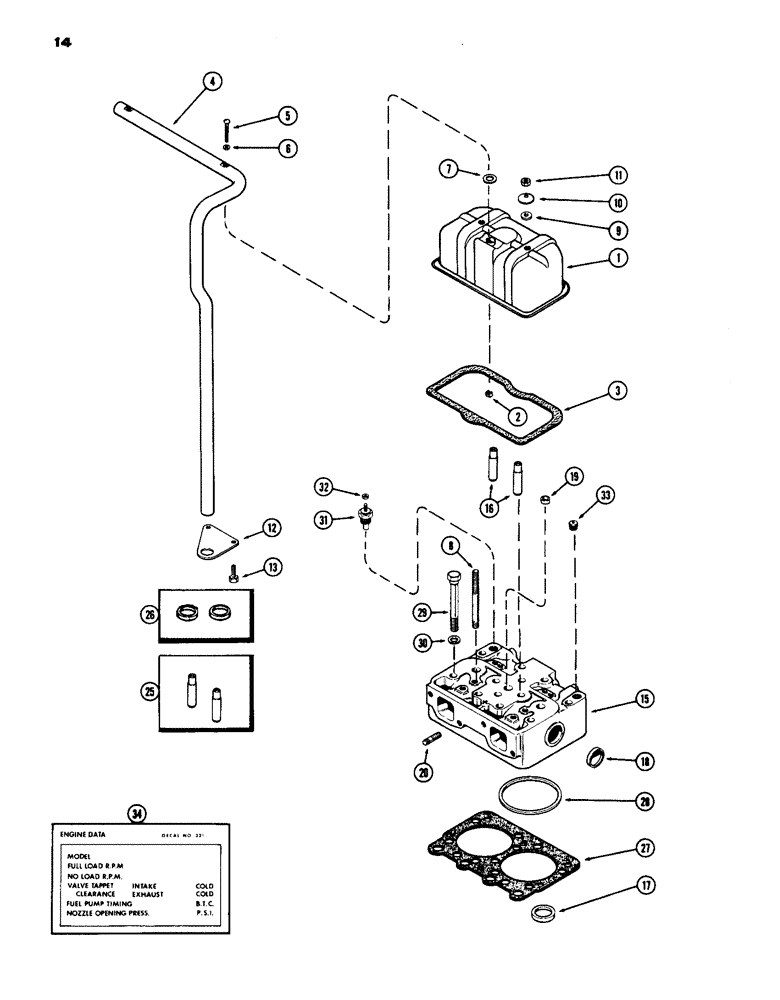

Запчасти Case IH 770 (014) - CYLINDER HEAD COVER, (267B) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

ASSY. - cylinder head (includes ref. 2)

2шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C., Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

- cylinder head cover (Replaces A58928)

2шт.

4

A59055

TUBE - breather

1шт.

5

75-440

SCREW

- mach., 1/4 x 2-1/2" N.C. rd. hd.

2шт.

6

A34133

GASKET

- breather tube screw

2шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

-, Serial Range: tube-cover

2шт.

8

A60885

STUD

- rocker arm brkt. & cyl. head cover

4шт.

9

A23684

GASKET

GASKET - cover stud

4шт.

10

A23683

WASHER

- cover stud, beveled

4шт.

11

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex

4шт.

12

A59054

BRACKET

- breather tube

1шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

BOLT - 3/8 x 1-1/2" N.C. sems

2шт.

15

A58885

CYLINDER

HEAD ASSY. - cylinder (includes ref. 16 - 19)

2шт.

16

NSS

NOT SOLD SEPARAT

GUIDES - intake & exhaust valves (Order ref. 25)

4шт.

17

NSS

NOT SOLD SEPARAT

INSERT - exhaust valve (Order ref. 26)

2шт.

18

A34124

PLUG,Cup, 1 5/8", Stainless

- 1-5/8" cup type

2шт.

19

A58620

PLUG,Cup, 3/4", Stainless

- 3/4" cup type

1шт.

20

A59077

STUD

- manifold mounting, 3/8" N.C. x 1-13/16"

16шт.

25

A41781

GUIDE

KIT - intake & exhaust (Set of 2)

4шт.

26

A41985

INSERT

KIT - exhaust valve (Set of 2)

2шт.

27

A62215

GASKET

- cylinder head

2шт.

28

A34686

RING

- fire, std.

4шт.

28

A34688

RING

- fire, thick (Coded w/blue stripe)

1шт.

29

A62732

STEP BOLT

BOLT - 5/8 x 5-5/8" N.C. hex

20шт.

30

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt

20шт.

31

F13156

SENDER UNIT

UNIT - temperature sending (in rear head) (See Figure 74) (Used w/A59681 gauge) (w/air cond.)

1шт.

31

A61787

TRANSMITTER

UNIT - temperature sending (in rear head) (See Figure 74) (Used w/A61786 gauge) (w/air cond.)

1шт.

31

A61787

TRANSMITTER

UNIT - temperature sending (in rear head) (See Figure 74) (Used w/A61785 gauge) (w/o air cond.)

1шт.

32

129-193

NUT,1 1/8"-12, G5

1-1/8" - 12

1шт.

33

221-843

PLUG,Hex Soc, 3/8"-18

- 3/8" P.T. hex, sckt. hd.

3шт.

34

321-1377

DECAL

- engine data

1шт.
