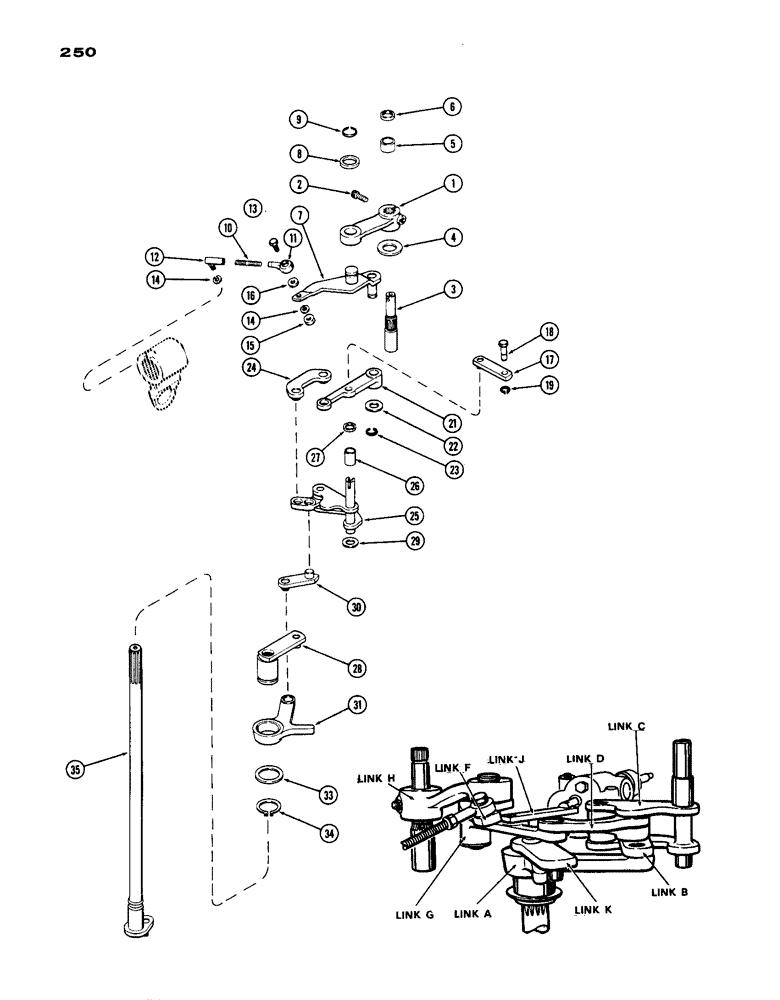

Запчасти Case IH 770 (250) - D.O.M. UPPER SENSING LINKAGE (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A32320
LEVER
- draft control (Link "H")
1шт.
3
A59599
SHAFT - manual, draft control
1шт.
4
A33316
WASHER - manual shaft, (1-1/32 x 1-11/16 x 12 ga.)
1шт.
5
A33314
SPACER
- manual shaft, (53/64 x 1-3/64 x 9/16")
1шт.
6
A32309
SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk
- oil, manual control shaft (3/4 x 1 x 1/8")
1шт.
7
A57088
LINK
LEVER - draft control (Link "F")
1шт.
8
F20286
WASHER
- "F" link (29/32 x 1-3/8 x 16 Ga.)
1шт.
9
F62205
RING, SNAP
SNAP RING - retaining, "F" link
1шт.
10
A32347
ROD
- draft control link
1шт.
11
A35134
BEARING
- link rod
1шт.
12
A27382
BALL
JOINT - draft control link
1шт.
13
13-514
BOLT,Hex, 5/16" - 18 x 7/8", Gr 5
Brg. to "F" link Hex, 5/16"-18 x 7/8", G5, Full Thd
1шт.
14
92-5
LOCK WASHER,5/16"
2шт.
15
25-155
JAM NUT,Jam, 5/16"-24, G5
- hex. (5/16" N.F. Jam)
1шт.
16
A32395
WASHER
SPACER - ball joint (25/64 x 9/16 x 16 Ga.)
1шт.
17
A32331
LINK
LEVER - draft control
1шт.
18
A32334
PIN
- "J" link to draft valve spool
1шт.
19
G46146
SNAP RING,#37, Ext
RING - snap, , draft valve spool pin #37, Ext
1шт.
21
A32335
LINK
- draft control (Link "G")
1шт.
22
B18080
WASHER
- "G" link (21/32 x 1-1/4 x 16 ga.)
1шт.
23
A26828
RING
SNAP RING - retaining, "G" link
1шт.
24
A57365
LEVER
- draft control (Link "D")
1шт.
25
A32310
LINK
- draft control (Link "C")
1шт.
26
A32914
SPACER
- sensitivity hub (21/32 x 3/4 x 1")
1шт.
27
A32308
OIL SEAL
- oil, sensitivity shaft (5/8 x 7/8 x 1/8")
1шт.
28
A33393
LEVER
- draft control (Link "K")
1шт.
29
A57090
WASHER
- "C" Link (21/32 x 1-1/8 x 23 Ga.)
1шт.
30
A57362
LINK
LEVER - draft control (Link "B")
1шт.
31
A32324
LEVER
- draft control (Link "A")
1шт.
33
B18302
WASHER
- "A" link
1шт.
34
R13338
SNAP RING,#150, Ext
RING - snap, , "K" link #150, Ext
1шт.
35
A34834
SHAFT
- draft signal
1шт.
Выбрано товаров: 33
