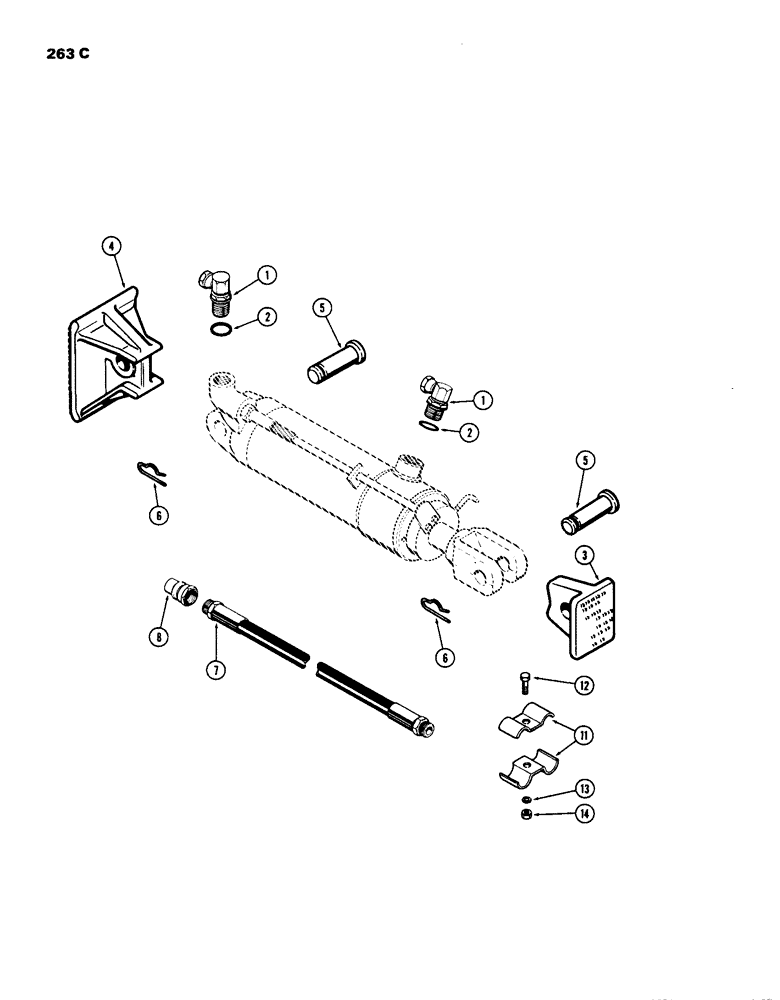

Запчасти Case IH 770 (263C) - HYDRAULIC CYLINDER ATTACHING PARTS (08) - HYDRAULICS

1

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90 deg. adapter, Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

3

A9163

PAD - hydraulic cylinder

1шт.

4

A57188

BASE

- hydraulic cylinder

1шт.

5

A27347

PIN

- cylinder retaining

2шт.

6

A29054

HAIR PIN COTTER

- internal hair

2шт.

7

A8204

HOSE - hydraulic (60" long)

1шт.

7

A8205

HOSE - hydraulic (96" long)

1шт.

7

A20816

HOSE

- hydrualic (106" long)

1шт.

7

A20817

HOSE

- hydraulic (118" long)

1шт.

8

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away (See Fig. 258)

1шт.

11

A27440

CLAMP

- hose

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.
