Запчасти Case IH 770 (263A) - 3 1/4" X 8" REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS

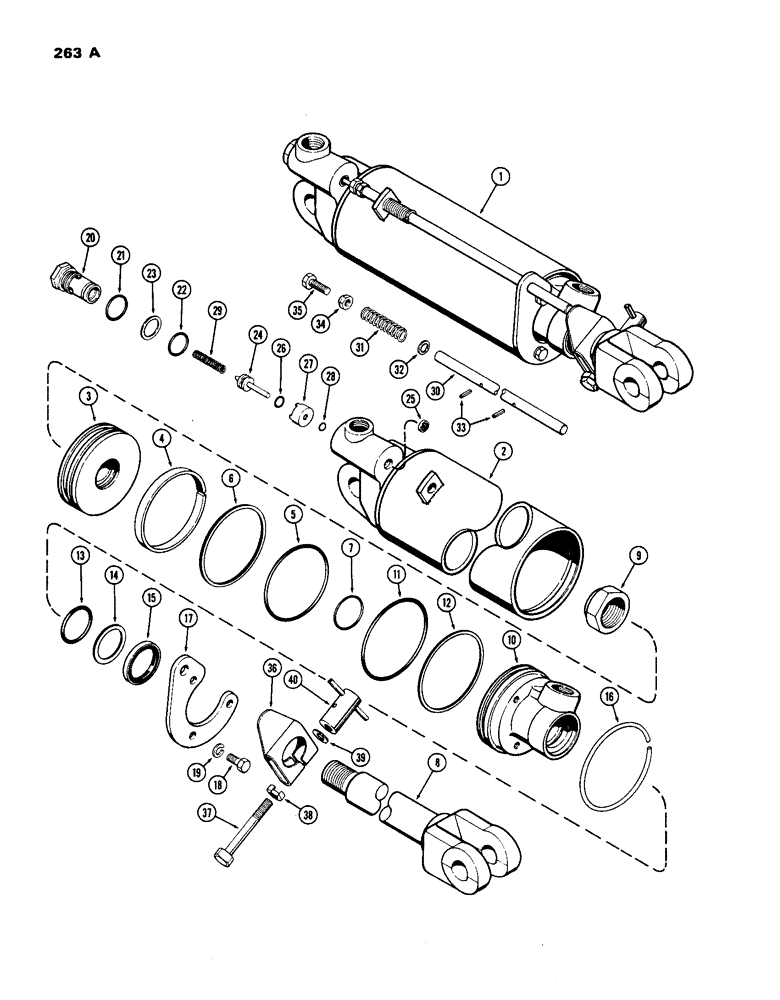

Схема запчастей Case IH 770 - (263A) - 3 1/4" X 8" REMOTE HYDRAULIC CYLINDER, WITH HYDRAULIC LIMIT STOP (08) - HYDRAULICS
15
23
26
18
20
5
38
17
6
37
16
4
39
2
22
9
40
28
36
33
34
12
19
7
3
13
21
1
35
31
32
10
25
30
24
14
11
8
27
29

Артикул

Название

Примечание

Количество

1

A34922

CYLINDER

ASSY. - hydraulic (Order G32083) (See Fig. 262), Includes: Ref. 2 - 40

1шт.

2

A41348

TUBE - cylinder

1шт.

3

A41177

PISTON - cylinder

1шт.

4

A41191

RING

- piston, outer (3-1/4" I.D. x 5/32")

1шт.

Part of cylinder seal kit P/N A41347

1шт.

5

A41185

O-RING,0.139" Thk x 2.859" ID, -233, Cl 5, 75 Duro

"O" RING - 2-7/8 x 3-1/8 x 1/8"

1шт.

Part of cylinder seal kit P/N A41347

1шт.

6

A41183

RING - wear, piston

1шт.

Part of cylinder seal kit P/N A41347

1шт.

7

A41184

O-RING,1.234" ID x 1.512" OD x 0.139"

"O" RING - 1-1/4 x 1-1/2 x 1/8"

1шт.

Part of cylinder seal kit P/N A41347

1шт.

8

A41179

ROD - piston

1шт.

9

A41189

LOCK NUT

NUT - 1" - 14 lock

1шт.

10

A41180

BEARING

- cylinder

1шт.

11

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" RING - 3 x 3-1/4 x 1/8"

1шт.

Part of cylinder seal kit P/N A41347

1шт.

12

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

- "O" ring back-up (Replaces A41188)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

13

A27577

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

"O" RING - 1-1/4 x 1-1/2 x 1/8"

1шт.

Part of cylinder seal kit P/N A41347

1шт.

14

T22277

OIL SEAL

RING - "O" ring back-up

1шт.

Part of cylinder seal kit P/N A41347

1шт.

15

D23962

SEAL

- oil, bearing (Replaces A41176)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

16

A41186

RING, LOCKING

RING - lock, bearing

1шт.

Part of cylinder seal kit P/N A41347

1шт.

17

A41182

PLATE - cylinder end

1шт.

18

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

19

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

20

A41351

PLUG - cylinder end & valve plunger body

1шт.

21

A41316

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

"O" RING - 7/8 x 1-1/16 x 3/32"

1шт.

Part of cylinder seal kit P/N A41347

1шт.

22

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - 11/16 x 7/8 x 3/32"

1шт.

Part of cylinder seal kit P/N A41347

1шт.

23

A41346

RING

- "O" ring back-up

1шт.

Part of cylinder seal kit P/N A41347

1шт.

24

A41430

PLUNGER

ASSY. - valve

1шт.

25

G31932

WIPER SEAL

WIPER - valve plunger (Replaces A41175)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

26

G31935

O-RING,0.174" ID x 0.377" OD

"O" RING - 3/16 x 3/8 x 3/32" (Replaces A41147)

1шт.

Part of cylinder seal kit P/N A41347

1шт.

27

A41429

SPACER

- valve

1шт.

28

A41160

INSERT

"O" RING - 23/64 x 9/16 x 3/32"

1шт.

Part of cylinder seal kit P/N A41347

1шт.

29

A41163

SPRING

- valve poppet

1шт.

30

A41153

ROD

- push

1шт.

31

A41154

SPRING

- push rod

1шт.

32

A41155

WASHER

- push rod spring seat

1шт.

33

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

2шт.

34

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - 5/16 x 18 lock

1шт.

35

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

36

A41349

STOP

- cylinder limit clamp

1шт.

37

114-115

BOLT,Hex, 5/16" - 24 x 2-3/4", Gr 5

1шт.

38

A41352

LOCK WASHER

LOCK - stop clamp bolt

1шт.

39

A41353

WASHER

- 1/2 x 7/8 x 1/16"

1шт.

40

A41615

LOCK NUT

NUT - 5/16" N.F. hex. lock

1шт.

A41347

SEAL,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

KIT - cylinder, Includes: Ref. 4 thru 7, 11 thru 16, 21, 22, 23, 25, 26 and 28

1шт.
