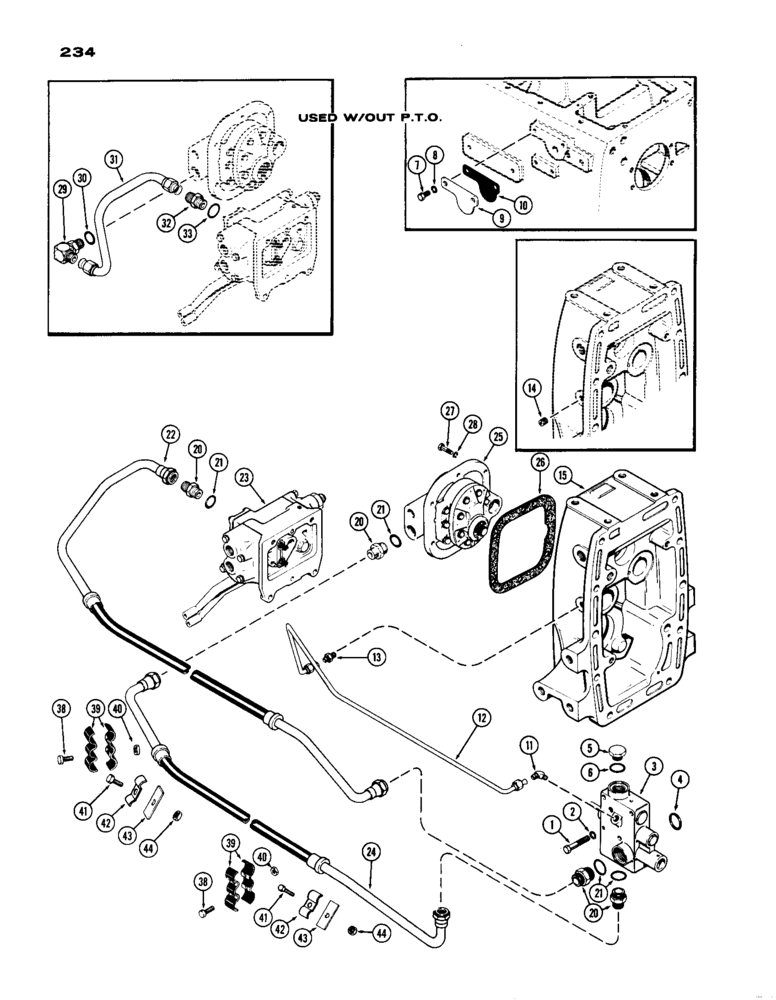

Запчасти Case IH 770 (234) - HYDRAULIC SYSTEM, MECHANICAL SHIFT (08) - HYDRAULICS

1

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

BOLT - hex. hd., (3/8 x 2-3/4" N.C.) (Used With P.T.O.)

3шт.

2

92-6

LOCK WASHER,3/8"

LOCK WASHER, , used with P.T.O. 3/8"

3шт.

3

A60270

VALVE

VALVE ASSY. - "Case" flow divider & P.T.O. control (Used With P.T.O.) (See Fig. 238 For Repairs)

1шт.

4

F62075

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

"O" RING - (1 x 3/4 x 1/8") (Used With P.T.O.)

1шт.

5

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

PLUG ASSY. - with "O" ring, (3/4" tube O.D. x 1-1/16" P.T.) (Used With P.T.O.), Includes: Ref. 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8") (Used With P.T.O)

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Cover to trans. case (Used w/o P.T.O.) Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

92-6

LOCK WASHER,3/8"

LOCK WASHER, , used without P.T.O. 3/8"

2шт.

9

A60295

COVER - trans. & P.T.O. oil return (Used Without P.T.O.)

1шт.

10

A62096

SPACER

SPARE PART GASKET - trans. & P.T.O. oil return cover (Used Without P.T.O.)

1шт.

11

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

ELBOW, (3/8" tube) (Used with PTO) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

12

A60289

TUBE

TUBE - "Case" flow divider & P.T.O. control valve to P.T.O. housing (Used With P.T.O.)

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - straight (3/8" tube O.D. x 1/4" P.T.) (Used With P.T.O.)

1шт.

14

217-433

PLUG,Hex Soc, 1/4" - 18 NPTF

PLUG, , Pipe, P.T.O. & hyd. housing (Used without P.T.O.) Hex Soc, 1/4"-18 NPTF

1шт.

15

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A59028)

1шт.

20

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, w/"O" ring (3/4" tube O.D. x 1-1/16" P.T.) (Used With P.T.O.), Incl. Ref. 21

4шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8") (Used With P.T.O.)

1шт.

22

A61861

TUBE ASSY.

TUBE - dual remote valve to "Case" flow divider & P.T.O. control valve (Used With P.T.O.) (Replaces A61080 & A60869)

1шт.

23

A42248

VALVE

VALVE ASSY. - dual remote (See Fig. 242 & 244 For Repairs)

1шт.

24

A61859

TUBE ASSY.

TUBE - "Case" flow divider & P.T.O. control valve to hyd. pump (Used With P.T.O.) (Replaces A61078 & A60868)

1шт.

25

A62051

PUMP

PUMP ASSY. - hyd. dual (See Fig. 240)

1шт.

25

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

25

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

26

A32096

GASKET

GASKET - hydraulic dual pump

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

28

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

29

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ELBOW ASSY. - 90 deg. adjustable, tube to hyd. pump (3/4" tube O.D. x 1-1/16" P.T.) (Used Without P.T.O.)

1шт.

30

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8") (Used Without P.T.O.), Includes: Ref. 31

1шт.

31

A60294

TUBE

TUBE - hyd. pump to hyd. dual valve (Used Without P.T.O.)

1шт.

32

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - straight, w/"O" ring (3/4" tube O.D. x 1-1/16" P.T.) (Used Without P.T.O.), Incl. Ref. 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8") (Used Without P.T.O.)

1шт.

38

13-518

BOLT,Hex, 5/16" - 18 x 1-1/8", Gr 5

BOLT, (Used with P.T.O.) Hex, 5/16"-18 x 1 1/8", G5

4шт.

39

A60862

CLAMP

CLAMP - tube (Used With P.T.O.)

4шт.

40

9635082

NUT,5/16" - 18, Gr 5

NUT - hex. (5/16" N.C.) (Used With P.T.O.)

4шт.

41

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, (Used with P.T.O.) Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

42

A61272

CLAMP

CLAMP - tube (Used With P.T.O.) (Replaces A60863)

2шт.

43

A60864

PLATE

PLATE - mounting, tube clamp (Used With P.T.O.)

2шт.

44

9635082

NUT,5/16" - 18, Gr 5

NUT - hex. (5/16" N.C.) (Used With P.T.O.)

2шт.
