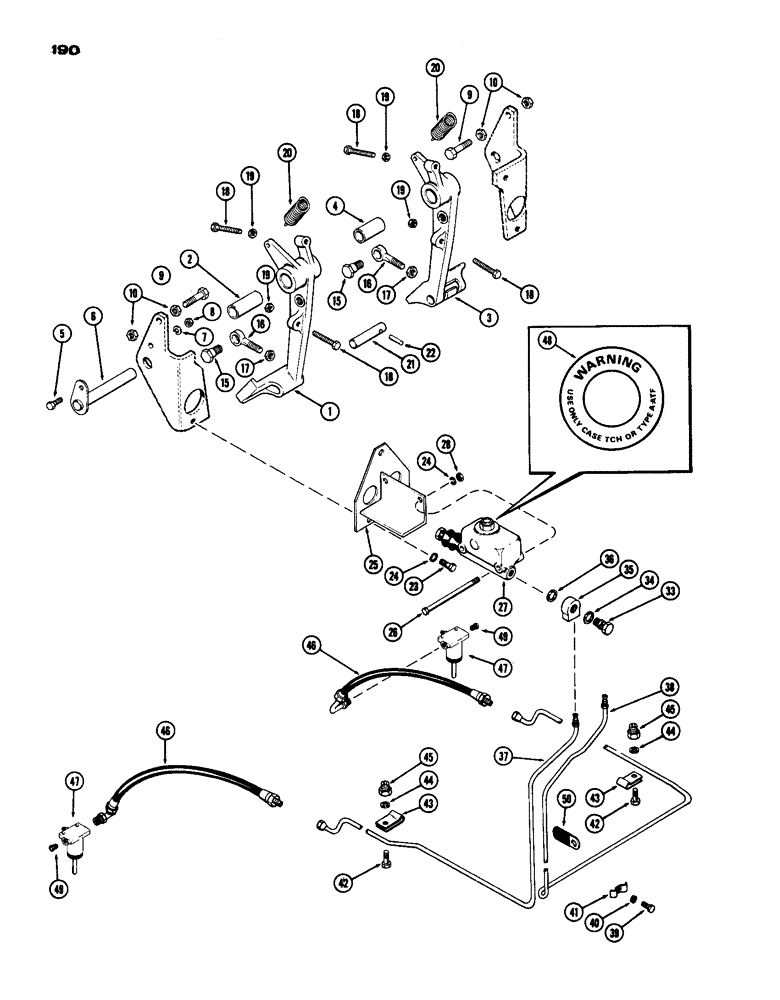

Запчасти Case IH 770 (190) - HYDRAULIC BRAKE SYSTEM (07) - BRAKES

1

A59394

PEDAL ASSY. - brake (R.H.), Includes: Ref. 2

1шт.

2

A59398

BUSHING

- brake pedal (R.H.) (3/4 x 1 x 2-3/5")

1шт.

3

A59471

PEDAL ASSY. - brake (L.H.), Includes: Ref. 4

1шт.

4

A59475

BUSHING

- brake pedal (L.H.) (3/4 x 1 x 2")

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Pivot shaft Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

6

A59452

SHAFT

- pivot, brake pedal

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Spring support Hex, 3/8"-16 x 1 3/4", G5

2шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8" N.C. Jam)

4шт.

15

A59152

STEP BOLT

BOLT - shoulder, brake pedal to master cylinder

2шт.

16

A61269

BOLT

- eye, master brake cylinder push rod

2шт.

17

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8" N.C. Jam)

2шт.

18

A59472

BOLT

- hex. hd., brake pedal stop (5/16 x 2-1/4" N.C.)

4шт.

19

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. (5/16" N.C. Jam)

4шт.

20

A59470

SPRING

- return, brake pedal

2шт.

21

A59454

PIN

- brake pedal lock

1шт.

22

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Brake pedal lock pin 1/4" x 1 1/2", Slotted

1шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Support to firewall Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

24

92-6

LOCK WASHER,3/8"

5шт.

25

A59535

SUPPORT - master brake cylinder

1шт.

26

13-688

BULB,Hex, 3/8" - 16 x 5 1/2", Gr 5

BOLT - hex. hd., support to master brake cylinder (3/8 x 5-1/2" N.C.)

2шт.

27

A59534

CYLINDER

ASSY. - master brake (See Fig. 196 For Repairs)

2шт.

28

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

2шт.

33

A12864

BOLT

- tube fitting connection (Replaces A59477)

2шт.

34

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, master cylinder (5/8 x 13/16 x 1/32") (Replaces A59476)

2шт.

35

A18531

FITTING

- brake tube

2шт.

36

NLS

NO LONGER SERVICED

- inner, master cylinder (1/2 x 5/8 x 1/32") (Replaces A59474)

2шт.

37

A59478

TUBE

- hydraulic, brake (R.H.)

1шт.

38

A59479

TUBE

- hydraulic, brake (L.H.)

1шт.

39

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Clamp to firewall Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

41

A60556

CLAMP - hydraulic tube, brake

1шт.

42

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

43

A59793

CLIP - brake tubing

4шт.

44

95-4

WASHER,1/4"

- wrought (5/16 x 3/4 x 1/16")

4шт.

45

A59481

NUT

- blind fastener, brake tubing (in platform)

4шт.

46

A59483

HOSE

- brake

2шт.

47

A62483

CYLINDER

ASSY. - brake slave (7/8" dia.)(See Page 197) (Replaces A59611)

2шт.

48

A61114

DECAL

PLATE - warning, master brake cylinder

2шт.

49

222-1062

PLUG,7/16"-24, Inv Fl

- steel (1/4" tube O.D. x 7/16-24 straight thread)

2шт.

50

A22880

CLIP

- L.H. brake tube to left front firewall to platform bolt

1шт.
