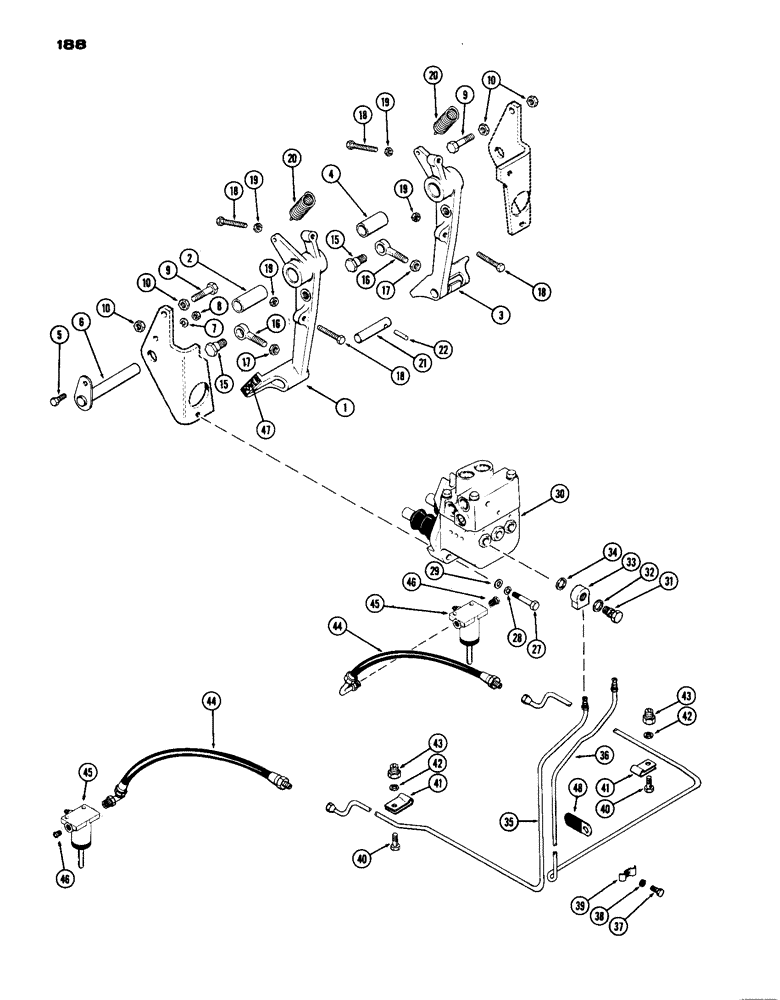

Запчасти Case IH 770 (188) - POWER BRAKE SYSTEM (07) - BRAKES

1

A59394

PEDAL ASSY. - brake (R.H.), Includes: Ref. 2

1шт.

2

A59398

BUSHING

- brake pedal (R.H.) (3/4 x 1 x 2-3/5")

1шт.

3

A59471

PEDAL ASSY. - brake (L.H.), Includes: Ref. 4

1шт.

4

A59475

BUSHING

- brake pedal (L.H.) (3/4 x 1 x 2")

1шт.

5

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Pivot shaft Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

6

A59452

SHAFT

- pivot, brake pedal

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

1шт.

9

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Spring support Hex, 3/8"-16 x 1 3/4", G5

2шт.

10

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8" N.C. jam)

4шт.

15

A59152

STEP BOLT

BOLT - shoulder, brake pedal to master cylinder

2шт.

16

A59538

BOLT

BOLT - eye, brake cyl. push rod

2шт.

17

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. (3/8" N.C. jam)

2шт.

18

A59472

BOLT

- hex. hd., brake pedal stop (5/16 x 2-1/4" N.C.)

4шт.

19

25-145

JAM NUT,Jam, 5/16"-18, G5

- hex. (5/16" N.C. jam)

4шт.

20

A59470

SPRING

- return, brake pedal

2шт.

21

A59454

PIN

- brake pedal lock

1шт.

22

138-138

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, , Brake pedal lock pin 1/4" x 1 1/2", Slotted

1шт.

27

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Valve to firewall Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Valve to firewall Hex, 3/8"-16 x 2", G5

2шт.

28

92-6

LOCK WASHER,3/8"

3шт.

29

95-6

WASHER,3/8"

- wrought (7/16 x 1 x 5/64")

3шт.

30

REF

INSTRUCTION

VALVE ASSY. - power brake (Replaces A61900 & A60640) (See Figs. 192-195A)

1шт.

31

A59477

STEP BOLT

BOLT - tube fitting connection

2шт.

32

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, master cylinder (5/8 x 13/16 x 1/32") (Replaces A59476)

2шт.

33

A18531

FITTING

- brake tube

2шт.

34

A59474

GASKET

- inner, master cylinder (1/2 x 5/8 x 1/32")

2шт.

35

A59478

TUBE

- hydrualic, brake (R.H.)

1шт.

36

A59479

TUBE

- hydraulic, brake (L.H.)

1шт.

37

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Clamp to firewall Hex, 1/4"-20 x 1/2", G5, Full Thd

1шт.

38

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

39

A60556

CLAMP - hydraulic tube, brake

1шт.

40

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

41

A59793

CLIP - brake tubing

4шт.

42

95-4

WASHER,1/4"

- wrought (5/16 x 3/4 x 1/16")

4шт.

43

A59481

NUT

- blind fastener, brake tubing (in platform)

4шт.

44

A59483

HOSE

- brake

2шт.

45

A62483

CYLINDER

ASSY. - brake slave (7/8" diameter) (See Fig.196) (Replaces A59611)

2шт.

46

222-1062

PLUG,7/16"-24, Inv Fl

- steel (1/4" tube O.D. x 7/16-24 straight thread)

2шт.

47

321-1623

DECAL

- power brake (R.H. side of brake pedals)

1шт.

48

A22880

CLIP

- L.H. brake tube to left front firewall to platform bolt

1шт.
