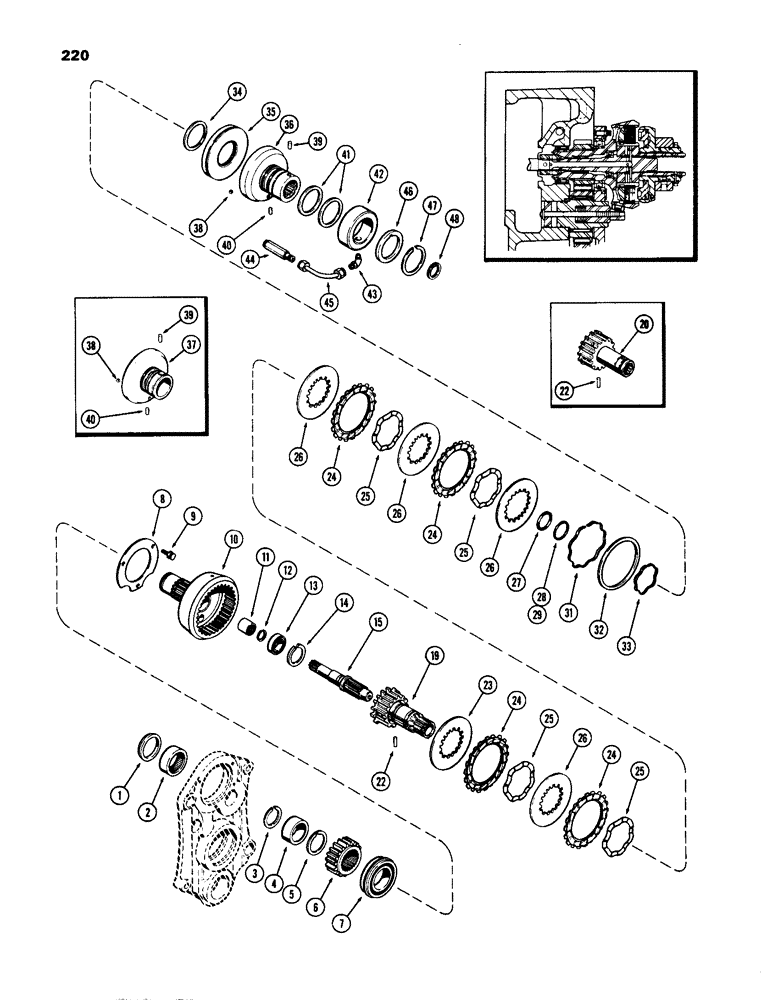

Запчасти Case IH 770 (220) - P.T.O. CLUTCH AND DRIVE (06) - POWER TRAIN

1

A33007

RING

- P.T.O. clutch drum oil restrictor

1шт.

2

A21507

NEEDLE BEARING,Needle, 52.38mm ID x 64.29mm OD x 19.05mm W

BEARING - needle, P.T.O. clutch drum

1шт.

3

A33323

RING

- snap, retaining, clutch drum bearing race

1шт.

4

A33320

NEEDLE BEARING,1.8125" ID x 2.0625" OD x 1.01"

RACE - inner, clutch drum needle bearing

1шт.

5

A32413

SNAP RING,#212, 1.997", Ext

RING - snap, pinion retaining

1шт.

6

A32435

GEAR

PINION - P.T.O. driver

1шт.

7

A33537

BALL BEARING,54.99mm ID x 90mm OD x 18mm W

BEARING - ball, clutch drum, outer

1шт.

8

A59019

RING

- clamp, outer bearing retaining

1шт.

9

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - 5/16 x 3/4" N.C. Ferry cap

3шт.

10

A62887

DRUM

- P.T.O. clutch and brake (Replaces A59017), Includes: Ref. 11

1шт.

11

A28244

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 25.4mm W

BEARING - needle, P.T.O. clutch drum

1шт.

12

A32438

SNAP RING

RING - snap, bearing retaining, outer

1шт.

13

A32437

BALL BEARING,24.99mm ID x 47mm OD x 12mm W

BEARING - ball, clutch drum, inner

1шт.

14

A32439

RING

- snap, bearing retaining, inner

1шт.

15

A59020

SHAFT

- drive, hydraulic pump

1шт.

19

A62192

HUB

- P.T.O. clutch (w/spline)

1шт.

20

A59002

HUB

- P.T.O. clutch (w/o spline)(order 1-A62192, 1-A62193, 1-A62194, 1-A62195 & 1-A62200)

1шт.

22

138-58

LOCK PIN,1/8" x 13/16", Slotted

PIN - , . clutch hub to pump drive shaft 1/8" x 13/16", Slotted

1шт.

23

A34570

LARGE PLATE

PLATE - backing, P.T.O. clutch

1шт.

24

A59231

PLATE

- drive, sintered, P.T.O. clutch

4шт.

25

A59013

SPRING

- P.T.O. clutch separator

4шт.

26

A65425

PLATE

- driven, steel, P.T.O. clutch (Replaces A57170)

4шт.

27

A59004

O-RING,1.362" ID x 1.568" OD

"O" RING - 1-23/64 x 1-9/16 x 3/32" (used w/A59003 carrier)

1шт.

28

A62193

O-RING,1.424" ID x 1.63" OD

"O" RING - 1-7/16 x 1-5/8 x 3/32" (used w/A62200 carrier)

1шт.

29

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" RING - 1-9/16 x 1-3/4 x 3/32" (used w/A59003 carrier) (Replaces A57390)

1шт.

31

A59012

SPRING

- expander, P.T.O. clutch piston

1шт.

32

A59011

RING

- seal, P.T.O. clutch piston

1шт.

33

A59010

SPRING

- expander, P.T.O. clutch piston

1шт.

34

A59009

RING

- sealing, P.T.O. clutch piston

1шт.

35

A59008

PISTON

- P.T.O. clutch

1шт.

36

A62200

CARRIER

- P.T.O. clutch piston (w/spline)

1шт.

37

A59003

CARRIER

- P.T.O. clutch piston (w/o spline) (Order 1-A62192, 1-A62193, 1-A62194, 1-A62195 & 1-A62200)

1шт.

38

211-6

BALL,7/32" Dia

- (chrome plate), clutch piston carrier 7/32" Dia

1шт.

39

135-138

GROOVED PIN,3/16" x 5/8", Type A, Hardened

PIN - grooved, , shearproof 3/16" x 5/8", Type A, Hardened

1шт.

40

138-2044

PIN,1/16" x 1/2", Coiled

- spirol roll, (1/16 x 1/2")

1шт.

41

A59005

SEAL

RING - seal, clutch piston carrier

2шт.

42

A59006

COLLAR

- P.T.O. clutch

1шт.

43

222-4047

ELBOW

- clutch feed tube, 1/4" P.T., 3/8" tube

1шт.

44

A59015

CONNECTOR, ELEC

CONNECTOR - male, clutch feed tube (in P.T.O. housing)

1шт.

45

A62355

TUBE

- P.T.O. clutch feed (Replaces A59014)

1шт.

46

A62849

WASHER,58.67mm ID x 76.2mm OD x 6.35mm Thk

- retaining, P.T.O. clutch collar (Replaces A59007)

1шт.

47

A32300

SNAP RING,#225, 2.174", Ext

RING - snap, P.T.O. clutch piston carrier

1шт.

48

A62195

SNAP RING,#156K, 1.453", Ext, Spiral

RING - snap, P.T.O. clutch piston carrier, external (used w/A62200 carrier)

1шт.

48

A26946

RING

- snap, P.T.O. clutch piston carrier, external (used w/A59003 carrier)

1шт.
