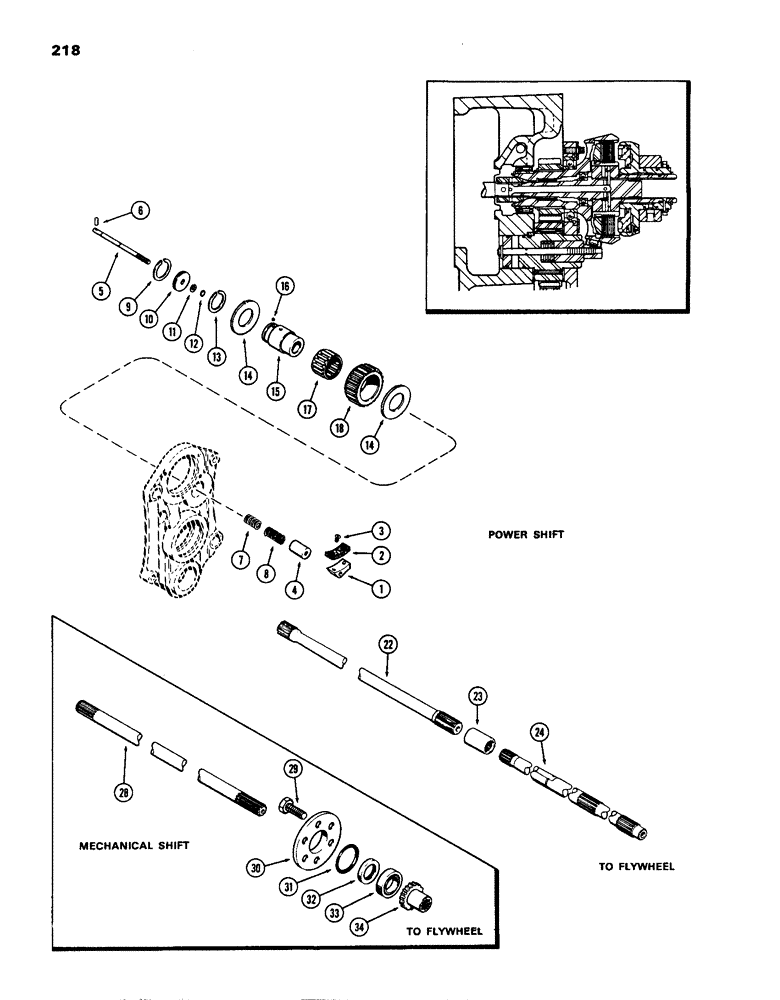

Запчасти Case IH 770 (218) - P.T.O. 1ST IDLER AND BRAKE (06) - POWER TRAIN

A65709

SHOE

ASSY - P.T.O. brake (Replaces A58990), Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

SHOE - P.T.O. brake (Order A65709)

1шт.

2

A25599

FACING

KIT - P.T.O. brake, Includes: Ref. 3

1шт.

3

187-1012

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self tapping (#10 N.C. x 3/8")

2шт.

4

NSS

NOT SOLD SEPARAT

PISTON - P.T.O. brake apply (Order A65709)

1шт.

5

NSS

NOT SOLD SEPARAT

ROD - connecting, P.T.O. brake (Order A65709)

1шт.

6

138-2037

PIN,1/8" x 3/4", Coiled

1шт.

7

A32451

SPRING

- actuating, P.T.O. brake

1шт.

8

D38446

SPRING

- actuating, P.T.O. brake (1-1/4" free length)

1шт.

9

A58989

RING

- seal, P.T.O. brake release piston

1шт.

10

A58994

PISTON

- P.T.O. brake release

1шт.

11

G46146

SNAP RING,#37, Ext

RING - snap, , external (P.T.O. brake connecting rod) #37, Ext

1шт.

12

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - P.T.O. brake rod

1шт.

13

A58989

RING

- seal (on P.T.O. 1st idler shaft)

1шт.

14

A32401

WASHER,44.83mm ID x 82.55mm OD x 1.6mm Thk

- P.T.O. 1st idler shaft

2шт.

15

A58988

SHAFT

- P.T.O. 1st idler

1шт.

16

211-7

BALL,1/4" Dia

- chrome steel 1/4" Dia

1шт.

17

A34137

NEEDLE BEARING,2" ID x 2.3770" OD x 1.5"

BEARING - roller, 1st idler gear

1шт.

18

A34136

GEAR

- 1st idler (25 teeth)

1шт.

22

A58414

SHAFT

- drive, rear, P.T.O. (Power Shift)

1шт.

23

A37662

COUPLING, BREAK AWAY

COUPLING - drive shaft, front & rear, P.T.O. (Power Shift)

1шт.

24

A59931

SHAFT - drive, front, trans. & P.T.O. (Powr Shift)

1шт.

28

A32459

SHAFT - drive, P.T.O. & hyd. pump

1шт.

29

114-622

X

BOLT - 5/8 x 2" N.F. hex., P.T.O. shaft

6шт.

30

A7145

RETAINER

- oil seal, clutch shaft, front, P.T.O.

1шт.

31

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" RING - 2-1/2 x 2-3/4 x 1/8", P.T.O. shaft

1шт.

32

A57479

OIL SEAL

- oil, clutch shaft, front (1-1/2 x 2-1/8 x 7/16"), P.T.O.

1шт.

33

A28237

BALL BEARING,34.99mm ID x 62mm OD x 14mm W

BEARING - ball, clutch shaft (in flywheel), P.T.O.

1шт.

34

A28234

SLEEVE

- drive shaft, P.T.O. and hyd. pump

1шт.
