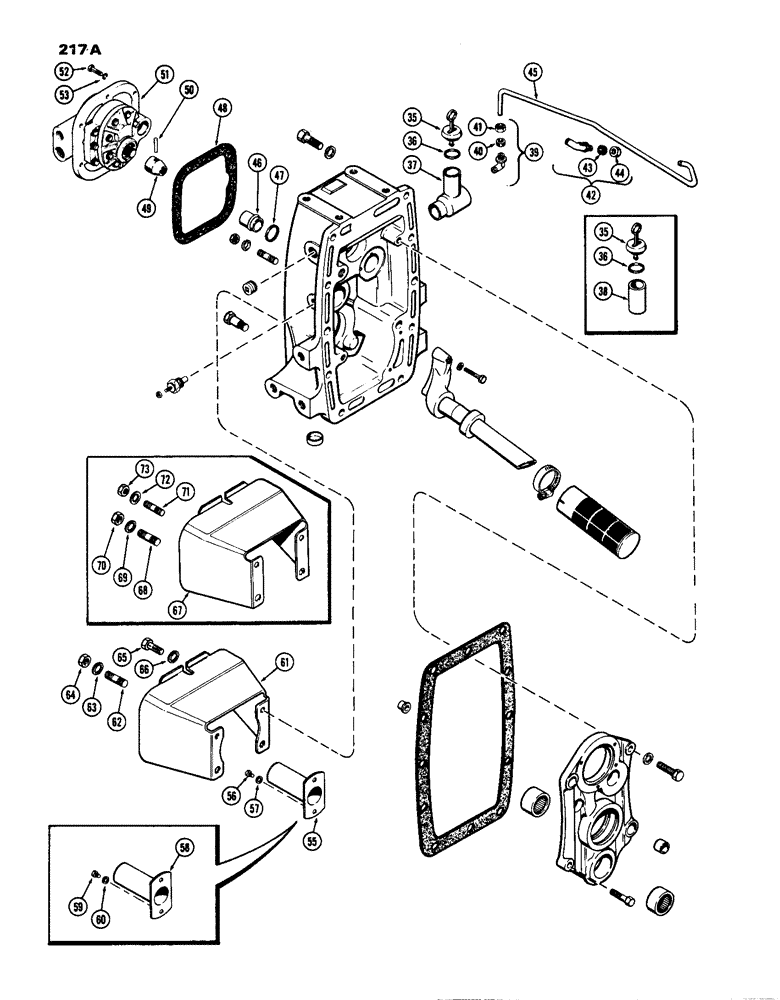

Запчасти Case IH 770 (217A) - P.T.O. HOUSING (06) - POWER TRAIN

35

A59123

BREATHER

PLUG ASSY. - filler, Includes: Ref. 36

1шт.

36

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - 1 x 1-1/4 x 1/8"

1шт.

37

A62172

TUBE

TUBE ASSY. - oil filler (used w/A62190 housing)

1шт.

38

A59122

SPARE PART TUBE - oil filler (used w/A59028 housing)

1шт.

39

222-48

ELBOW,90º, 13/16"-18 Fem x 3/8"-18 NPTF

ELBOW ASSY - male, 3/8" P.T., 3/8" tube, Includes: Ref. 40 and 41

1шт.

40

222-104

SLEEVE,3/8" Tube

SLEEVE - for 3/8" Tube

1шт.

41

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

42

222-47

ELBOW,90 Degree, 5/8"-24 Fem x 1/4"-27 NPTF

ELBOW ASSY. - male, 1/4" P.T., 3/8" tube, Includes: Ref. 43 and 44

1шт.

43

222-104

SLEEVE,3/8" Tube

SLEEVE - for 3/8" Tube

1шт.

44

222-114

NUT,5/8"-24

NUT - for 3/8" tube

1шт.

45

A59299

TUBE

TUBE - P.T.O. clutch lubrication

1шт.

46

A58983

TUBE

TUBE - hyd. pump inlet

1шт.

47

A30915

O-RING,0.139" Thk x 1.359" ID, -220, Cl 5, 75 Duro

"O" RING - 1-3/8 x 1-5/8 x 1/8"

1шт.

48

A32096

GASKET

GASKET - hydraulic dual pump

1шт.

49

A32097

COUPLING, BREAK AWAY

COUPLING - hydraulic dual pump shaft

1шт.

50

138-2011

PIN,1/8" x 1 1/4", Coiled

PIN, . hyd. pump shaft coupling 1/8" x 1 1/4", Coiled

1шт.

51

A62051

PUMP

PUMP ASSY. - hyd. dual (See Fig. 240)

1шт.

51

AR62051

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

51

AC62051

CORE-HYDRAULIC PUMP

Return Number

1шт.

52

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

6шт.

53

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

6шт.

55

A32456

SPARE PART GUARD ASSY. - output shaft (single speed)

1шт.

56

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

BOLT, (Single speed) Hex, 5/16"-18 x 1/2", G5, Full Thd

2шт.

57

92-5

LOCK WASHER,5/16"

LOCK WASHER, (single speed) 5/16"

2шт.

58

A58238

GUARD

SPARE PART GUARD - output shaft (dual speed)

1шт.

59

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

BOLT, (Dual speed) Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

60

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Dual speed 1/4"

2шт.

61

A62391

GUARD

SHIELD - output shaft, Start Serial: 2363134

1шт.

62

A58195

STUD

STUD - 5/8" N.C. x 3-1/2"

2шт.

63

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

64

25-1010

NUT,5/8"-11, G5

NUT, 5/8"-11, G5

2шт.

65

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

BOLT, , Use w/dual speed Hex, 1/2"-13 x 1 1/2", G5, Full Thd

2шт.

65

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

BOLT - 1/2 x 1-3/4" N.C. hex. (use w/single speed)

2шт.

66

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

67

A58237

SHIELD

SHIELD - output shaft, (order A62391), Serial Range: -2363134

1шт.

68

A58195

STUD

STUD - 5/8" N.C. x 3-1/2"

2шт.

69

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

70

25-1010

NUT,5/8"-11, G5

NUT, 5/8"-11, G5

2шт.

71

A58194

STUD - 1/2" N.C. x 3-1/8"

2шт.

72

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

2шт.

73

25-108

NUT,1/2"-13, G5

NUT - 1/2" N.C. hex.

2шт.
