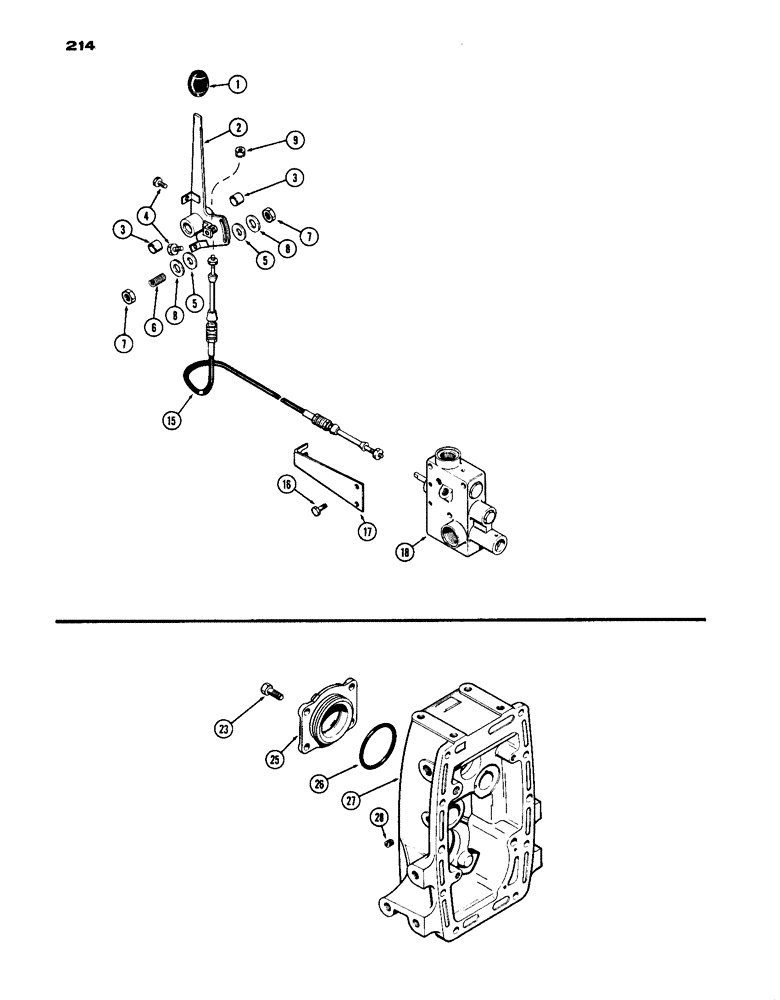

Запчасти Case IH 770 (214) - P.T.O. CONTROL LINKAGE (06) - POWER TRAIN

1

A65699

KNOB

- P.T.O. hand lever (Replaces A23885 &A62078)

1шт.

2

A61072

LEVER

ASSY. - P.T.O. hand, with bushing (Replaces A59460), Includes: Ref. 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

BUSHIGN - P.T.O. hand lever

2шт.

4

A59463

BOLT

- P.T.O. hand lever stop (1/4 x 5/8" Nylon)

2шт.

5

A61069

DISC

- friction (25/64 x 1-1/4 x 1/8") (Replaces A59432)

2шт.

6

A26546

SPRING

- friction disc, P.T.O. hand lever

1шт.

7

131-1306

JAM NUT,Jam, 3/8"-16

NUT - hex., friction disc (3/8" N.C. top face lock)

2шт.

8

195-2035

WASHER,7/16" x 1 1/4" x .083"

- (7/16 x 1-1/4 x 14 ga.)

2шт.

9

193-1000

NUT,Keps, w/LW,#10-32

- Keps (#10-32 hex. w/ext. tooth washer)

1шт.

15

A59466

CABLE

- P.T.O. control

1шт.

16

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

Bracket to valve body Hex, 1/4"-20 x 1/2", G5, Full Thd

2шт.

17

A60267

BRACKET

- P.T.O. control cable

1шт.

18

A60270

VALVE

ASSY. - "Case" flow divider & P.T.O. control (See Fig. 238 For Repairs)

1шт.

23

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

Cover to hsg., housing used w/o PTO Hex, 5/8"-11 x 1 1/2", G5, Full Thd

2шт.

23

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Cover to housing, housing used w/o PTO Hex, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

25

A58193

COVER - output shaft opening, housing used w/o P.T.O.

1шт.

26

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - output shaft opening cover (4 x 4-1/4 x 1/8"), housing used w/o P.T.O.

1шт.

27

NSS

NOT SOLD SEPARAT

HOUSING - P.T.O. & hyd. pump (Order A59028), used w/o

1шт.

28

221-841

PLUG

- pipe, hsg., R.H. side (1/4" hex. sckt. hd.), housing used w/o P.T.O.

1шт.
