(167C) - TRANS. CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S. N. 2366001

Запчасти Case IH 770 (167C) - TRANS. CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S. N. 2366001 (06) - POWER TRAIN

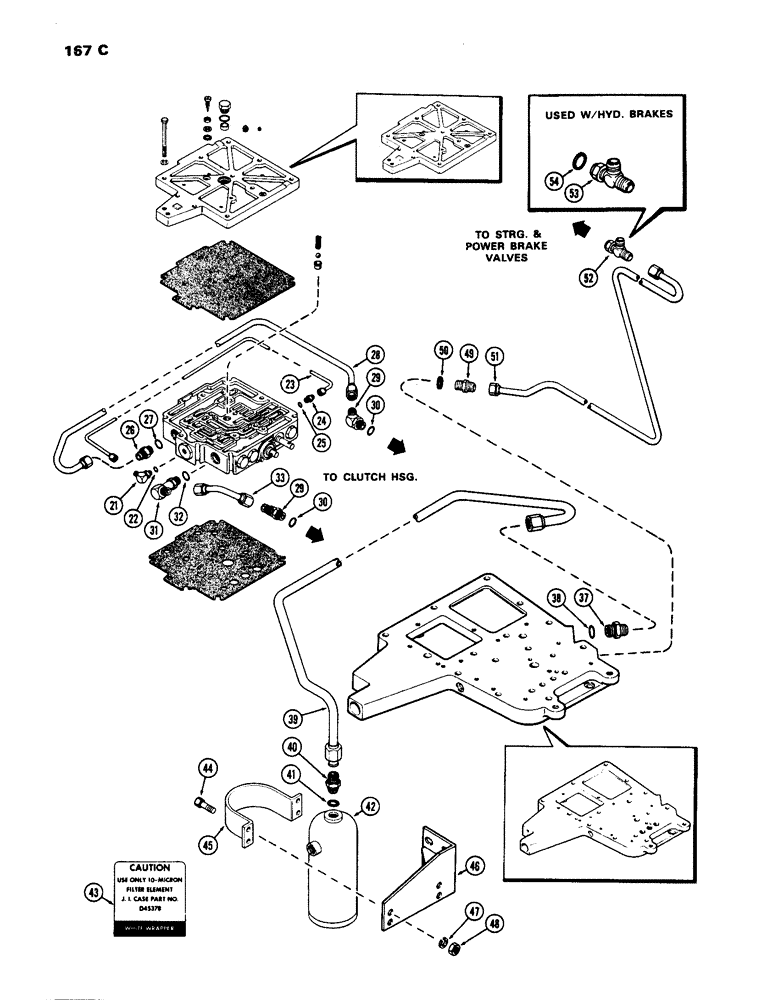

Схема запчастей Case IH 770 - (167C) - TRANS. CONTROL VALVE, COVERS, GASKETS & TUBES, POWER SHIFT, USED PRIOR TO TRANS. S. N. 2366001 (06) - POWER TRAIN
28
47
52
32
45
37
50
21
44
42
22
38
29
23
46
51
53
25
27
30
30
54
48
29
26
49
24
43
41
31
39
33
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

21

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

ASSY. - 90 deg. adjustable, (1/4" tube O.D. x 7.16"), Includes: Ref. 22

1шт.

22

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

23

A60656

TUBE

- pilot, trans. control valve reverse lock-out

1шт.

24

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR ASSY. - 1/4" tube, 37 deg. flare with "O" ring, Incl. Ref. 25

1шт.

25

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

"O" RING - (1/4 x 23/64 x 5/64")

1шт.

26

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - (1/2" tube O.D. x 3/4" P.T.), Incl. Ref 27

1шт.

27

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

28

A60269

TUBE

- trans. control valve to clutch hsg.

1шт.

29

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 45 deg. adjustable (1/2 tube O.D.), Incl. Ref 30

2шт.

30

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

33

A62101

TUBE

- valve to clutch hsg. (Replaces A61054)

1шт.

31

A62102

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long

ASSY. - (1/2" tube O.D.), Includes: Ref. 32

1шт.

32

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

38

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

39

A60859

TUBE

- hyd. oil filter to trans. control valve

1шт.

37

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - (3/4" tube O.D. x 1-1/16" P.T.), Incl. Ref. 38

1шт.

41

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 56/64 x 1/8")

1шт.

42

A60766

SPROCKET

FILTER ASSY. - hyd. oil (See Fig. 168)

1шт.

40

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR ASSY. - (3/4" tube O.D. x 1-1/16" P.T.), Incl. Ref. 41

1шт.

43

321-1295

DECAL

- "Warning", trans. oil filter (White Wrapper)

1шт.

44

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

44

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd. (3/8 x 1-1/2" N.C.)

2шт.

45

A65004

CLAMP - hyd. oil filter to bracket (Replaces A60857)

1шт.

46

A60854

BRACKET - mounting, hyd. oil filter

1шт.

47

92-6

LOCK WASHER,3/8"

4шт.

48

25-106

NUT,3/8"-16, G5

- hex. (3/8" N.C.)

4шт.

49

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - w/"O" ring (1/2" tube O.D. x 3/4" P.T.), Incl. Ref 50

1шт.

51

A59923

TUBE - tee junction to trans. cover

1шт.

52

218-594

TEE,3/4"-16, 37 Degree

- junction (1/2" tube O.D.) (used w/power brakes)

1шт.

53

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - adjustable (1/2" tube O.D.) (used w/hyd. brakes), Includes: Ref. 54

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (3/4 x 15/16 x 3/32")

1шт.

50

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.
