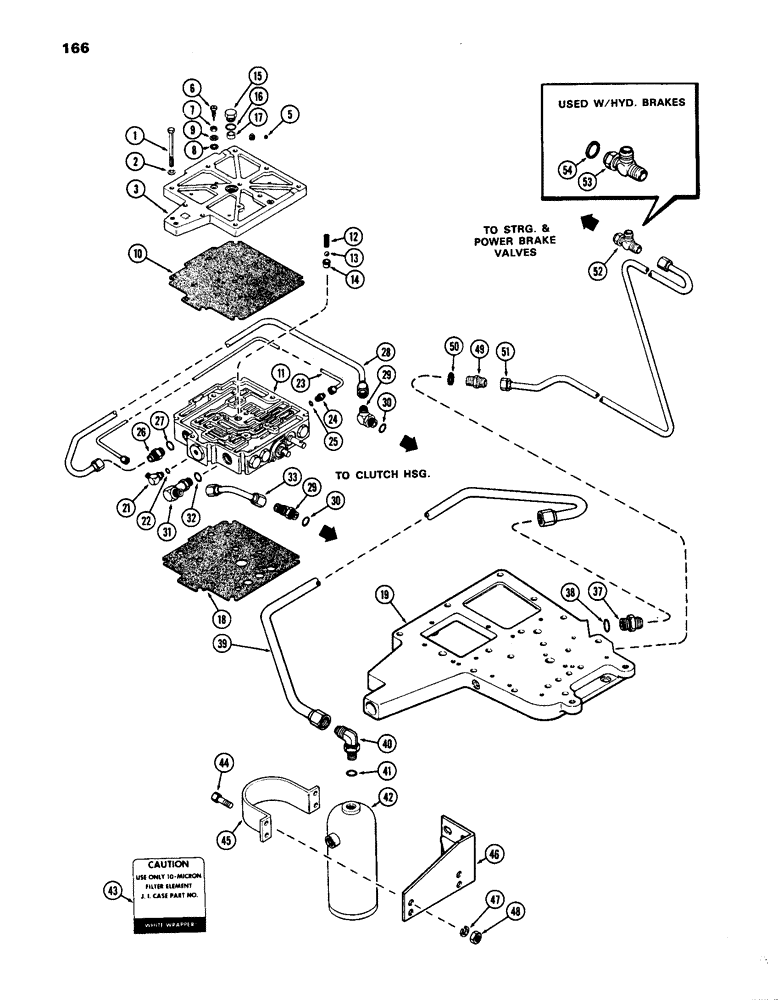

Запчасти Case IH 770 (166) - TRANSMISSION CONTROL VALVE, COVERS, GASKET AND TUBES, POWER SHIFT, 1ST USED TRANS. SER. NO. 2366001 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
13-656
BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5
- 3/8 x 3-1/2" N.C. hex.
10шт.
2
92-6
LOCK WASHER,3/8"
10шт.
3
A62105
COVER - control valve
1шт.
5
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, valve cover, 1/8" sq. hd.
5шт.
6
A59073
NEEDLE
- orifice
2шт.
7
25-154
JAM NUT,Jam, 1/4"-28, G5
- 1/4" N.F. hex, jam
2шт.
8
A59074
SEAL
- 1/4" thread
2шт.
10
A62270
GASKET
- control valve to valve cover
1шт.
11
A62634
CONTROL VALVE
VALVE ASSY. - trans. control (See Fig. 170)
1шт.
12
A61696
SPRING
- control valve detent ball
1шт.
13
211-12
BALL,7/16 Dia
- detent, 7/16" dia.
1шт.
14
A59062
SLEEVE
- valve body detent
1шт.
15
A62588
PLUG
- detent (replaces A62186)
1шт.
16
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - 1/2 x 21/32 x 3/32"
1шт.
17
A62107
SPACER
- detent
1шт.
18
A62637
GASKET
- control valve to trans. cover
1шт.
19
A62638
COVER - trans. front top
1шт.
21
218-5103
90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB
ASSY. - 90 deg. adjustable, Includes: Ref. 22
1шт.
22
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
"O" RING - 1/4 x 23/64 x 5/64"
1шт.
23
A60656
TUBE
- pilot, control valve reverse lock-out
1шт.
24
218-5089
HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB
CONNECTOR ASSY. - 3/8" P.T., 1/4" tube, Incl. Ref. 25
1шт.
25
218-5003
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
"O" RING - 1/4 x 23/64 x 5/64"
1шт.
26
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR Assy - 3/4" P.T., 1/2" tube, Incl. Ref 27
1шт.
28
A62069
HYDRAULIC SWIVEL
TUBE - control valve to clutch hsg.
1шт.
27
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - 1/2 x 21/32 x 3/32"
1шт.
29
218-5136
ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSY. - 45 deg. adjustable, Incl. Ref 30
2шт.
33
A62101
TUBE
- valve to clutch hsg.
1шт.
30
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - 1/2 x 21/32 x 3/32"
1шт.
31
A62102
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16 O-Ring, Long
ASSY. - 3/4" P.T., 1/2" tube, Includes: Ref. 32
1шт.
38
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - 3/4 x 59/64 x 1/8"
1шт.
32
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - 1/2 x 21/32 x 3/32"
1шт.
39
A61780
TUBE
- filter to control valve
1шт.
37
218-5064
HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
CONNECTOR ASSY. - 1-1/16" P.T., 3/4" tube, Incl. Ref. 38
1шт.
41
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - 3/4 x 59/64 x 1/8"
1шт.
42
A60766
SPROCKET
FILTER ASSY. - 10 micron (See Fig. 168)
1шт.
43
321-1762
DECAL
- "Warning" oil filter (White Wrapper)
1шт.
40
218-5108
ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB
ASSY. - 1-1/16" P.T., 3/4" tube, Incl. Ref. 41
1шт.
44
13-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd
2шт.
44
13-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- 3/8 x 1-1/2" N.C. hex.
2шт.
45
A65004
CLAMP - oil filter to bracket (Replaces A60857)
1шт.
46
A62650
BRACKET
- oil filter
1шт.
47
92-6
LOCK WASHER,3/8"
4шт.
48
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex.
4шт.
49
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
CONNECTOR Assy - 3/4" P.T., 1/2" tube, Incl. Ref 50
1шт.
51
A59923
TUBE - tee junction to trans. cover
1шт.
52
218-594
TEE,3/4"-16, 37 Degree
- junction, 1/2" tube (used w/power brakes)
1шт.
53
218-5242
TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
ASSY. - adjustable, 1/2" tube (used w/hyd. brakes), Includes: Ref. 54
1шт.
54
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - 3/4 x 15/16 x 3/32"
1шт.
50
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - 1/2 x 21/32 x 3/32"
1шт.
Выбрано товаров: 50
