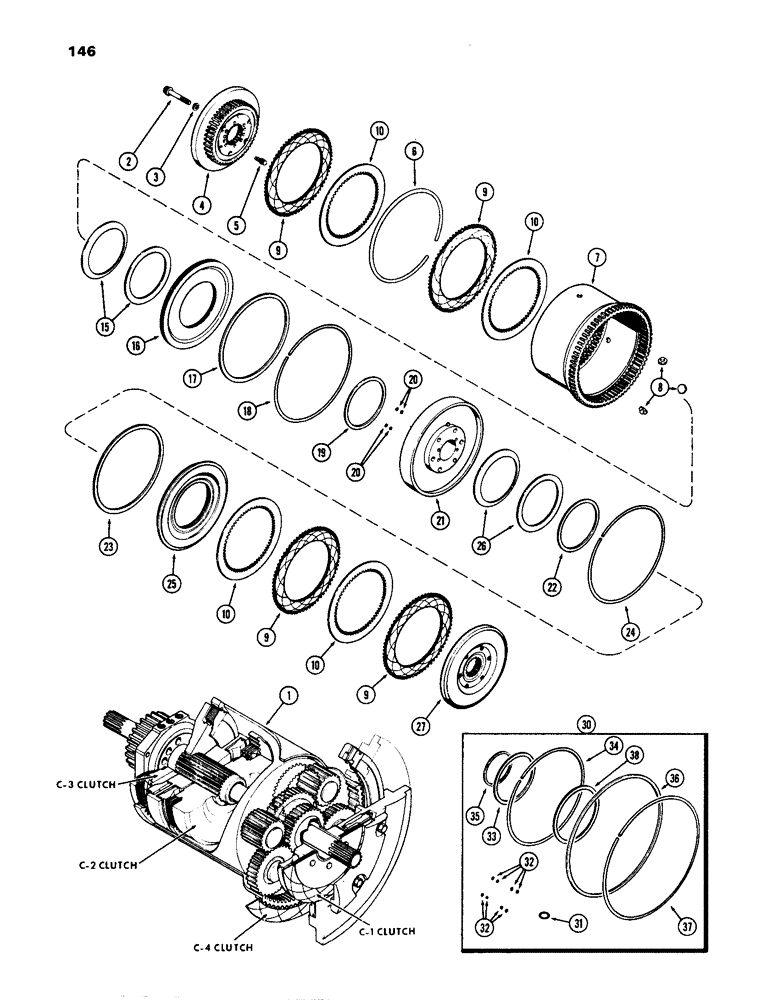

Запчасти Case IH 770 (146) - C-2 AND C-3 CLUTCH PACK, POWER SHIFT (06) - POWER TRAIN

1

A58944

CLUTCH ASSY. - powershift & planetary (Includes All Ref. On Figures 144 - 146), Includes: Ref. 2 - 26

1шт.

2

A58378

SCREW,3/8" - 16 x 2 1/2"

- Ferry cap, clutch hubs (3/8 x 2-1/2" N.C.)

6шт.

3

A63995

WASHER,10.8mm ID x 19.66mm OD x 0.86mm Thk

- 13/32 x 13/16 x 3/32" (Replaces A59238)

6шт.

4

A58385

HUB

- (C-3 Clutch)

1шт.

5

166-4

12 PT SCREW,Flg, 1/4" - 20 x 3/4", Gr 8

SCREW - oil distributor hub to clutch hub (1/4 x 3/4" N.C., 12 pt. flanged) (C-3 Clutch)

2шт.

6

A58079

RING,226.49mm ID x 233.35mm OD x 3.43mm Thk

SNAP RING - retaining plate to ring gear (C-2 & C-3 Clutch)

1шт.

7

A58412

GEAR

- ring, planetary

1шт.

8

A58413

BUTTON

BEARING - button, planetary ring gear

3шт.

9

A61981

PLATE

- sintered (C-2 & C-3 Clutch) (99 external teeth) (Replaces A58090)

4шт.

10

A58089

PLATE

- steel (C-2 & C-3 Clutch) (72 internal teeth)

4шт.

15

A58094

SPRING

- return (Belleville) (C-3 Clutch)

2шт.

Replace all four Belleville springs if some are found to be defective

1шт.

16

A58380

PISTON

- (C-3 Clutch)

1шт.

17

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston, (approx. 8" I.D.) (Teflon lip) (C-3 Clutch)

1шт.

18

A62642

ELECTRICAL WIRE

WIRE - (C-3 piston seal) (use w/A58381 seal)

1шт.

19

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston, (approx. 4-1/2" I.D.) (Teflon lip) (C-3 Clutch)

1шт.

20

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O" RING - oil sealing, hub (19/64 x 7/16 x 1/16") (C-2 & C-3 Clutch)

4шт.

21

A62121

CARRIER

- piston (C-2 and C-3 Clutch) (Replaces A58379)

1шт.

22

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal, piston (approx. 4-1/2" I.D.) (Teflon lip) (C-2 Clutch)

1шт.

23

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external, piston (approx. 8" I.D.) (Teflon lip) (C-2 Clutch)

1шт.

24

A62642

ELECTRICAL WIRE

WIRE - (C-2 piston seal) (use w/A58381 seal)

1шт.

24

A58380

PISTON

- (C-2 Clutch)

1шт.

26

A58094

SPRING

- return (Belleville) (C-2 Clutch)

2шт.

Replace all four Belleville springs if some are found to be defective

1шт.

27

A61294

HUB

- (C-2 Clutch)

1шт.

30

A42886

SEAL KIT

- seal, powershift clutch, Includes: Ref. 31 - 38

1шт.

31

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - oil tube, distributor cover (Replaces A18414)

6шт.

32

A58092

SEAL,Square, 0.066" Thk x 0.301" ID, -11

"O" RING - oil seal (C-2 & C-3 Clutch)

8шт.

33

A58381

SEAL,204.5mm ID x 210.95mm OD x 4.65mm Thk

- external (C-1 piston)

3шт.

34

A62642

ELECTRICAL WIRE

WIRE - seal lip (C-1, C-2 & C-3 clutch piston seal)

3шт.

35

A58382

SEAL,112.83mm ID x 119.79mm OD x 5.87mm Thk

- internal (C-1 Clutch)

3шт.

36

A58396

SEAL,318.39mm ID x 3.23mm Thk

- external (C-4 Clutch)

1шт.

37

A62643

ELECTRICAL WIRE

WIRE - (C-4 clutch piston seal)

1шт.

38

A58397

SEAL,227.13mm ID x 3.23mm Thk

- internal (C-4 clutch)

1шт.
