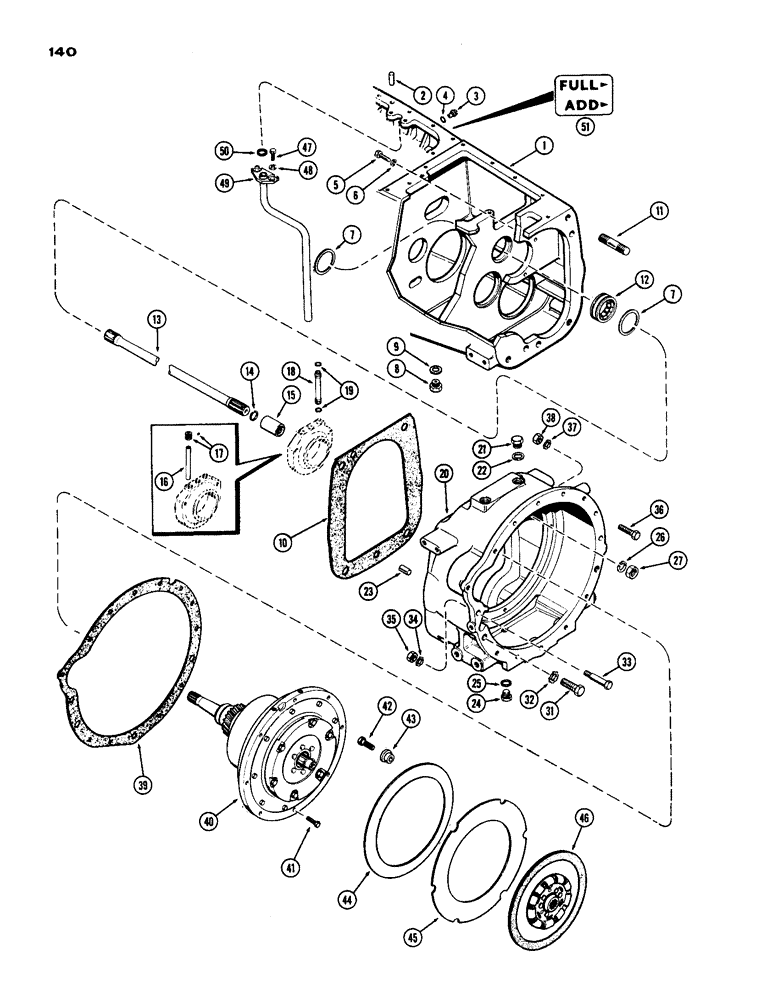

Запчасти Case IH 770 (140) - POWER SHIFT AND TRANSMISSION HOUSINGS, POWER SHIFT (06) - POWER TRAIN

1

A58418

CASE

HOUSING - trans., Serial Range: -8650101

1шт.

1

A61180

HOUSING

- trans., Start Serial: 8650101

1шт.

2

A7077

DOWEL

PIN - dowel, trans. hsg. to top cover (1/2 x 1-3/8")

2шт.

3

A58420

GAUGE

ASSY. - oil sight (glass), with "O" ring, Includes: Ref. 4

2шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - sight glass

1шт.

5

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex. hd. (3/8 x 1-1/2" N.C.)

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

A28153

RING

SNAP RING - external, planetary shaft, rear bearing

2шт.

8

A14280

PLUG

- drain, transmission housing, (3/4")

3шт.

9

A58608

GASKET

- drain plug, trans. housing (3/4 x 1 x 5/64")

3шт.

10

A58138

GASKET

- clutch housing to trans. housing

1шт.

11

A7073

STUD

- trans. housing to clutch housing (7/8" N.F. x 4")

4шт.

12

A28149

ROLLER BEARING,1.7311" ID x 2.8346" OD x 1.0625"

BEARING - roller, rear, planetary shaft

1шт.

13

A58414

SHAFT

- drive, rear, P.T.O.

1шт.

14

A32441

RING, SNAP

SNAP RING - internal, drive shaft, rear, P.T.O.

1шт.

15

A37662

COUPLING, BREAK AWAY

COUPLING - drive shaft, rear, P.T.O.

1шт.

16

A58102

TUBE - oil, Serial Range: -2338762

3шт.

17

A58050

PLUG

- oil tube, oil distributing cover (w/Nylok insert), Serial Range: -2338762

3шт.

18

A61677

TUBE

- oil, Start Serial: 2338762

3шт.

19

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" RING - (Replaces A18414), Start Serial: 2338762

6шт.

20

A58483

HOUSING - power shift

1шт.

21

214389

PLUG,3/4" - 16 ORB

Clutch hsg., Includes Ref. 22 Hex Hd, 3/4"-16 ORB

2шт.

22

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (1/2 x 11/16 x 3/32")

1шт.

23

A28269

PIN

- dowel, clutch hsg. to trans. hsg.

2шт.

24

A14280

PLUG

- drain (3/4"), clutch housing

2шт.

25

A58608

GASKET

- drain plug, clutch hsg. (3/4")

2шт.

26

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

4шт.

27

25-1114

NUT,7/8"-14, G5

- hex. (7/8" N.F.)

4шт.

31

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

Eng. to clutch hsg. Hex, 3/4"-10 x 2 1/4", G5

2шт.

32

A34651

LOCK WASHER

- lock (3/4" external type, heavy duty)

2шт.

33

A61040

STEP BOLT

BOLT - dowel, eng. to clutch hsg. (1/2 x 3" N.C. hex. hd.)

1шт.

33

A61041

STEP BOLT

BOLT - dowel, eng. to clutch hsg. (1/2 x 2-3/16" N.C. hex.)

1шт.

34

A34650

LOCK WASHER

- lock (1/2" external type, heavy duty)

2шт.

35

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

2шт.

36

13-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

Eng. to clutch housing Hex, 1/2"-13 x 1 5/8", G5

7шт.

36

13-830

BOLT,Hex, 1/2" - 13 x 1-7/8", Gr 5

Engine to clutch housing Hex, 1/2"-13 x 1 7/8", G5

3шт.

36

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex. hd., eng. to clutch hsg. (1/2 x 2-1/4" N.C.)

1шт.

37

A34650

LOCK WASHER

- lock (1/2" external tooth, heavy duty)

11шт.

38

25-108

NUT,1/2"-13, G5

- hex. (1/2" N.C.)

1шт.

39

A58139

GASKET

- clutch, Serial Range: hsg.-engine

1шт.

40

NSS

NOT SOLD SEPARAT

CLUTCH ASSY. - powershift & planetary (See Figs. 142 - 147)

1шт.

41

113-245

X

BOLT - hex. hd. (3/8 x 1-1/2" N.C.)

8шт.

42

113-401

BOLT

- hex. hd., retainer to flywheel (1/2 x 1-3/4" N.C.)

6шт.

43

A59133

RETAINER

- clutch spring, torque limiter

6шт.

44

A61000

SPRING

- torque limiter (Replaces A59132)

1шт.

If the clutch disc shows signs os slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

45

A58036

PLATE

- pressure, torque limiter

1шт.

If the clutch disc shows signs os slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

46

A58388

PLATE

ASSY. - 12" driven member

1шт.

If the clutch disc shows signs os slippage or wear, the clutch disc, pressure plate and clutch spring should all be replaced.

1шт.

47

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

48

92-6

LOCK WASHER,3/8"

2шт.

49

A58371

TUBE

- hyd. fluid return

1шт.

50

A32343

SEAL

- hyd. fluid return tube (47/64 x 1-13/64 x 13/64")

1шт.

51

321-1642

DECAL

- trans. oil level, Start Serial: 8656479

1шт.
