(136) - FRONT END WEIGHTS

Запчасти Case IH 770 (136) - FRONT END WEIGHTS (05) - STEERING

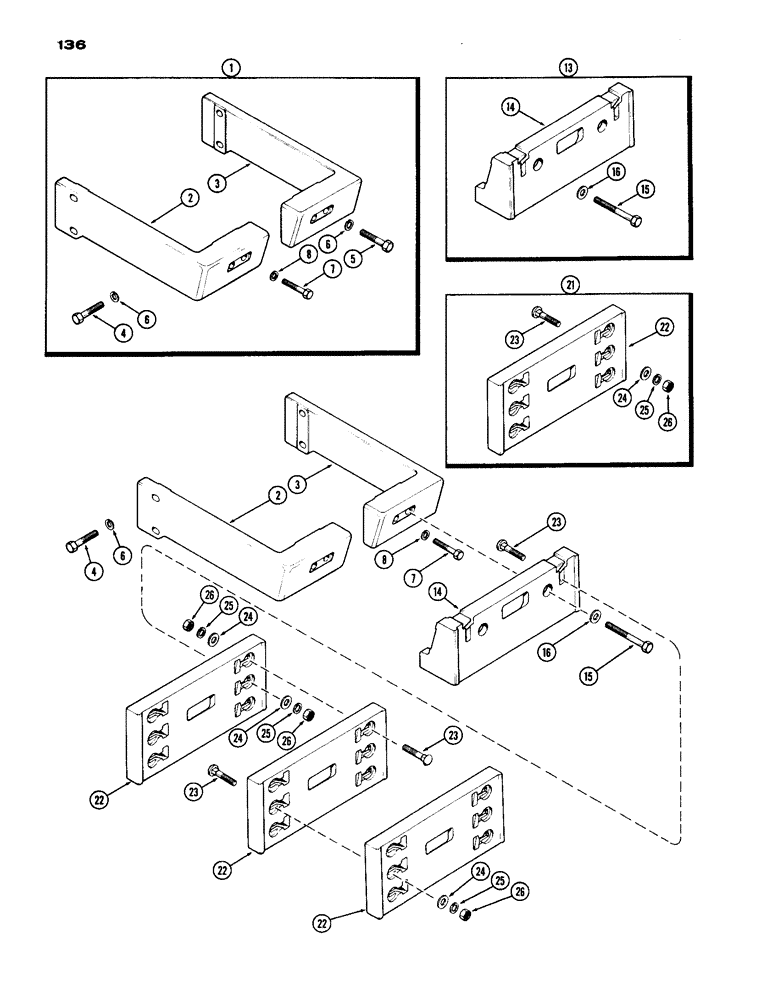

Схема запчастей Case IH 770 - (136) - FRONT END WEIGHTS (05) - STEERING
26
21
4
3
1
24
16
26
25
2
8
23
25
23
15
13
6
22
5
6
23
25
16
24
25
14
22
3
22
14
2
8
15
6
7
23
22
24
24
26
25
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A60536

WEIGHT

KIT - front end wrapper (Machinery Item), Includes: Ref. 2 - 8

1шт.

2

A59352

WEIGHT

- wrapper, front end (R.H.) (185 Lbs.) (Mach. Item)

1шт.

3

A59353

WEIGHT

- wrapper, front end (L.H.) (185 Lbs.) (Mach. Item)

1шт.

4

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4 x 2-3/4" N.C. hex.

4шт.

5

113-710

BOLT,Hex, 3/4" - 10 x 4", Gr 5

2шт.

6

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

6шт.

7

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8 x 4" N.C. hex.

2шт.

8

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

13

A60537

WEIGHT

KIT - adapter, front end wrapper (Mach. Item) (used w/A60536 weight kit) (one adapter only per tractor), Includes: Ref. 14 - 16

1шт.

14

A59354

ADAPTER

- wrapper weight (36 Lbs.) (Mach. Item)

1шт.

15

A59351

BOLT

- 3/4 x 7" N.C. hex.

2шт.

16

195-46

WASHER,3/4" x 1 3/4" x .148"

- 13/16 x 1-3/4 x 5/32"

2шт.

21

A60538

WEIGHT

KIT - additional, front end wrapper, (used w/A60537 weight kit) (Mach. Item)

1шт.

22

A59355

WEIGHT

- additional front end (100 Lbs.) (Mach. Item), Includes: Ref. 23 - 26

1шт.

23

111-708

CARRIAGE BOLT,Short NK, 3/4"-10 x 4", G2

BOLT - 3/4 x 4" N.C. carr.

2шт.

24

195-46

WASHER,3/4" x 1 3/4" x .148"

- 3/16 x 1-3/4 x 5/32"

2шт.

25

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

26

25-1012

NUT,3/4"-10, G5

2шт.
