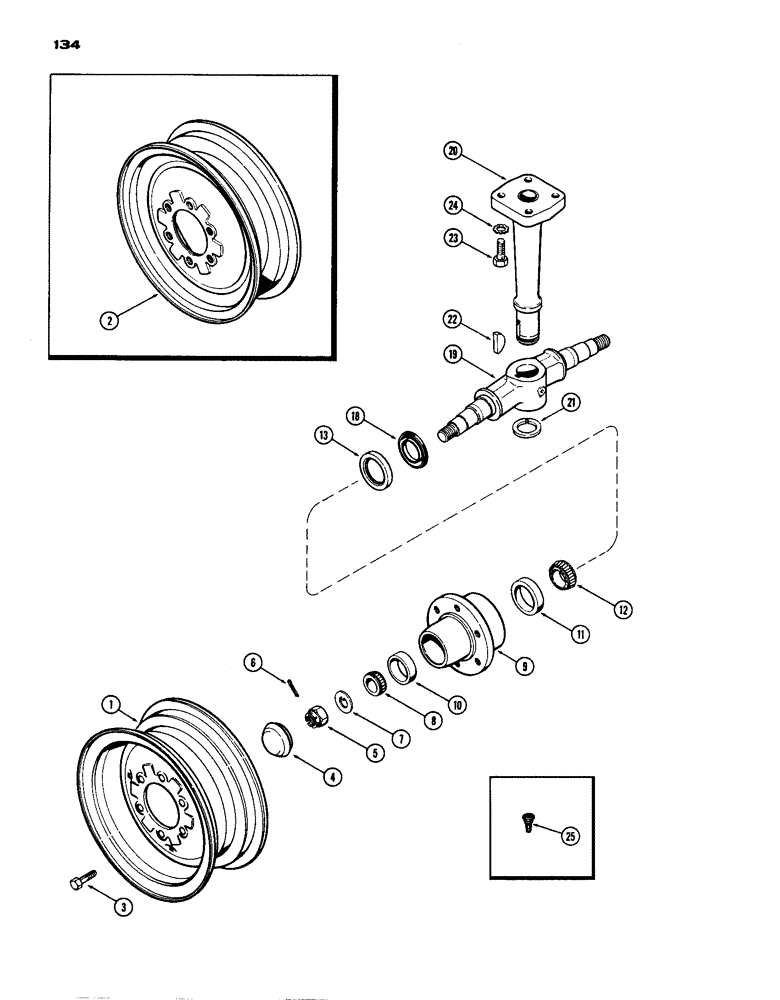

Запчасти Case IH 770 (134) - DUAL FRONT WHEELS (05) - STEERING

1

G57007

WHEEL

- front (1-1/8" offset) (takes 7.50 x 15 tire)

2шт.

2

A29050

WHEEL

- front (2-1/4" offset) (takes 6.00 x 16 tire)

2шт.

3

B18264

WHEEL BOLT

BOLT - wheel to hub (9/16"-18 x 1-3/32")

12шт.

4

A29425

CAP

- hub, front wheel

2шт.

5

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex., wheel spindle (1-1/8" N.F. thick, slotted)

2шт.

6

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), , Wheel spindle 3/16" x 1 3/4"

2шт.

7

A26789

BEARING WASHER

WASHER - front wheel spindle

2шт.

8

A29465

ROLLER BEARING,34.938 mm ID x 24.684 mm

CONE - outer bearing, front wheel (1-3/8" I.D.)

2шт.

9

A57338

HUB ASSY. - dual front wheel

2шт.

10

A27631

CUP

- front wheel outer bearing (2-7/8" O.D.)

1шт.

11

A29062

ROLLER BEARING,82.956 mm OD x 19.101 mm

CUP - front wheel inner bearing (3-17/64" O.D.)

1шт.

12

A29063

ROLLER BEARING,44.463 mm ID x 25.476 mm

CONE - front wheel inner bearing (1-3/4" I.D.)

2шт.

A57250

OIL SEAL

KIT - oil seal & retainer (Not Illust.), Includes: Ref. 13 and 18

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - oil retainer, outer, front wheel (Order A57250)

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - oil retainer, inner, front wheel (Order A57250)

1шт.

19

A57258

SPINDLE

- dual front wheel

1шт.

20

A32184

PEDESTAL - dual front wheel

1шт.

21

A28217

SNAP RING - retaining, dual front wheel spindle

1шт.

22

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - Woodruff (#29) (3/8 x 2-1/8")

1шт.

23

114-622

X

BOLT - hex. hd., pedestal (5/8 x 2" N.F.) (Grade 8)

4шт.

24

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

25

A38261

VALVE

- rim, tubeless tire

1шт.
