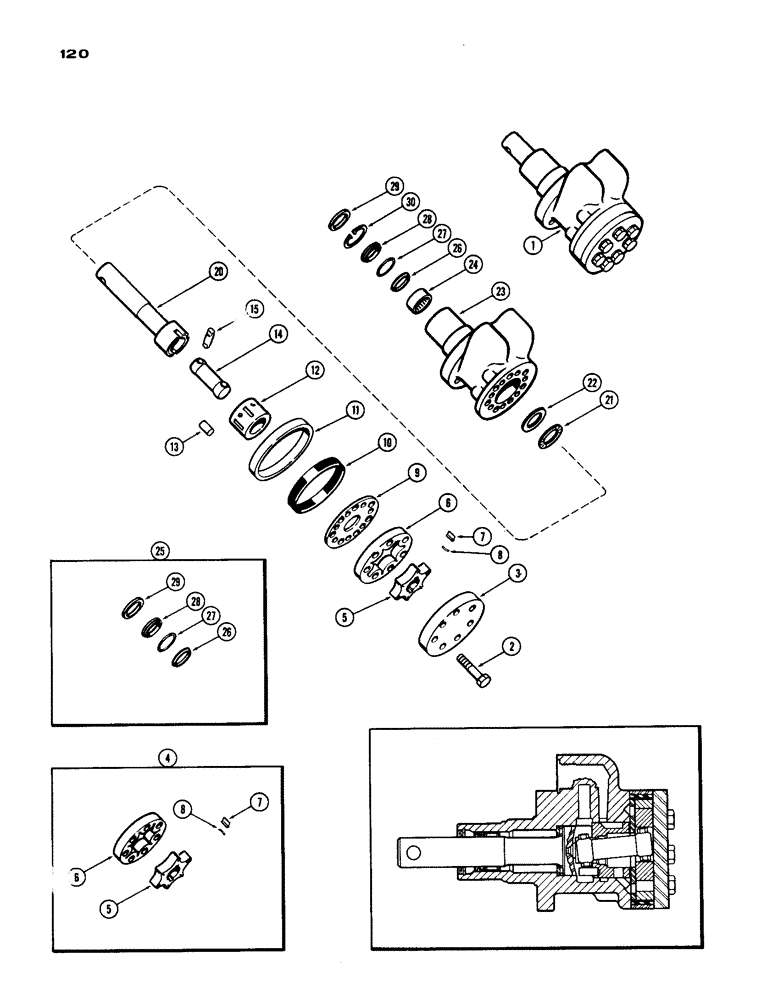

Запчасти Case IH 770 (120) - A60202 STEERING HAND PUMP (05) - STEERING

1

A60202

PUMP ASSY. - steering, hand pump (includes ref. 2 - 15 and 20 - 30)

1шт.

2

28-928

BOLT,Hex, 9/16" - 18 x 1-3/4", Gr 8

- pump end cover (Replaces F19642)

7шт.

3

F19641

COVER - pump end

1шт.

4

A43545

ROTOR

SET - pump (Replaces A42214) (includes ref. 5 - 8)

1шт.

5

NSS

NOT SOLD SEPARAT

ROTOR - pump

1шт.

6

NSS

NOT SOLD SEPARAT

STATOR - pump

1шт.

7

NSS

NOT SOLD SEPARAT

VANE - pump rotor

6шт.

8

A42219

SPRING

- retainer, pump vane sealing

6шт.

9

A42206

SPACER

- pump rotor

1шт.

10

F19640

SEAL

- pump rotor

1шт.

11

F19639

RETAINER

- seal, pump rotor

1шт.

12

NSS

NOT SOLD SEPARAT

COMMUTATOR - pump body

1шт.

13

F19631

PIN

- pump commutator

1шт.

14

F19635

LINK

- pump drive

1шт.

15

F19636

PIN

- pump link

2шт.

20

F12500

SHAFT - pump drive

1шт.

21

F19633

NEEDLE BEARING,22.27mm ID x 36.24mm OD x 1.98mm W

BEARING - needle thrust, pump shaft

1шт.

22

F19634

BEARING WASHER

RACE - bearing, thrust, pump shaft

1шт.

23

A42213

BODY - pump with needle bearing

1шт.

24

A30588

NEEDLE BEARING,Needle, 22.23mm ID x 28.57mm OD x 12.7mm W

BEARING - needle, pump shaft to body

1шт.

25

A40624

SEAL

KIT - seal, steering hand pump (includes ref. 26 - 30)

1шт.

26

NSS

NOT SOLD SEPARAT

PACKING

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - back-up

1шт.

28

NSS

NOT SOLD SEPARAT

WASHER - spacer

1шт.

29

NSS

NOT SOLD SEPARAT

WASHER - felt

1шт.

30

A21145

SNAP RING,1.25, Int, #125

RING, snap, 1.25", Int, #125, spacer washer

1шт.
