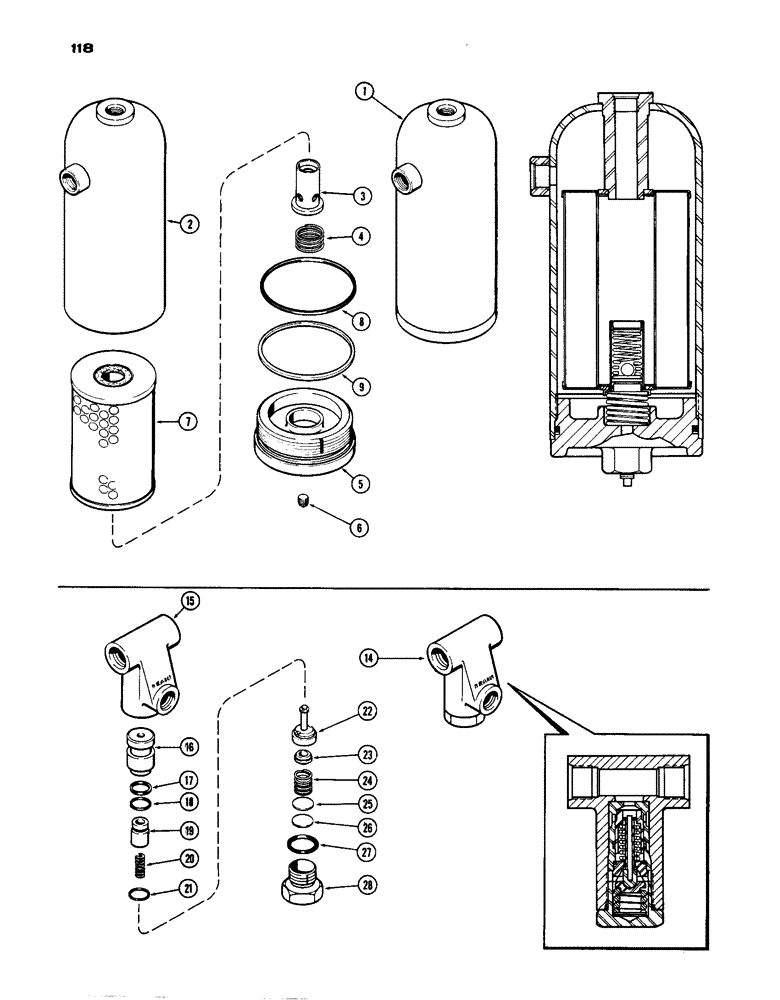

Запчасти Case IH 770 (118) - G32017 OIL FILTER (05) - STEERING

1

G32017

FILTER

ASSY. - steering - power brake system (25 Micron) (Replaces A60721) (includes ref. 2 - 9)

1шт.

2

G32018

HYD TUBE,7.89" L

TUBE - oil filter (Replaces A60727)

1шт.

3

D37207

VALVE

ASSY. - relief, oil filter

1шт.

4

D31212

SPRING

- retaining, oil filter

1шт.

5

A60765

CAP

- end, oil filter

1шт.

6

221-1011

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe (1/8" square head)

1шт.

A61234

HYDRAULIC OIL FILTER

KIT - oil filter element (not illust.) (includes ref. 7 - 9)

1шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Red Color Code) (Order A61234)

1шт.

8

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

"O" RING - sealing, oil filter cap to body (4 x 4-1/4 x 1/8")

1шт.

9

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

(Leather) Filter, Serial Range: cap-body

1шт.

14

A59905

VALVE

ASSY. - steering system relief, A59905 (includes ref. 15 - 28)

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - relief valve (Order A59905)

1шт.

16

NSS

NOT SOLD SEPARAT

SLEEVE - relief valve (Order A59905)

1шт.

17

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- back-up, relief valve sleeve, A59905

1шт.

Part of steering system relief valve kit P/N A42888

1шт.

18

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - relief valve sleeve (5/8 x 3/4 x 1/16"), A59905

1шт.

Part of steering system relief valve kit P/N A42888

1шт.

19

A57553

PISTON

- relief valve, A59905

1шт.

20

A34382

SPRING

- pilot piston (1" free length), A59905 relief valve

1шт.

21

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - pilot piston (5/8 x 3/4 x 1/16"), A59905 relief valve

1шт.

Part of steering system relief valve kit P/N A42888

1шт.

22

A57556

PISTON

ASSY. - pilot, A59905 relief valve

1шт.

23

A57558

RETAINER

- pilot spring, A59905 relief valve

1шт.

24

A34492

SPRING

- relief valve (23/32" free length), A59905

1шт.

25

A34391

SHIM,.0149" Thk

Relief spring, A59905 valve .0149" Thk

1шт.

26

A34390

SHIM,.0329" Thk

Relief spring, A59905 valve .0329" Thk

1шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - relief valve plug (3/4 x 59/64) x 1/8"), A59905

1шт.

Part of steering system relief valve kit P/N A42888

1шт.

28

A34392

PLUG

- relief valve, A59905

1шт.

A42888

KIT

- seal, steering system relief valve (includes ref. 17, 18, 21 and 27) (Not Illust.), A59905

1шт.
