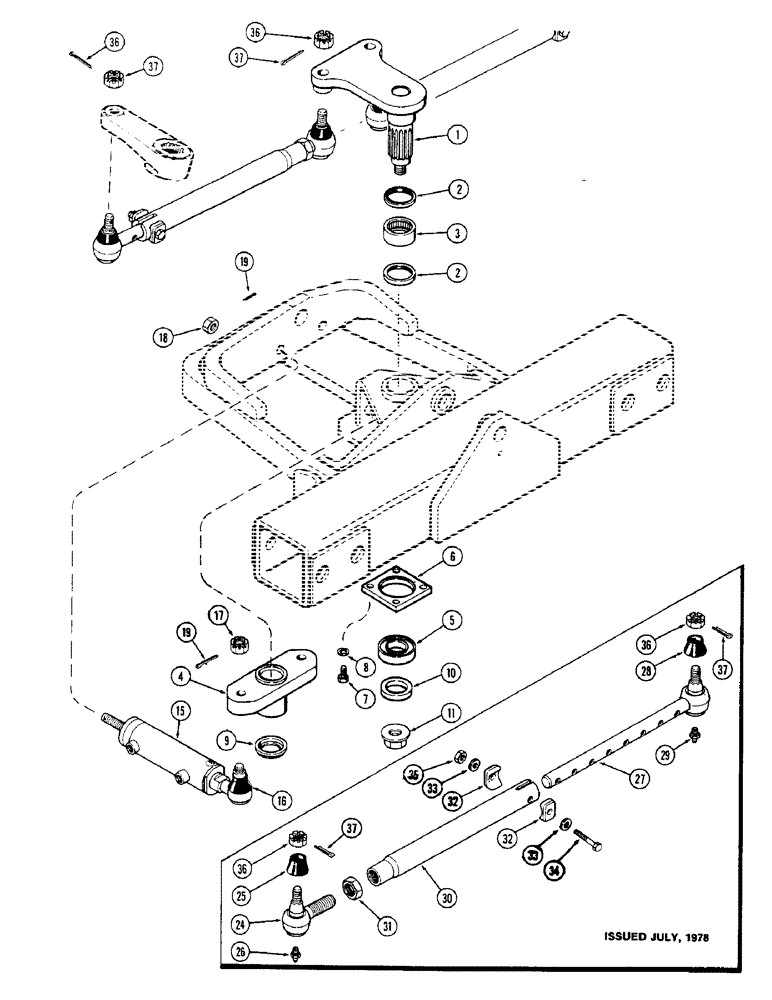

Запчасти Case IH 1570 (096) - CENTER STEERING ARM (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
A65613
ARM
upper, center steering
1шт.
2
A61414
OIL SEAL
oil, 2-1/8 x 2-1/2 x 3/16"
2шт.
3
A61415
NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W
BEARING needle
1шт.
4
A62231
ARM
lower, center steering
1шт.
5
A137711
BALL BEARING,1.5748" ID x 3.1496" OD x 0.7037"
BEARING ball, Replaces A61888
1шт.
6
A62212
PLATE
cap, bearing
1шт.
7
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
4шт.
8
92-6
LOCK WASHER,3/8"
4шт.
9
A65539
WASHER
center steering shaft
1шт.
10
195-2098
WASHER,15/16" x 2" x .238"
15/16 x 2 x 3/16"
1шт.
11
A65435
LOCK NUT
flanged, 7/8" NC
1шт.
15
G100675
CYLINDER
ASSY steering, See Figure 092
2шт.
16
A31186
BOOT
SEAL weather
2шт.
17
25-1310
SLOTTED NUT,5/8"-18, G5
NUT slotted, hex, 5/8" NF
2шт.
18
25-1112
NUT,3/4"-16, G5
hex, 3/4" NF
4шт.
19
132-49
COTTER PIN,1/8" x 1 1/8"
Pin, Split (Cotter), 1/8" x 1 1/8"
4шт.
24
A43376
JOINT
END ASSY inner, R.H. threads, tie rods, Includes Ref. 25 and 26
2шт.
25
A31186
BOOT
dust
1шт.
26
219-86
LUBE NIPPLE,1/8" NPTF
FITTING straight grease, 1/8" PT
1шт.
27
A43374
BALL JOINT
END ASSY outer, L.H. threads, tie rods, Includes Ref. 28 and 29
2шт.
28
A31186
BOOT
dust
1шт.
29
219-86
LUBE NIPPLE,1/8" NPTF
FITTING straight grease, 1/8" PT
1шт.
30
A137101
TUBE
intermediate, with 2 slots, tie rods
2шт.
31
A43379
JAM NUT
lock, tie rods
2шт.
32
A145857
CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk
tie rod tube, 1st used tractor Serial No. 8817747
4шт.
32
A43369
CLAMP
tie rod tube, Used prior to tractor Serial No. 8817747
4шт.
33
D26421
WASHER
clamp, Used with A43369, tie rods
4шт.
34
114-260
BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8
clamp, hex, 3/8 x 2-1/2" NF, tie rods
2шт.
35
131-1133
NUT,3/8"-24, GC
NUT hex, 3/8" NF, tie rods
2шт.
36
25-1310
SLOTTED NUT,5/8"-18, G5
NUT tie rod end, hex slotted, 5/8" NF
4шт.
37
132-49
COTTER PIN,1/8" x 1 1/8"
Pin, Split (Cotter), , Tie rods 1/8" x 1 1/8"
4шт.
Выбрано товаров: 31
