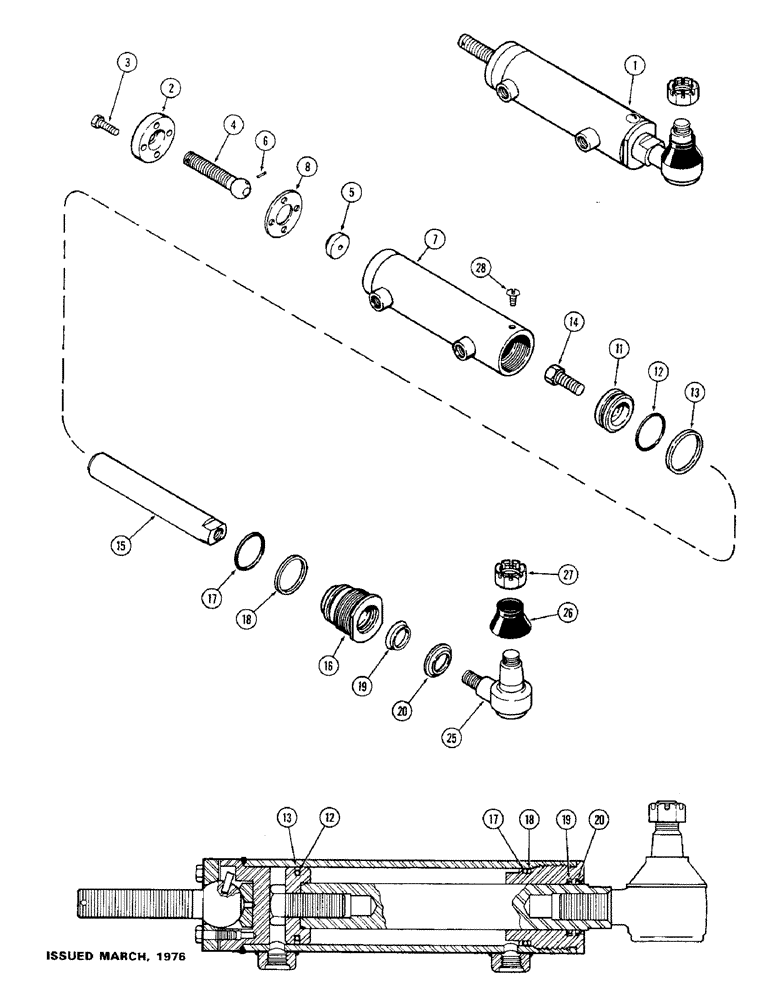

Запчасти Case IH 1570 (093A) - A62067 STEERING CYLINDER, USED PRIOR TO TRACTOR SERIAL NUMBER 8788437 (05) - STEERING

1

A62067

CYLINDER

ASSY steering, Includes Ref. 2 - 28

2шт.

2

A61439

PLATE

end

1шт.

3

14-414

BOLT,Hex, 1/4" - 28 x 7/8", Gr 5, Full Thd

hex, end plate, 1/4 x 7/8" NF

4шт.

4

A61431

STUD

ball

1шт.

5

A57918

SEAT

ball stud

1шт.

6

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, 3/16" x 5/8", Slotted

1шт.

7

NSS

NOT SOLD SEPARAT

TUBE cylinder body, Order A62067

1шт.

8

A61432

SHIM,.002" Thk

1шт.

8

A61433

SHIM,.003" Thk

1шт.

8

A61434

SHIM,.004" Thk

1шт.

8

A61435

SHIM,.006" Thk

1шт.

8

A61436

SHIM,.010" Thk

1шт.

8

A61437

SHIM,.025" Thk

1шт.

8

A61438

SHIM,.035" Thk

1шт.

11

A61428

PISTON ASSY.

PISTON steering cylinder

1шт.

12

A61429

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

piston, 1-11/16 x 1-7/8 x 3/32"

1шт.

Part of seal kit A43296

1шт.

13

A61430

SEALING RING

RING piston

1шт.

Part of seal kit A43296

1шт.

14

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

1шт.

15

A62068

ROD

piston

1шт.

16

A62071

SHAFT

GLAND

1шт.

17

A60212

O-RING

gland, outer, 1-15/16 x 2-1/8 x 3/32"

1шт.

Part of seal kit A43296

1шт.

18

A62070

RING

gland, back up

1шт.

Part of seal kit A43296

1шт.

19

A61425

SEAL

piston rod, 1-1/4 x 1-1/2 x 1/8"

1шт.

Part of seal kit A43296

1шт.

20

A61426

WIPER SEAL

WIPER piston rod

1шт.

Part of seal kit A43296

1шт.

25

A62069

HYDRAULIC SWIVEL

JOINT ASSY ball, Includes Ref. 26 and 27

1шт.

26

A31186

BOOT

SEAL weather, rubber boot

1шт.

27

25-1310

SLOTTED NUT,5/8"-18, G5

NUT hex. sltd., 5/8" NC

1шт.

28

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW rd. hd., gland lock, No. 8-32 x 1/4"

1шт.

A43296

KIT

seal, cylinder Includes Ref. 12, 13, 17, 18, 19 and 20

1шт.
