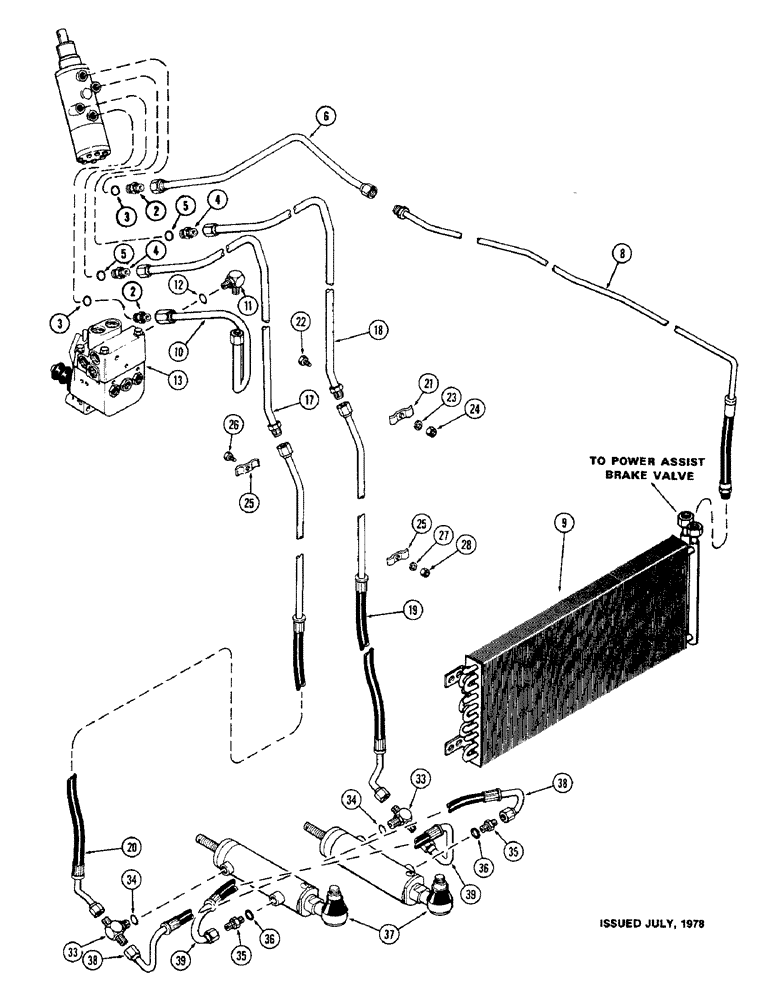

Запчасти Case IH 1570 (086) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

1

A141905

PUMP

ASSY steering control, See Figure 088

1шт.

2

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR ASSY, For inlet and outlet ports, Replaces A36663, Includes Ref. 3

2шт.

3

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1/2 x 5/8 x 1/16"

1шт.

4

D76050

HARDWARE

CONNECTOR ASSY restrictor, For R.H. and L.H. ports, Includes Ref. 5

2шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1/2 x 5/8 x 1/16"

1шт.

6

A63654

TUBE

steering return, Serial Range: pump-cooler

1шт.

8

A145523

TUBE ASSY.

TUBE oil cooler inlet, Replaces A139868

1шт.

9

A147528

COOLER

oil, transmission, See Figure 004

1шт.

10

A139385

TUBE

steering valve inlet

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Assy, brake valve outlet port, Includes Ref. 12 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

13

G101002

VALVE

ASSY power brake, See Figure 148

1шт.

17

A63550

TUBE

steering valve, R.H. turn

1шт.

18

A63551

TUBE

steering valve, L.H. turn

1шт.

19

A63552

HOSE ASSY.

HOSE L.H. steering cylinder

1шт.

20

A63553

HOSE

R.H. steering cylinder

1шт.

21

A63323

CLAMP

tube, steering, Serial Range: tube-firewall

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 x 1-1/4" NC

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" NC

1шт.

25

A63323

CLAMP

hose, R.H. to L.H. steering

2шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16" NC

1шт.

33

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

ASSY branch, Includes Ref. 34

2шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1/2 x 5/8 x 1/16"

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSY male, Incl. Ref. 36

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1/2 x 5/8 x 1/16

1шт.

37

G100675

CYLINDER

ASSY steering, See Figure 092

2шт.

38

A63644

HOSE

cylinder crossover, lower

1шт.

39

A63645

HOSE

cylinder crossover, upper

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 x 5/8 x 1/8

1шт.
