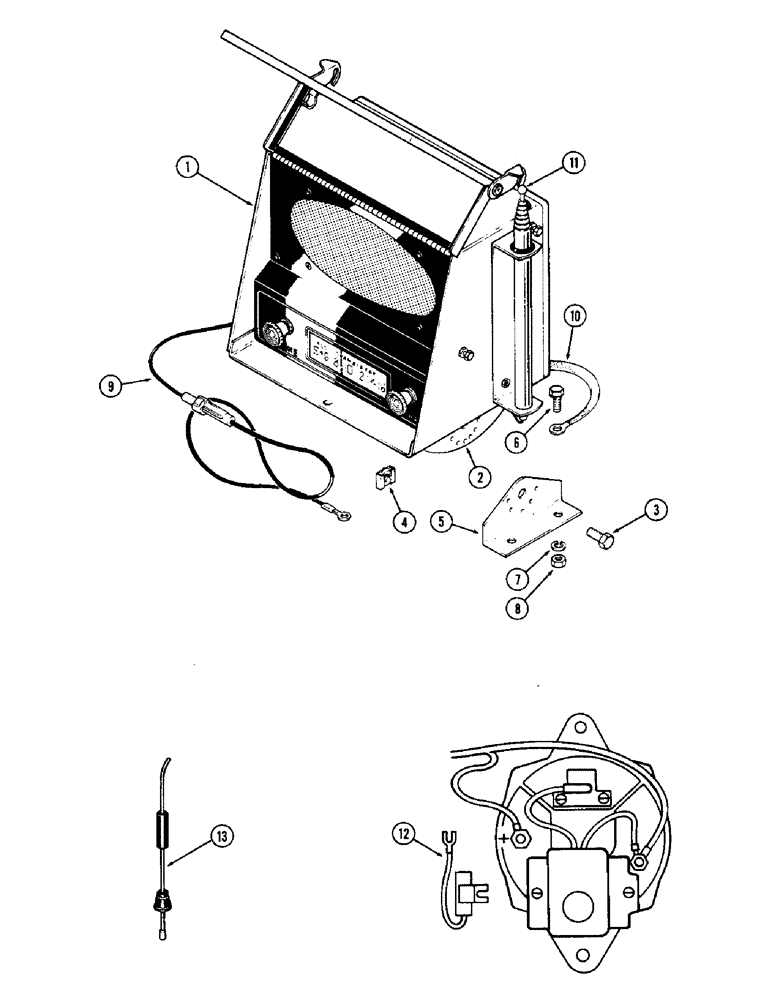

Запчасти Case IH 1570 (083A) - RADIO, FENDER MOUNTED (04) - ELECTRICAL SYSTEMS

A135620

RADIO

KIT fender mounted radio, AM-FM, Includes Ref. 1 - 13

1шт.

1

NSS

NOT SOLD SEPARAT

RADIO

1шт.

2

NSS

NOT SOLD SEPARAT

BRACKET mounting

1шт.

3

113-161

BOLT,Hex, 5/16" - 18 x 3/4", Gr 2

2шт.

4

131-613

NUT cage, 5/16" NC

2шт.

5

NSS

NOT SOLD SEPARAT

BRACKET mounting

2шт.

6

113-162

BOLT,Hex, 5/16" - 18 x 1", Gr 2

hex, 5/16 x 1" NC

4шт.

7

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

8

9635082

NUT,5/16" - 18, Gr 5

4шт.

9

NSS

NOT SOLD SEPARAT

WIRE ASSY lead, Includes fuse

1шт.

223-36

FUSE,2 Amp, Type 3AG

5 amps, 1-1/4" long

1шт.

10

NSS

NOT SOLD SEPARAT

STRAP ground

1шт.

11

NSS

NOT SOLD SEPARAT

ANTENNA

1шт.

12

NSS

NOT SOLD SEPARAT

CAPACITOR alternator

1шт.

13

NSS

NOT SOLD SEPARAT

SUPRESSOR distributor, Spark ignition

1шт.
