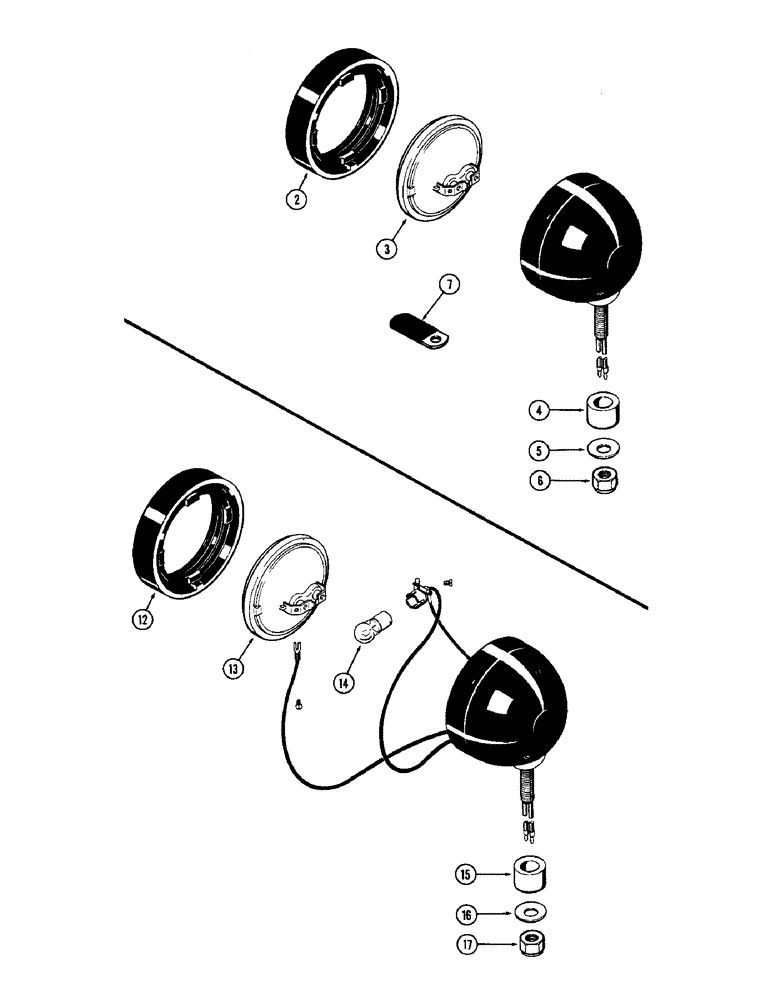

Запчасти Case IH 1570 (082) - REAR FLOOD LAMP (04) - ELECTRICAL SYSTEMS
2
7
15
17
3
6
16
13
4
12
5
14
№
Артикул
Название
Примечание
Количество
A63823
LAMP
ATTACHMENT rear flood lamp, R.H., Includes Ref. 2 - 6
1шт.
A63822
HEADLIGHT
LAMP flood adjustable, Inlcudes Ref. 2, 3 and 4
1шт.
2
A25213
RETAINER
sealed beam
1шт.
3
A43639
LAMP
BULB sealed beam
1шт.
4
D37048
BUSHING
pivot, lamp mounting
1шт.
5
D37049
WASHER
wave, tail lamp mounting
1шт.
6
129-125
NUT,1/2"-20, G5
1шт.
7
A22880
CLIP
fender harness to lamp stud on L.H. side
1шт.
A59703
LAMP
rear flood and tail, Inlcudes Ref. 12 - 15
1шт.
12
A25213
RETAINER
sealed beam
1шт.
13
A42295
BULB
sealed beam
1шт.
14
B50223
BULB
lamp
1шт.
15
D37048
BUSHING
pivot, lamp mounting
1шт.
16
D37049
WASHER
wave, tail lamp moutning, rear flood
1шт.
17
129-125
NUT,1/2"-20, G5
Rear flood and tail lamp 1/2"-20, G5
1шт.
Выбрано товаров: 15
