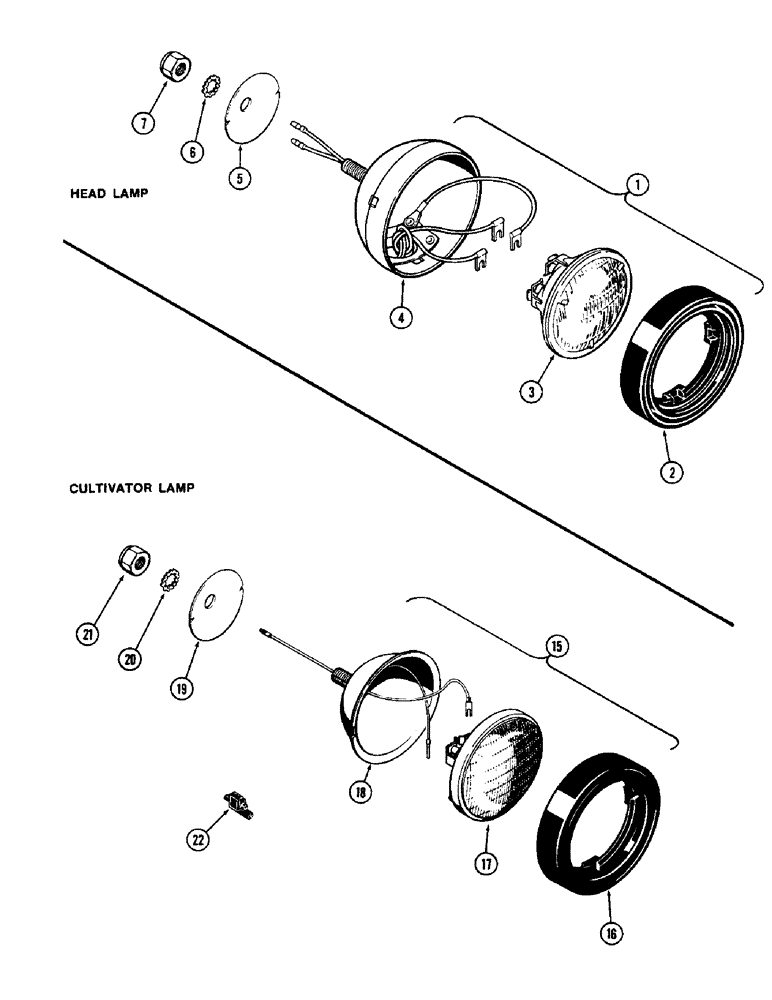

Запчасти Case IH 1570 (080) - HEADLAMP (04) - ELECTRICAL SYSTEMS

1

A64498

LAMP

front head driving, Includes Ref. 2, 3 and 4

2шт.

2

A25213

RETAINER

sealed beam

1шт.

3

A43712

LAMP

head, sealed beam, No. 4457

1шт.

4

NSS

NOT SOLD SEPARAT

BODY AND WIRE ASSY, Order A64498

1шт.

5

A59702

RETAINER

head lamp

2шт.

6

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

7

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

A61753

ATTACHMENT

lamp, cultivator, Inlcudes Ref. 15 - 22

1шт.

15

A59723

LAMP

front cultivator, Includes Ref. 16, 17 and 18

2шт.

16

A25213

RETAINER

sealed beam

1шт.

17

A42294

SEALED BEAM UNIT

BULB sealed beam

1шт.

18

NSS

NOT SOLD SEPARAT

BODY AND WIRE ASSY, Order A59723

1шт.

19

A59702

RETAINER

front cultivator lamp

2шт.

20

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

21

129-105

NUT,Hex, 1/2" - 13, Gr 5

2шт.

22

A62556

CONNECTOR, ELEC

CONNECTOR splice

2шт.
