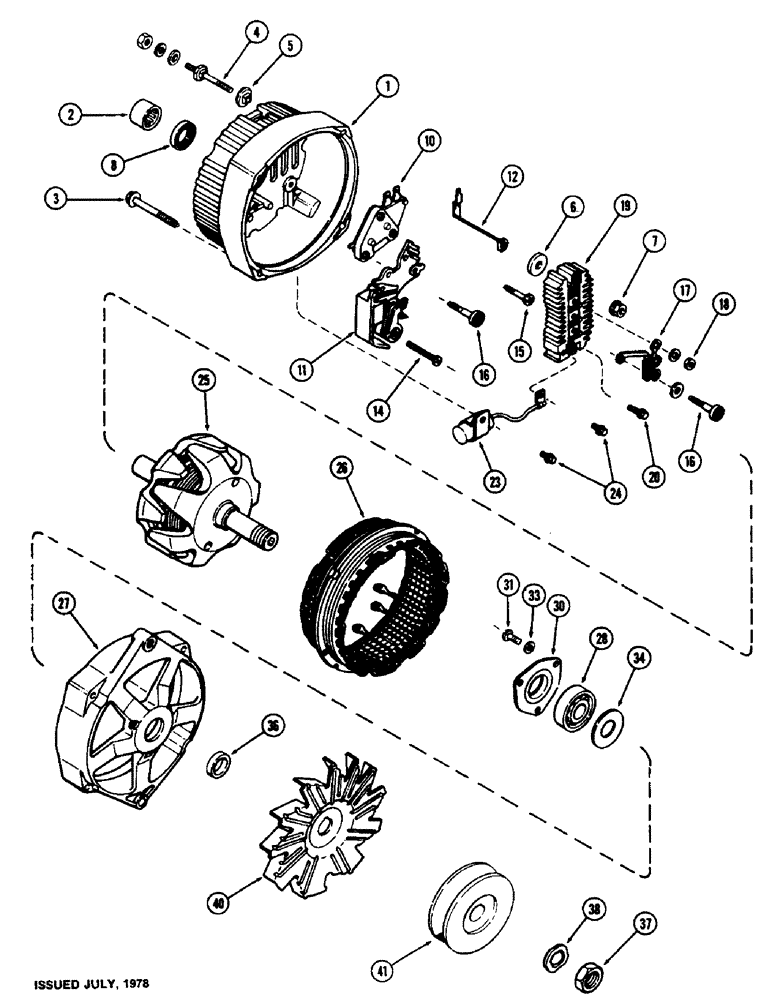

Запчасти Case IH 1570 (077A) - A147240 ALTERNATOR KIT, TO CONVERT A 61 AMP ALTERNATOR SYSTEM, TO A 72 AMP ALTERNATOR SYSTEM (04) - ELECTRICAL SYSTEMS

A147240

KIT

KIT alternator, Includes Ref. 1 - 41

1шт.

A47044

ALTERNATOR

ALTERNATOR ASSY, 72 amp, Delco-Remy No. 1102922, Includes Ref. 1 - 7

1шт.

103801A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 61 AMP Alternator

1шт.

103801A1C

CORE-ALTERNATOR

Return Number, 12 VOLT, 61 AMP Alternator

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47041

FRAME

FRAME ASSY slip ring end

1шт.

2

A47046

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.67"

BEARING roller

1шт.

3

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT thru hex washer head, No. 10-24 x 1-3/4"

4шт.

A45225

MULTIPOLE CONNECTOR

KIT battery terminal, Includes Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

STUD terminal

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER insulating

1шт.

7

NSS

NOT SOLD SEPARAT

NUT terminal

2шт.

8

A43693

SEAL

SEAL oil, slip ring end

1шт.

10

A45213

REGULATOR

REGULATOR ASSY voltage

1шт.

11

A47042

HOLDER

HOLDER ASSY, Includes brushes

1шт.

12

A47045

TERMINAL CONNECTOR

TERMINAL relay

1шт.

14

182-558

SCREW,Slotted Pan Hd, #8-32 x 1 1/4"

SCREW pivot pan head, No. 8-32 x 1-1/4"

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW ground, brush holder

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW insulated, brush holder

2шт.

17

A45219

DIODE ELEMENT

DIODE trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

BRIDGE rectifier

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW rectifier bridge, No. 8-32 x 1"

1шт.

23

A45017

CAPACITOR

CAPACITOR ASSY with bracket

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW capacitor, No. 8-32 x 3/8"

2шт.

25

A47047

ROTOR

ROTRO ASSY, Includes slip ring

1шт.

26

A47040

STATOR

STATOR ASSY

1шт.

27

A45229

FRAME

FRAME drive end

1шт.

28

A45230

BEARING ASSY

BEARING ball, drive end

1шт.

30

A44433

PLATE

PLATE bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW bearing plate, No. 10-24 x 3/8"

3шт.

33

195-512

WASHER,#10

WASHER, 3/16 x 7/16 x 1/16"

3шт.

34

A45232

WASHER

WASHER grease slinger

1шт.

36

A72047

COLLAR

COLLAR outer, rotor shaft

1шт.

37

A25546

NUT

NUT pulley and fan retaining

1шт.

38

R16171

SPRING WASHER

WASHER lock, pulley nut

1шт.

40

A43384

FAN

FAN ventilating

1шт.

41

A45231

PULLEY

PULLEY single groove, drive, - 3.221 +/- 0.025 diameter hub OD 1.12 hub ID after plating 0.669 - 0.6720"

1шт.
